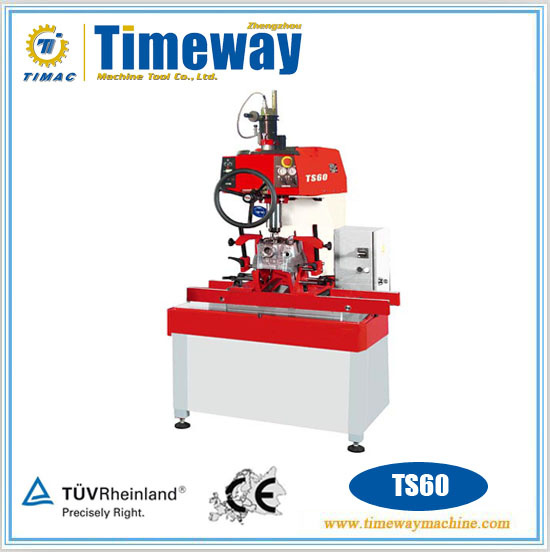

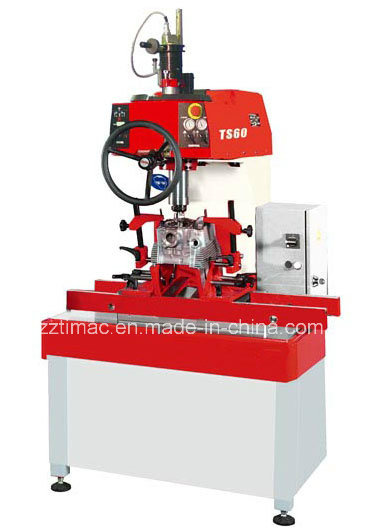

Valve Seat Boring Machine (TS60)
PART 1---Product Description
Features:High precision valve seat and valve guide cutting machine especially designed for multi-valve cylinder heads. Patented workhead with triple air-float patented centering system and built-in spindle motor. TS60 is high precision machine featuring the latest technology incorporating air -float automatic centering and motorspindle. Air-floated table fixture can make the movement of workpiece more flexible. Especially developed for the repair of small motorcycle and automotive multivalve cylinder heads.
* Fitted with the new tooling that decreases the cutting force by 30%, this machine will cut the hardest seats.
* Machine bed structure optimized by static and dynamic calculation, with a functional design.
* Machining capacity from 0.551" / 14mm to 2.36" / 60mm.
* Fully integrated spindle motor: infinitely variable spindle speed,0 to 1000 r.p.m., with sensorless Vector * * Flux Control in open loop (Extremely broad torque ratings from lowest r.p.m.).
* Rigid, low-inertia workhead. Easy to use due to an automatic reset system.
* Air-floated table fixture with 400mm lengthwise and 40mm crosswise travel.
Parameter :| Specification | Unit | TS60 |
| Max.length of the cylinder head | mm/inch | 600/23.62 |
| Max.width of the cylinder head | mm/inch | 400/15.75 |
| Max.height of the cylinder head | mm/inch | 450/15.72 |
| Crosswise tilting of workpiece | degree | +42 to -15 |
| Machining dia.(min.-max.) | mm | 16-60 |
| inch | 0.63-1.57 |
| Displacement of workhead | mm/inch | 8/0.32 |
| Travel of worktable |
|
|
| Lengthwise | mm/inch | 400/15.75 |
| Crosswise | mm/inch | 8/3.15 |
| Spindle |
|
|
| Max.spindle inclination | degree | 5 |
| Travel of spindle | mm/inch | 200/8 |
| Power of spindle | kw | 1.8 |
| Rotation speed of spindle | rpm | 0-1000 |
| Power supply |
| 380V-AC-3Ph-50Hz / 220V-AC-3Ph-60Hz |
|
| Max.air supply | bar/psi | 6/87 |
| Max.air flow | 1/min/CFM | 300/11 |
| Level of noise at 4000RPM | dba | 72 |
| Level of noise at 1200RPM | dba | 82 |
| Net weight (approx.) | kg/1bs | 600/1320 |
| Machine demension(L×W×H) | mm | 1400×900×2000 |
Standard Accessories:Bit holder, Tool Holder, Pilot, Bits, Tool setting device, Sharpener, Clamping system
Optional Accessories:
TD-ER20SW spanner wrench, TD-ER20SC spring collet, T3200 adaptor for morse,
T3100 precision chuck with MT2 shank, TD-ER20CN ER-32 clamping nut
