Valve Seat Boring Machine (TL120)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TL120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Name: |
Valve Seat Boring Machine ( Tl120) |
| After-Sales Service Provided: |
Engineers Service Machinery Overseas |
| Warranty Period: |
One Year After Delivery |
| Voltage: |
as Your Request |
| CNC Or Not: |
Normal |
| Color: |
as Your Request |
Product Description

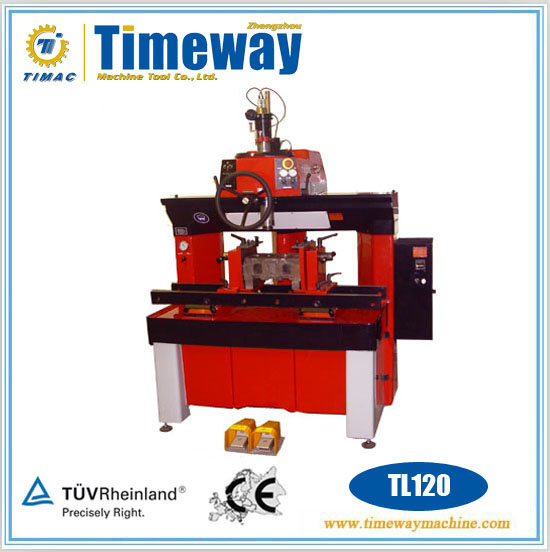

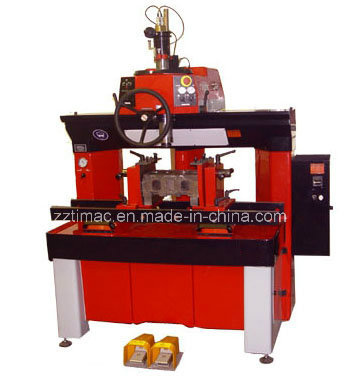

Valve Seat Boring Machine (TL120)
Features:The TL120 POWER offers the patented new Triple Air-Float Automatic Centering system and its high torque and powerful motorspindle. Very accurate, all-purpose machine to cut valve seats and ream valve guides. Extremely versatile this machine will cut valve seats from the smallest to the biggest diameter. Thanks to its lightweight floating system. It will machine cylinder heads of any size from micro-engines up to big stationary engines.
Featuring a machine bed structure optimized by static and dynamic calculation, with a modern, modular and functional design, it can accommodate either the tilting fixture (+42deg to -15deg) or the hydraulic 360deg roll-over fixture with lateral up-and-down system.The TL120 Power has a benefit of air floating table bars. Thus adding faster setup time and effortless shifting of any size cylinder head. This feature decreases operator fatigue and increases productivity.
*Machining capacity .55"/16mm to725"/120mm.
*Fitted with the new tooling that decreases the cutting force by 30%, this machine will cut the hardest
seats.
*Patented lightweight workhead: built-in spindle motor and triple air-float automatic entering system.
Minimal workhead inertia and maximal floatation for unmatched centering sensitivity.
*Build-In spindle motor. Broad torque ratings from lowest RPM.
*Fully integrated spindle motor: Infinitely variable spindle speed, 0 to 1000r.p.m., with sensorless Vector Flux Control in open loop (extremely broad torque ratings from lowest r.p.m.). Digital spindle rotation read out.
Parameter :| Specification | Unit | TL120 |
| Capacity |
|
| Max.length of the cylinder head | mm/inch | Unlimite |
| Max.width of the cylinder head | mm/inch | 500/19.7 |
| Max.height of the cylinder head | mm/inch | 450/17.7 |
| Crosswise workpiece tilting | degree | +45º-15º |
| Max.horizontal travel of table | mm/inch | 160/4.3 |
| Dia.of machining capacity | mm/inch | 16/200/0.6-4.7 |
| Work head displacement |
|
| Lengthwise | mm/inch | 990/39 |
| Crosswise | mm/inch | 40/1.6 |
| Sphere-cylinder travel | mm/inch | 9/0.4 |
| Spindle |
|
|
| Max.spindle incination | degree | 5 |
| Spindle travel | mm/inch | 200/8 |
| Power of the spindle | kw | 2.2 |
| Spindle rotation speed | rpm | 0-1000 |
| Alimentations |
|
| Electric supply |
| 380v/50Hz 3Ph or
220v/60Hz/3Ph |
| Air pressure | bar/psi | 6/87 |
| Max.air flow | 1/mm-CFM | 300/11 |
| Level of noise at 400RPM | dba | 72 |
| Level of noise at 1200RPM | dba | 82 |
| Net weight(approx.) | kg/1bs | 1500/3300 |
| Machine demension |
|
| Length | mm/inch | 1750/68.9 |
| Width | mm/inch | 1150/45.3 |
| Height | mm/inch | 2200/86.6 |
Standard Accessories:Tool holder, Bit holder, Carbide pilot, Carbide bit, Tool setting device, Sharpener,
Air-floating fixture.
