*** Vertical Boring Machine: T170S, and T170A, T200A, T250A;
*** Vertical Boring Milling Machine: TX170A, TX200A, TX250A;
*** Vertical Boring Milling Grinding Machine: TXM170A, TXM200A, TXM250A;
This serial machines can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors,as well as various high precision holes boring, and extra surface milling grinding of other workpieces.

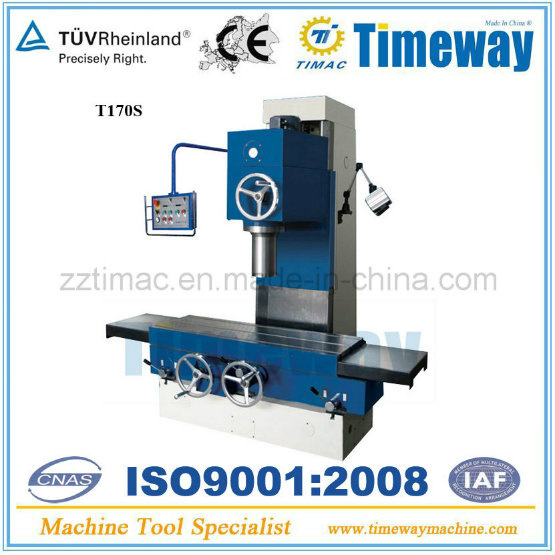

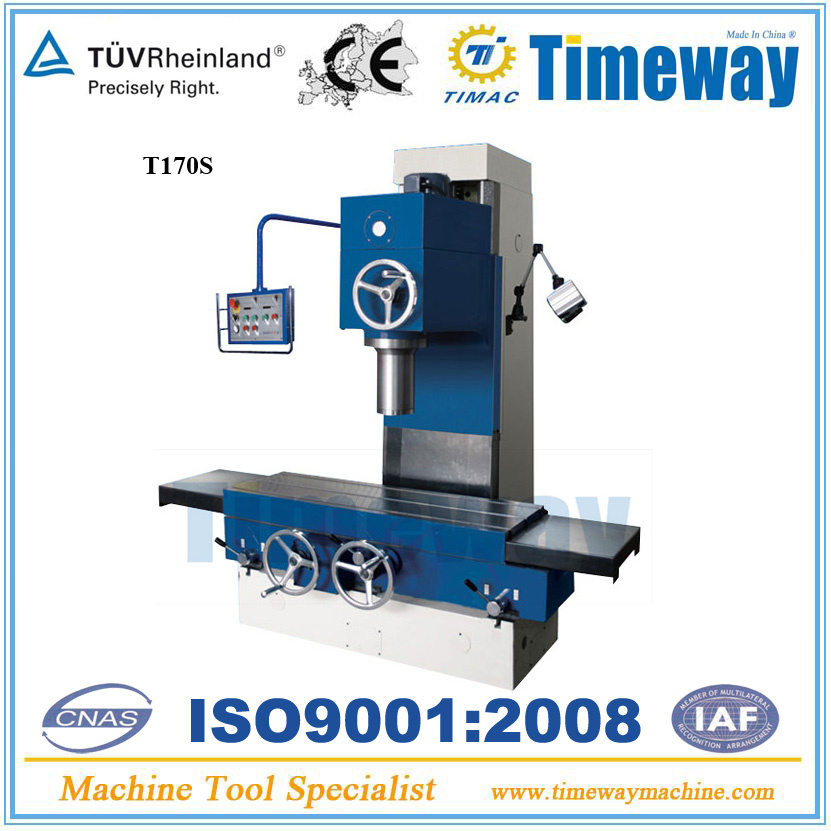

Vertical Fine Boring Machine T170S
Features:
1. Both rotation and feed of the spindle is realized by frquent and stepless speed adjustment, and there is character display on the digital readout.
The range of speed-adjustment is wide, which is very convenient to operate.
The spindle feed and rapid movement maybe converted rapidly by regulation resistance.
2. The handwheel controlling the vertical movement of spindle is designed on the carriage to make the operation convenient and easy.
3. The spindle is designed with fast centering device to improve the working efficiency.
4. The machine is designed with tool measuring device for the diameter of boring hole to make the operation convenient and improve the processing precision.
5. The worktable can move longitudinally.
6. The conversation between operator and machine can be realized by the digital readout on the machine.
7. Movement of each part of the machine can be controlled by PLC(Programmable Logical Controller), the machine realizes the automatic processing of boring hole and spindle returning as well as the boring parameter input.
| Specification | Unit | T170S | T170A | T200A | T250A | TX170A | TX200A | TX250A | TXM170A | TXM200A | TXM250A |
| Max. boring diameter | mm | Φ170 | Φ170 | Φ200 | Φ250 | Φ170 | Φ200 | Φ250 | Φ170 | Φ200 | Φ250 |
| Max. boring depth | mm | 400 | 400 | 500 | 500 | 400 | 500 | 500 | 400 | 500 | 500 |
| Max. grinding area | mm | - | - | - | 400x1000 |
| Max. milling area | mm | - | - | 400x1000 | 400x1000 |
| Max. drilling & reaming diameter | mm | Φ30 | Φ30 | Φ30 | Φ30 |
| Spindle speed | rpm | 80-860 | 120-860 | 120-860 | 120-1200 |
| Feeding of the spindle | mm/min | 14-810 | 14-900 | 14-900 | 14-900 |
| Rapid moving speed of the spindle | mm/min | 810 | 1000 | 1000 | 1000 |
| Spindle travel | mm | 500 | 700 | 700 | 700 |
| Distance between spindle end face and table | mm | 0-500 | 0-700 | 0-700 | 0-700 |
| Distance between spindle axis and carriage vertical plane | mm | 330 | 350 | 365 | 375 |
| Longitudinal feeding of work table | mm/min | - | - | 32-1350 | 32-1350 |
| Longitudinal rapid moving of work table | mm/min | - | - | 1350 | 1350 |
| Max. longitudinal travel of working table | mm | 1100 | 1500 | 1500 | 1500 |
| Max. cross travel of the working table | mm | 80 | 200 | 200 | 200 |
| Working table size (W×L) | mm | 400x1250 | 500x1250 | 500x1500 | 500x1250 | 500x1500 | 500x1250 | 500x1500 |
| Quantity of "T" Slot | qty. | 3 | 5 | - | - |
| Main motor | kw | 3 | 3 | 5.5 | 5.5 |
| Boring holes precision |
| H7 | H7 | H7 | H7 |
| Working accuracy | Roundness | mm | 0.005 | 0.005 | 0.005 | 0.005 |
| Cylidricity | 0.01/300 | 0.01/300 | 0.01/300 | 0.01/300 |
| Milling flatness | - | - | 0.10 | 0.10 |
| Grinding flatness | - | - | - | 0.08 |
| Working surface roughness | Boring | μm | Ra2.5 | Ra2.5 | Ra2.5 | Ra 2.5 |
| Milling | - | - | Ra3.2 | Ra 3.2 |
| Grinding | - | - | - | Ra 0.8 |
| Overall dimensions (L×W×H) | mm | 2100x1430x2010 | 2600x1630x2300 | 2600x1630x2300 | 2600x1630x2300 |
| Packing dimensions (L×W×H) | mm | 1820x1770x2190 | 2250x1900x2270 | 2250x1900x2280 | 2250x1900x2280 |
| N.W./G.W. | kg | 2500/2800 | 3300/3600 | 3500/3800 | 3300/3600 | 3500/3800 | 3300/3600 | 3500/3800 |
