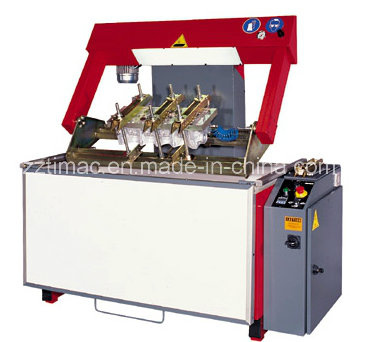

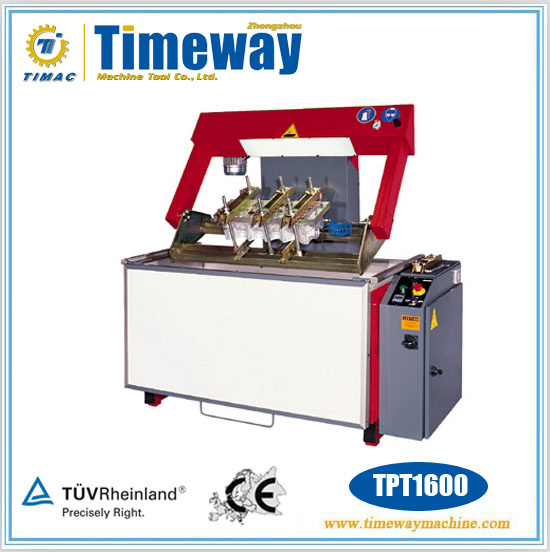

Cylinder Head and Block Pressure Tester
PART 1---Product Description

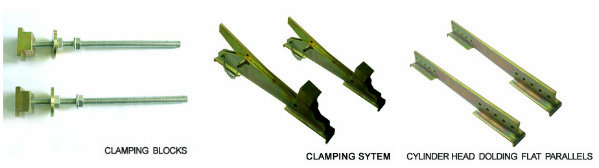

Features:Easy and efficient pressure test of cylinder head and cylinder block coolant circuits. Quick and easy clamping system allowing tests at a pressure of 4 to 5bar.* 360° Electric powered roll-over fixture.
* Hydraulic cradle lift for easy positioning of heavy cylinder heads.
* Stainless steel tank with heat barrier.
* Heating elements: two changeover 4500 Watts elements.
* Water level control.
* Low voltage: 24V operating control.
* Electronic adjustable thermostat.
* Heating programmer: daily or weekly.
Parameter :| Model | Unit | TPT1600 | TPT1600L | TPT1700L |
| Max.head capacity |
|
|
|
|
| Length | mm/inch | 1250/49 | 1350/53.15 | 1350/53.15 |
| Width | mm/inch | 400/15.74 | 425/16.73 | 460/18.11 |
| Height | mm/inch | 300/11.81 | 300/11.81 | 410/16.14 |
| Height elements | kw | 2×4.5 | 2×4.5 | 2×4.5 |
| Hydraulic hoist | kw | 0.75 | 0.75 | 0.75 |
| Gear-motor | kw | 0.25 | 0.25 | 0.25 |
| Rotationalspeed | Tr/min | 4 | 4 | 4 |
| Up and down travel time | mm/inch in 10 sec | 600/23.62 | 600/23.62 | 620/24.41 |
| Thermostat | ºC | 0-90 | 0-90 | 0-90 |
| Power supply |
| 3×220V-AC-60Hz /
3×380V-AC-50Hz | 3×220V-AC-60Hz /
3×380V-AC-50Hz | 3×220V-AC-60Hz /
3×380V-AC-50Hz |
|
| Net weight | kg/1bs | 600/1324 | 600/1324 | 650/1434 |
| Space requirements |
|
|
|
|
| Length | mm/inch | 2000/78.75 | 2100/82.68 | 2100/82.68 |
| Width | mm/inch | 1050/41.34 | 1050/41.34 | 1140/44.88 |
| Height | mm/inch | 1700/66.93 | 1700/67.00 | 1775/69.83 |
PART 2 ---Our Service
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the
machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer
(relative cost born by customer).
