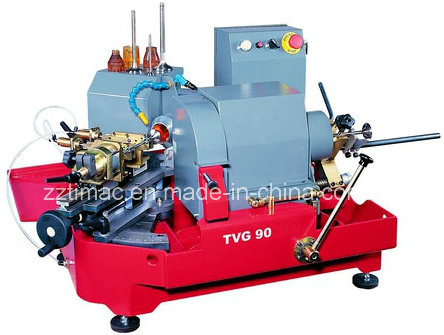

Valve Grinding Machine TVG90
PART 1---Product Description
Features:
High precision valve refacer for valve stems from 4 to 14mm / 0.16" to 0.55" variable speed valve rotation.
*Horizontal valve rotation through fire face
*Valve rotation speed according to valve head diameter from 120 to 750 rpm.
*Grinding wheel rotation speed 2850 rpm.
*Unmatched grinding and accuracy
Capacity:
- Valve stem diameters from 4 to 14 mm / 0.16" to 0.55".
- Valve head diameters up to 90 mm / 3.55"
*Valve seat angles from 10 to 54 degree.
*Grinding wheel of 15mm / 0.59" width, balance and driven by motor built into grinding
spindle
*Ergonomic control board.
*Built-in grinding wheel dresser. Parameter:
Specification |
Unit |
TVG90 |
Valve stem dia.(min-max) |
mm/inch |
4-14 / 0.16-0.55 |
Valve head dia.(min-max) |
mm/inch |
12-90 / 0.47-3.54 |
Valve length (min-max) |
mm/inch |
70-290 / 2.76-11.42 |
Angle grinding range |
degree |
10-54 |
Main wheel diameter |
mm/inch |
200 / 7.78 |
Cup wheel diameter |
mm/inch |
100 / 3.94 |
Main wheel width |
mm/inch |
15 / 0.59 |
Grinding wheel travel |
mm/inch |
90 / 3.54 |
Valve feed travel |
mm/inch |
90 / 3.54 |
Spindle motor |
|
|
Power |
W |
550 |
Speed |
rpm |
2850 |
Valve driving motor |
|
|
Power |
W |
180 |
Speed |
rpm |
120-750 |
Coolant motor |
|
|
Power |
W |
100 |
Power supply |
KVA-V-Hz |
1-230V/1ph-50/60Hz |
Max.air supply |
bar/psi |
max 6/87 |
Coolant tank |
L/US gal |
4/1 |
Space requirements |
|
|
Length |
mm/inch |
1050/41.3 |
Width |
mm/inch |
800/31.5 |
Height |
mm/inch |
560/22 |
Net weight approx. |
kg/1bs |
120/265 |
Standard Accessories:
HVR 90, 3 sets drive pads, Wheel clamping tool, Anti rotation stud
Optional Accessories:
Floor stand
