| Prod Model: |
C9370C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lathe: |
Brake Drum Lathe |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Delivery Time: |
60 Days or So |
| Voltage: |
as Your Request |
| Certification: |
CE |
| Type: |
Brake Lathe |
Product Description

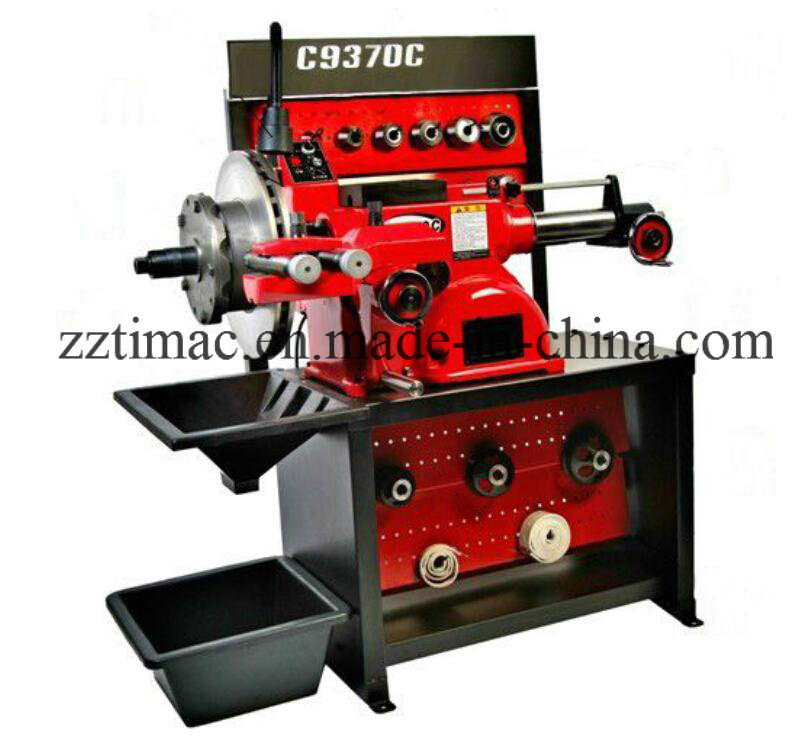

BRAKE LATHE C9370C
Features:
1. It uses precision electric DC servo motors design to meet the demanding requirement of industrial motion control.
2. The "Change Adapter" system eliminates the need for conventional bell clamps and cones and features built-in springs
ensure you don't lose them.
3. The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability.
4. Infinitely variable spindle and cross feed speed settings allow quick rough & precision finish cutting.
5. A convenient top storage tray means you can easy to take your favorite adapters and tools.
6. Separate motors on the drum and rotor feed can maximize the main motor's efficiency.
7. The variety of adapters lets the standard and composite rotors for foreign & domestic cars/light trucks.
8. Positive rake cutter tip angle provides for one pass finish virtually every time, which has the high efficiency.
| Specification | C9370C |
| Spindle Travel | 9.875" (251mm) |
| Rotor diameter | 7" -18" (180mm-457mm) |
| Drum diameter | 6" -28" (152mm-711mm) |
| Motor | 110V/220V/380V,50/60HZ |
| Spindle speed | 70, 88, 118 rpm |
| Rotor thickness | 4" (102mm) |
| Drum depth | 9.875" (251mm) |
| Shipping weight | 400 kg |
| Dimension (LxWxH) | 1100x1070x1140mm |
| NO. | Description | Qty | 1# | 2# | 3# |
| 1 | Double Taper Cone 1.34""X1.66"(34X42mm) | 1 | √ | √ | √ |
| 2 | Double Taper Cone 1.36"X1.69" (35X43mm) | 1 | √ | √ | √ |
| 3 | Double Taper Cone 1.72"X2.06" (44X52mm) | 1 | √ | √ | √ |
| 4 | Double Taper Cone 2.06"X2.44" (52X62mm) | 1 | √ | √ | √ |
| 5 | Double Taper Cone 2.45"X2.81" (62X71mm) | 1 | √ | √ | √ |
| 6 | Spacer (5,10,20,25.4,50.8,50.8mm) | 6 | √ | √ | √ |
| 7 | Open End Wrench 27-30mm | 1 | √ | √ | √ |
| 8 | Special Wrench | 1 | √ | √ | √ |
| 9 | Spring | 1 | √ | √ | √ |
| 10 | Silencing Belt for rotor and drum | 2 | √ | √ | √ |
| 11 | Double Taper Cone 2.84"X3.19"(72x81mm) | 1 |
| √ | √ |
| 12 | Double Taper Cone 3.19"X3.54"(81x90mm) | 1 |
| √ | √ |
| 13 | Chuck Adapter Set (5 PCS) | 1 |
|
| √ |
| 14 | Clamp 4.57" (116mm) | 2 | √ |
|
|
| 15 | Clamp 3. 7" (94mm) | 2 | √ |
|
|
| 16 | Clamp 5.75" (146mm) | 2 | √ |
|
|
| 17 | Taper Cone 2.91"X3.56" (74X90mm) | 1 | √ |
|
|
| 18 | Taper Cone 3.38"X4.05" (85.8X103mm) | 1 | √ |
|
|
| 19 | Taper Cone 1.62"X2.37" (41X60mm) | 1 | √ |
|
|
| 20 | Taper Cone 1.96"X3.43"(50X87mm) | 1 | √ |
|
|
| 21 | Hubless And Composite Rotor Adapter Set (10 PCS) | 1 |
| √ |
|
