Standard Model Greart Price Spray Paint Booth

Name: Standard Model Greart Price Spray Paint Booth
Brand: ibuyautoparts.com
SKU: 643797075
Availability: InStock
Rating: 4.3 (36 reviews)

Price:	US $ 5500-6900/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Auto baking booth: We supply good quality spray booth with competitive price

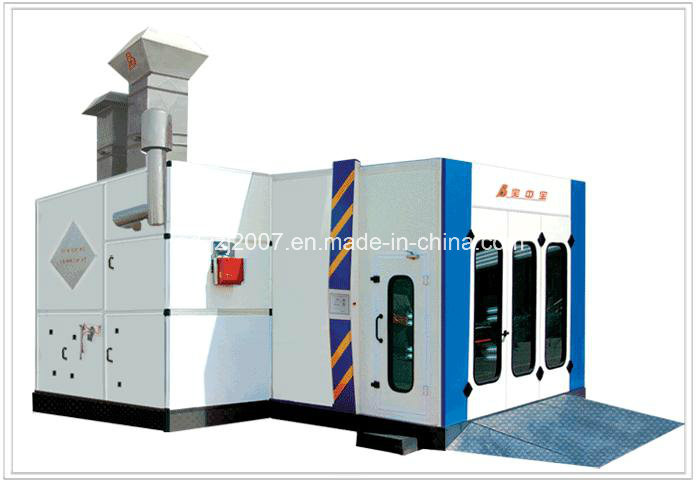

BZB-8400 Spray booth:
1) Outside dimension: 7046*5596*3430mm(L*W*H);
2) Inside dimension: 6900*4000*2650mm(L*W*H);
3) Basement: Complete steel assemble, height is 280mm,
Two rows of twist grilles and three rows of embossed steel plates.
4) Main door: 3-fold, , 3000*2700 mm (W*H);

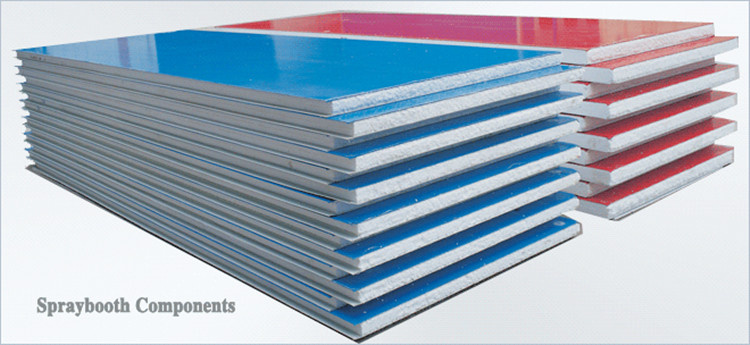

5) Wall Panels: Thickness is 50mm EPS panel;
0.476mm wall steel sheet; The roof panel is galvanized steel plates.
6) Lighting: Ceiling Lights: 8Groups*4Pcs=32Pcs *36W;
Side lights: 8Groups*2Pcs=16Pcs *36W; Max900Lux;
7) Glass: All glass is toughened glass;
8) Generator: Back upper intake air, back upper extract air, quadrate steel frame, coated steel;
9) Intake and exhaust air system:
Intake fan: Centrifugal fan, 2*4KW, capacity: 24000m3/h;
Extract fan: Centrifugal fan, 1*5.5KW, capacity: 18000m3/h;
10) Duct: 700mm*700mm;
Intake air duct: 4m straight duct with a trapezoid protection hat; With electric damper
Exhaust air duct: 4m straight duct with a taper protection hat; With gravity damper
11) Heating system: RIELLO G20 diesel burner (one stage), heating capacity is 200000Kcal/h, pneumatic damper from spraying to baking cycle, the heating time is 5~7 minutes;
12) Filtering system: Pre-filter, high efficiency filter (ceiling filter), floor filter, extract filter, the multilayer bag filtration
13) Control box: Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, hour meter, pressure gauge, emergency stop, failure alarm, temperature control meter; Triangle drive, all lines contacts with the floor wire;
13) Power: 380V, 50Hz, 3Phase 4 lines

Prod Model:	BZB-8400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
