Ce Approved Best Price Auto Painting Spray Booth

Name: Ce Approved Best Price Auto Painting Spray Booth
Brand: ibuyautoparts.com
SKU: 630898145
Availability: InStock
Rating: 4.4 (124 reviews)

Price:	US $ 5670-16500/Set
Trade Terms:	FOB,others
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Our spray booth BZB-8600 is specially used for water-basd paint with extra fans.

Outside Size:(mm)	7040χ5696χ3500	Front Door:(mm)	3000(w)χ2600(h)
Inside Size:(mm)	6900χ4000χ2650	Total Power:(km)	23.4

Cabin System	1.Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 70mm Thick, Tongue & Groove Style Compound Construction, Aluminum-alloy Frame,Anti-flame and Heat-Insulation
	4.Basement:	Full Grid, Adjustable Height,Galvanized Steel Sheet Construction,Three Embossed Steel Ramps.
Air Circulation System	Inlet Turbine Fan		Capacity: 23450m³/h	Outlet Turbine Fan	Capacity: 30000m³ /h
			Power: 9kw		Power: 7.5kw
			Quantity: 1set		Quantity: 1set
			54 pcs Ceiling Nozzles with 3 Centrifugal Fans for Drying Water Paint
	Air Volume: 37000m³ /h; Air Speed: 0.5m /s
Air Purification system	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP ≤ 1.2mg/m³
Heating System	1.Burner		Italy Riello Brand,RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor
	2.Heat Energy Converters		Stainless Steel, Argon Arc Welding,The Heat Exchange Rate 85%
	Max Temp:80 ° C , Heating Time: 4-5min(20-60 ° C), Fuel Consumption: 4 -6kg /vehicle
Lighting System	Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 32 pcs 20w Philips Lamp, 1100 Lux
Electric Controlling System	PLC Controlling, Soft Touching Botton, Spray & Baking Switch, Light Switch,Emergency Stop, Breakdown Alarm
Environmental Conversation System		Multi-Layer Fiberglasss Filter

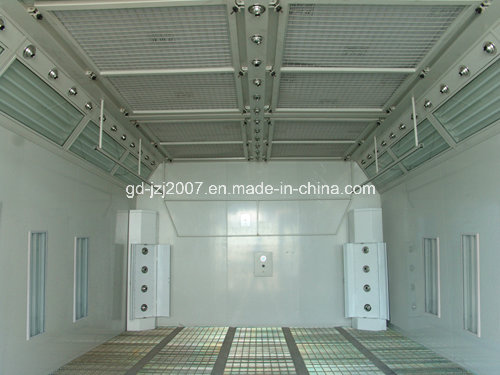

The inside picture

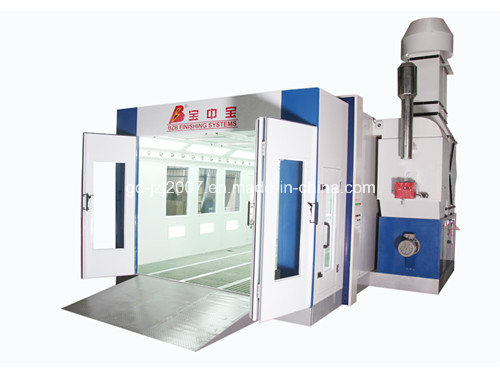

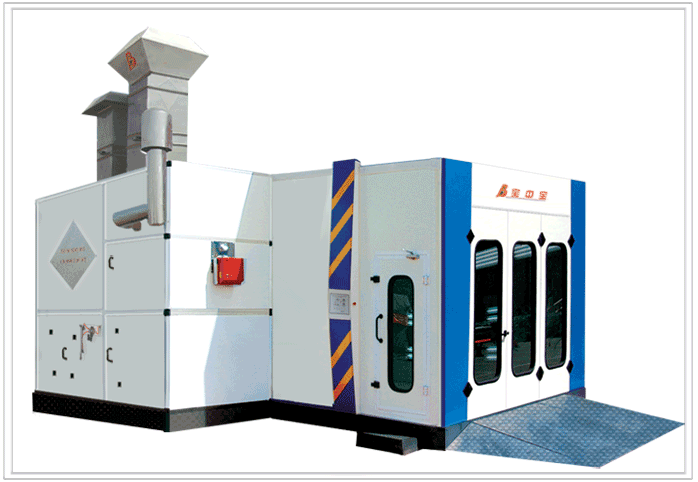

The outside picture:

The filter

Certification:

Prod Model:	BZB-8600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Function:	Painting and Baking
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
