Ce Approved Good Quality Car Spray and Baking Booth

Name: Ce Approved Good Quality Car Spray and Baking Booth
Brand: ibuyautoparts.com
SKU: 618685852
Availability: InStock
Rating: 5 (49 reviews)

Price:	US $ 6850-9930/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

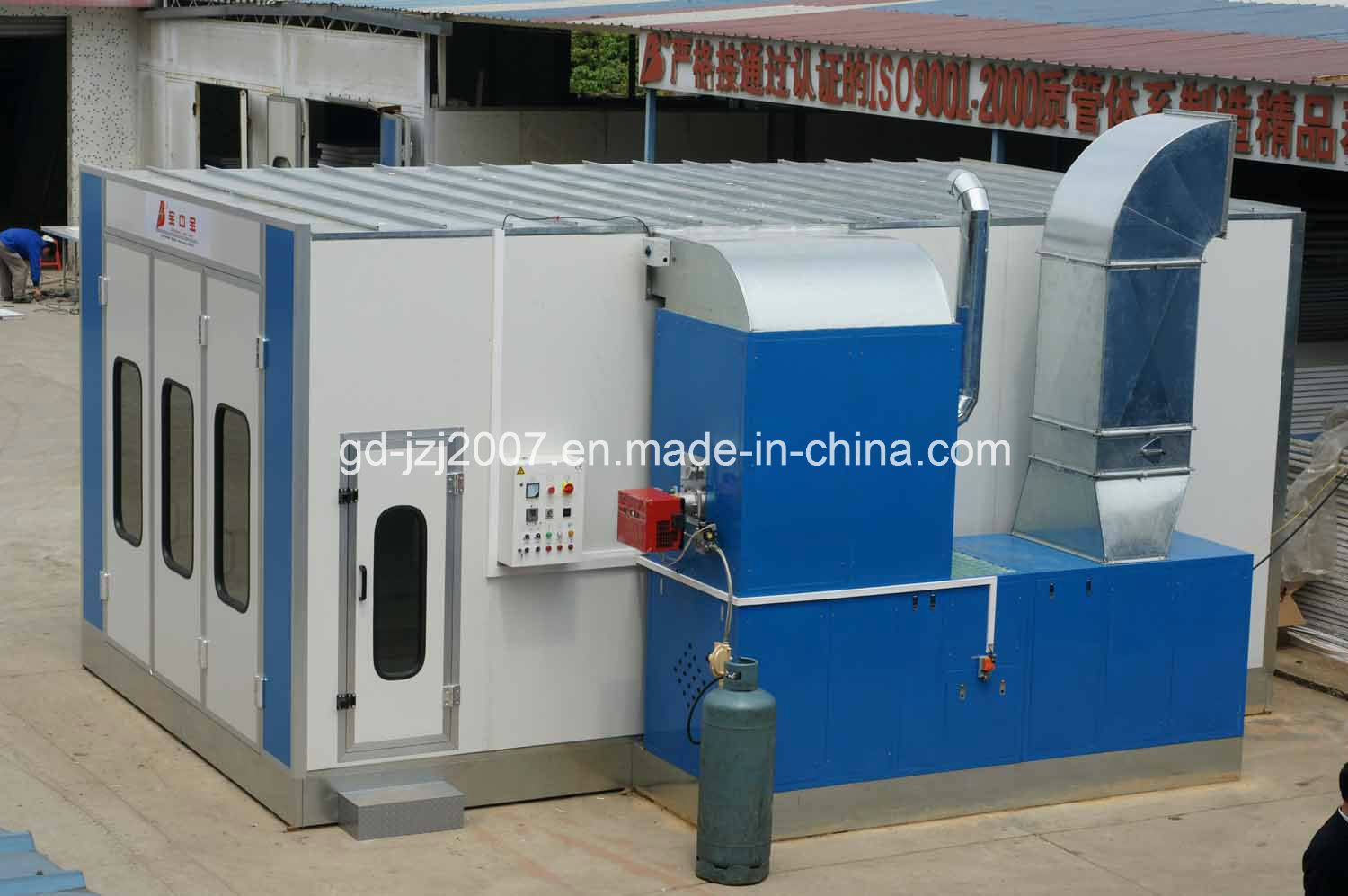

The BZB spray booths have been designed to provide a bright, clean and well-ventilated area for painting and baking cars, White pre-coated steel and color-corrected, high efficiency lights allows proper coating.
BZB-T8000
1) Outside dimension: 7046*5596*3430mm(L*W*H);
2) Inside dimension: 6900*4000*2650mm(L*W*H);
3) Basement: complete steel assemble, height is 280mm,
Two rows of twist grilles and three rows of embossed steel plates..
4) Main door: 3-fold, 3000*2700 mm (W*H);
5) Wall Panels: thickness is 50mm EPS panel;
0.476mm wall steel sheet;The roof panel is galvanized steel plates.
6) Lighting: Ceiling Lights: 8Groups*4Pcs=32Pcs *36W;
Side lights: 8Groups*2Pcs=16Pcs *36W;max900Lux;
7) Glass: all glass is toughened glass;
8) Generator: back upper intake air, back upper extract air, quadrate steel frame, coated steel;
9) Intake and exhaust air system:
Intake fan: DDF- 800 turbo fan, 7.5KW, motor outside, direct drive, capacity: 25000m³/h;
Extract fan: DDF-800 turbo fan, 7.5KW, motor outside, direct drive, capacity: 25000m³/h;
10) Duct: 700mm*700mm;
Intake air duct: 4m straight duct with a trapezoid protection hat; with electric damper
Exhaust air duct: 4m straight duct with a taper protection hat; with gravity damper
11) Heating system: RIELLO G20 diesel burner (one stage), heating capacity is 200000Kcal/h, pneumatic damper from spraying to baking cycle, the heating time is 5~7 minutes;
12) Filtering system: Pre-filter, high efficiency filter (ceiling filter), floor filter, extract filter, the multilayer bag filtration
13) Control box: spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, hour meter, pressure gauge, emergency stop, failure alarm, temperature control meter; triangle drive, all lines contacts with the floor wire;
13) Power: 380V, 50Hz, 3Phase 4 lines

Prod Model:	BZB-T8000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Function:	Painting and Baking
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
