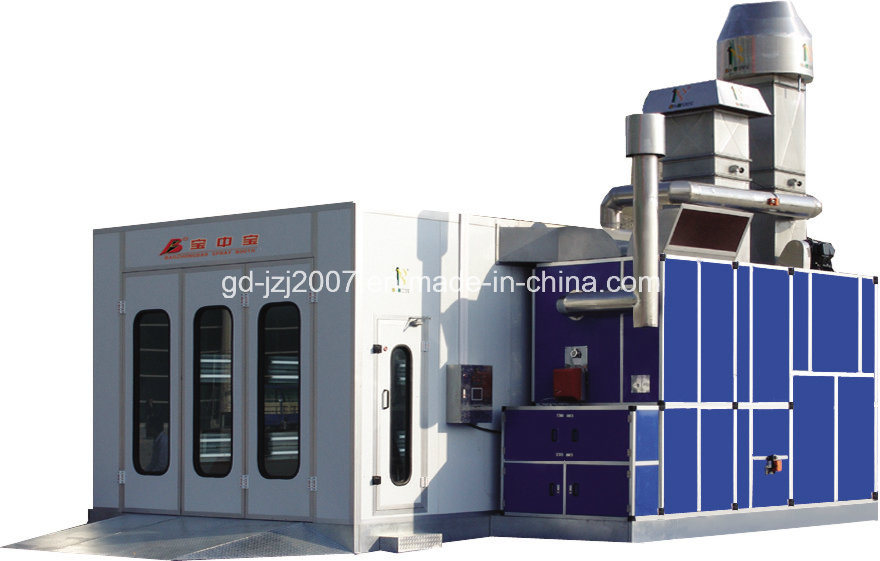

China Professional Manufacturer Ce Approved Auto Painting Spray Booth Oven

Name: China Professional Manufacturer Ce Approved Auto Painting Spray Booth Oven
Brand: ibuyautoparts.com
SKU: 690491392
Availability: InStock
Rating: 5 (146 reviews)

Price:	US $ 5500-19780/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Paint spray chamber: Producing specially designed Painting and Drying spray booths suitable for your painting work of all types of vehicles; BZB brand spray booth is with a concept of a customer-focused attitude

Outside Size:(mm)	7040x5990x3450	Front Door:(mm)	3000(w)x2600(h)
Inside Size:(mm)	6900x4000x2650	Total Power:(km)	25

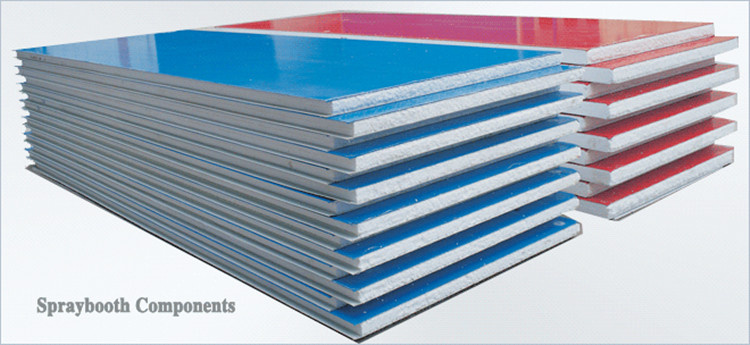

Cabin System	1.Wallboard	EPS (epispastics polystyrene) Colorful Steel Skin Heat Insulated Panel, Wall Boards: 70mm Thick, Ceiling Panel: 50mm Thick. Life Span:20 years
	2.Basement	Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps.
	3.Enclosure	Sturdy body structure, especially the side door with a pressure lock which will automatically open when the pressure inside is over the limit
Air Circulation System	Inlet Turbine Fan		Model:YDW4.5L	Outlet Turbine Fan	Model:4-82-6.3E
			Capacity: 14000m3/h		Capacity: 30000m 3 /h
			Power: 4kw		Power: 15kw
			Pressure:800Pa		Pressure:1236Pa
			Quantity: 2sets		Quantity: 1set
	The circulation system covers a set of automatic valve and two sets of manual valve. Manual adjustment valves are placed in inhaling and exhaust flue to control airflow volume and adjust pressure. A stainless steel trapezoid hood and a stainless cone hood are placed on the top of blow flue and exhaust flue separately.
	40 pcs Ceiling Nozzles with 2 Centrifugal(power 1.5kw/set) fans drying water paint

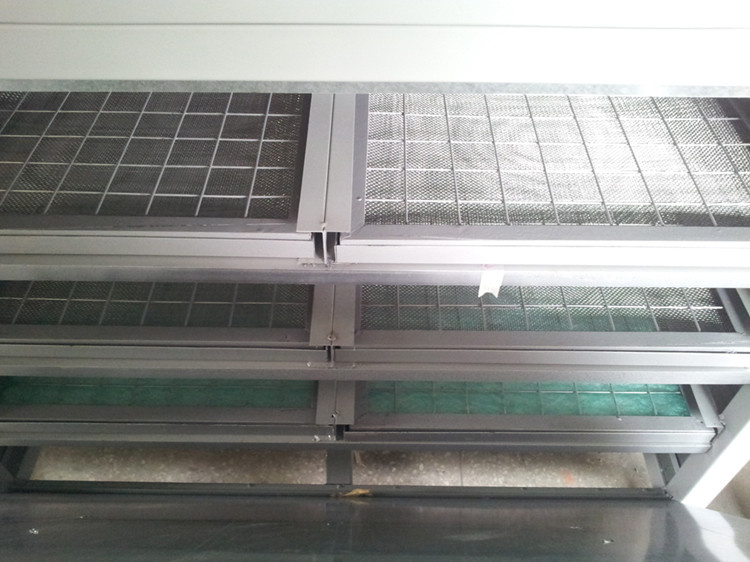

Air Purification system	Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 15 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. It's Filtering Rate Reaches 98%.
Heating System	1.Burner		ItalyRiello Brand,RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor
	2.Heat Energy Converters		Stainless Steel, Argon Arc Welding, Heat Exchange Rate 85%
	Max Temp:80,Heating Time: 4-6min(20-60 . C), Fuel Consumption: 6-8kg/vehicle
Lighting System	Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 32 pcs 20w Philips Lamp, 800 Lux
Electric Controlling System	PLC Controlling, Soft Touching Button, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental Conversation System		No-pump water curtain paint for mist filtering device hat can reduce more than 98% of the fog without the trouble of replacing drying-method filter by fully mixing fog, water and air, and ensures a qualified exhaust according to the relevant state standards

Prod Model:	BZB-8700
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
