High Quality Car Painting Spray Booth with Ce Certification

Name: High Quality Car Painting Spray Booth with Ce Certification
Brand: ibuyautoparts.com
SKU: 639060785
Availability: InStock
Rating: 4.8 (137 reviews)

Price:	US $ 8820-12150/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

SPRAY BOOTH with SPECIAL DESIGN for high quality required clients;
Ensuring nice ventilation effects and reach a high level of safety requirement;
Design and manufacturing customized paint booth for all types of vehicles.

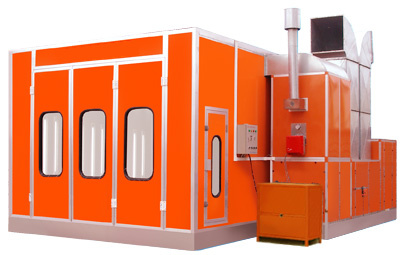

BZB-8500 Model Spraying&baking Booth
Outside size:mm		7040×5500×3450
Inside size:mm		6900×4000×2650
cabin system	1,wall panel:EPS (polystyrene) insulation board,thickness 70mm,with life span 20 years. 2,entrance doors with aluminum frames. 3,full ramps made of embossed steel.
air outlet and inlet system	1,the YDW series centrifugal fan is of Siemens technology, this fan has low noise, large air volume,low energy consumption, etc. air inlet fan modelYDW4.5L;air capacity:14000m 3 /h;pressure800Pa;velocity:940rpm;power4KW;quatity:2sets. air outlet fan modelYDW5.6M;air capacity:20000m 3 /h;pressure800Pa;velocity:900rpm;power7.5KW;quatity:1set. 2,the ait inlet cabinet and air outlet cabinet is aluminum framed.
air purification system	dual filtering structure:the primary fillter can capture granules larger than 15μm;the ceiling filter can capture granules larger than 5μm,with the total filtering rate 98%.
heating system	1,Italian RG3S diesel burner,16,0000calaries per hour,with fuel consumption5~6kg/vehicle, heating time 5~7minutes. 2,SUS304 stainless steel heat exchanger,argon arc welding,with heating-exchanging rate 90%. 3,th fuel tank is 50L,equipped with Fuel display device and diesel filtering device.
lighting system	32 pieces of Philips lamps equipped with ballasts,and 16 pieces of bottom lamps,1000LUX.
control system	spraying&baking switch,light switch,emergency stop,breakdown alarm,timer.
environmental system	muti-layers of fiberglass filter and shelf with active carbon,ensuring a high level of environment-friendliness.
others	1,with one tool box where the spraying tools can be put. 2,with one set of Frame rail made of stainless steel,where little spare parts can be put and painted.

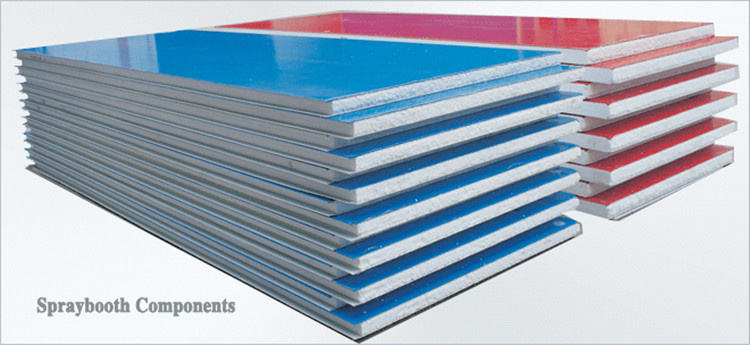

The colorful EPS panel:

The heat exchager,burner and damper:

The Certification:

Prod Model:	BZB-8500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	as Require
Quality:	Middle Level
Certificate:	Ce,ISO:9001
Color:	White,Red,Orange,Blue.......
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	BZB

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
