Prod Model: |
Customized |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
as Require |
Voltage: |
as Require |
Certification: |
CE |
Airflow Direction: |
Fully Undershot-type |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Brand: |
Bzb |
Product Description

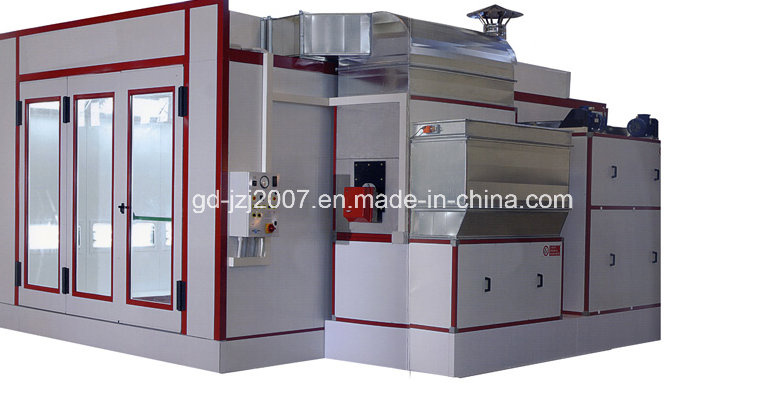

Electrical paint chamber:
Fire stop Spray Booth has radiator electric heater;

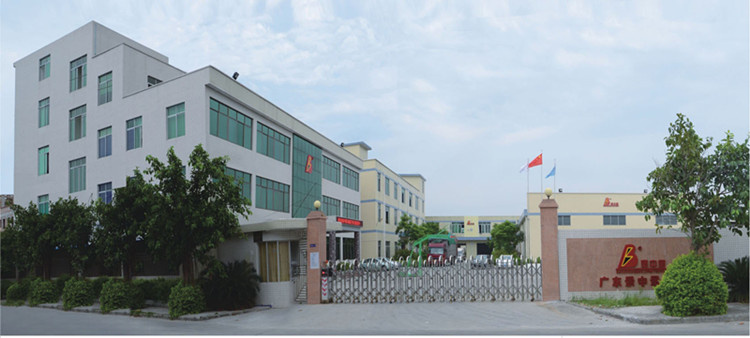

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel. Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc. It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
Specifications: electrical paint chamber | | | | | |
| | | | | | |
1. Fire stop Spray Booth has radiator electric heater; | | |
2. Anti-flame; | | | | | |
3. consisted of high-quality components | | | |
Outside size: (mm) | 7000x5360x3430 LxWxH | Inside size: (mm) | 6900x4000x2750 LxWxH |
Front door: (mm) | 3000x2700WxH | Total power: (kw) | Spray16.5/Baking37.5 |
Cabin system | Wallboard | Rock wool colorful steel skin panel, 50mm, galvanized steel sheet frame, anti-flame and heat-insulation. ceiling panel: galvanized steel sheet, tongue& groove style. the front door made of powder spray sheet metal. |
Basement | The height of basement is 280mm, two row grilles, three rows diamond plate. Two embossed steel ramps: 600mm |
Air circulation system | Inlet fan(1set) | Model: DDF-800 | Outlet fan(1set) | Model: DDF-800 |
| |
Capacity: 25000 m 3 /h | Capacity: 25000 m 3 /h |
| |
Air speed: 0.35m/s | Air speed: 0.35m/s |
| |
Power: 7.5kw | Power: 7.5kw |
| |
Air recycling times: 280 times/h | Air recycling times: 280 times/h |
The heat cabin make of painted sections and galvanized steel sheet |
purification system | The primary filter can capture granules larger than 10µ m. Ceiling filters are imported from Italy and can capture granules larger than 5µ m. Fiberglass filter below the basement; TSP ≤ 1.4mg/m 3 |
Heating System | | with radiator electric heater, total power: 36kw |
| Max Temp: 80° C |
Heating time: 25min(20~60° C) |
Light system | Ceiling light: 24 branches 36w Philips lamp, 800lux |
Electric controlling system | Use of high-quality electronic component assembly, the main circuit with multi-protection. light switch, emergency stop, time setting, spray& baking switch, Radiation Control Switch(left, right, back) |
Environmental system | Multi-layer fiberglass filter, after treated by active-carbon, then exhaust from the exhaust duct. |
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
