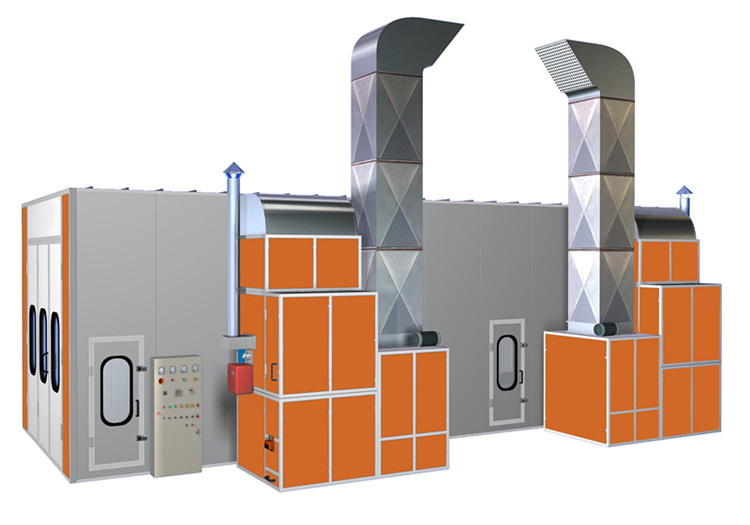

New Design Hot Sale Big Spray Booth with Ce
| Price: |
US $ 8820-32600/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
| Prod Model: |
BZB-FB-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colors: |
White,Red,Orange,Blue....... |
| Voltage: |
as Require |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Bzb |
Product Description

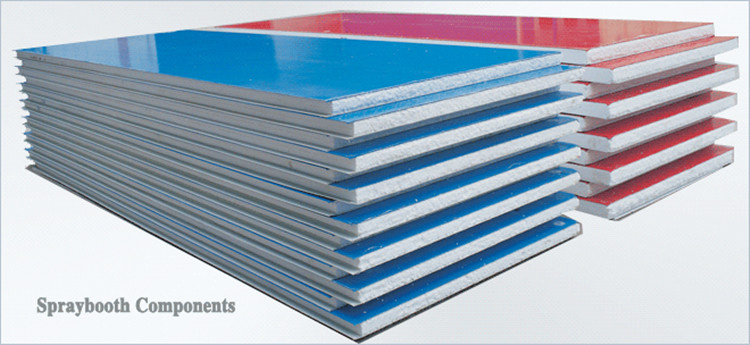

Main features:1. Wallboard:Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.2. Door: 4 pcs of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 pcs of emergency doors. 3. Air Intake System (2sets): Each set consists of 2x5.5kw intake fan. Total 4 units of 5.5kw intake fan. BELIMO 20N electric damper.4. Air Exhaust System (2sets): Each set consists of 1x7.5kw exhaust fan. Total 2 units of 7.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.5. Heating System (2sets): Each set consists of 1 unit Italy Riello G20 diesel burner, 200000Kcal/h. Total 2 units of burners, 400000Kcal/h. The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.6. Lighting System:Ceiling light has 16 units x 3 pcs of 40w lamps. Side light has 18 units x 2 pcs of 40w lamps. Total 84 pcs of 40w lamps. 900 Lux.7. Air Purification:Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd., was established in 1999.As one of most professional auto maintenance equipments manufacturers in China, Our factory manufactures spray booths for cars, buses, truck and other vehicles, preparation stations, car lifts and supplies body repair systems, wheel aligners and other relevant garage equipment to customers all over the world.| the spray booth configuration table for bus |
|
|
| External Size (mm) | 15150x6750x5800 |
| Internal Size (mm) | 15000x5000x5000 |
| Cabin System | 1.Wallboard | EPS (expanded polystyrene)colorful steel boards,the side wallboard 75mm thick, the roof panel 50mm thick, one-time compound-formed, anti-flame and heat-containing. |
|
|
| 2.The outside frames are decorated by galvanized steel sheets; the front door frames are decorated by aluminum-alloy components |
|
| 3.Basement | Framework of zinc-plated steel plate, zinc-plated square steel pipe assemble, The floor consist of flat steel grids. |
|
| Air Intake and Exhaust System | 1.Tow sets of air intake and exhaust systems; The air intake ventilator: Centrifugal insulated ventilator, using of Siemans YDW technology |
|
| Inhaling Ventilator | Model: YDW -5.6S | Exhaust Ventilator | Model: 4-82-6.3E |
| Blower capacity: 15000m 3 /h | Blower capacity: 27587m 3 /h |
| Pressure: 810Pa | Pressure: 1079Pa |
| Rolling speed: 900rpm | Rolling speed: 1400rpm |
| Power: 5.5kw | Power: 11kw |
| Quantity: 4 sets | Quantity: 2sets |
| 2.The circulation system covers two sets of automatic valves, matching Swiss genuine 18 newton actuator. |
| 3.The generator cabinet is made of formed steel framework |
| Air Purification System | Adopt dual filtering structure, the rough structure, can capture granules larger than 15 μm. It is fixed in the joint of automatic valve cabinet and burning cabinet, matching a movable door for being replaced conveniently. The fine structure features multilayer structure so that it block away granules bigger than 5μm. It is set as interior-hook block flat style at the bottom of the static pressure room. The whole purification system has capacity of large volume of dust, small air block and long durability. Its filtering rate reaches 98% |
|
|
|
|
|
|
|
| Heating System | 1.Burner | It takes Italy Baite brand,BT26 model light diesel burner which generates 260 thousand Kilocalories heat energy each hour;the consumption of oil is 18~25kg/h |
|
|
| 2.Heat Energy Converters | Welded by stainless steel by argon arc welding. Its structure is rational, safe and reliable, and its heat exchange area is large, heat utilization rate is high. The heat exchange rate reaches 85% |
|
|
| Light System | The light boxes present a angle of 45 . against the wallboard. The system consists of 36W Philips lights and electron ballasts; Selected: The wall lights cover 36W Philips lights and electron ballasts. The illumination in the room is above 800 Lux |
|
|
| Electric controlling system | Made up of the selected electronic apparatuses as all operational and controlling components, which are of supreme quality. |
|
| Environmental Conversation System | It adopt mutilple mixing fog filter device to ensure qualified exhaust according to the relevant state standards Selected: the active-carbon capture device |
|
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
