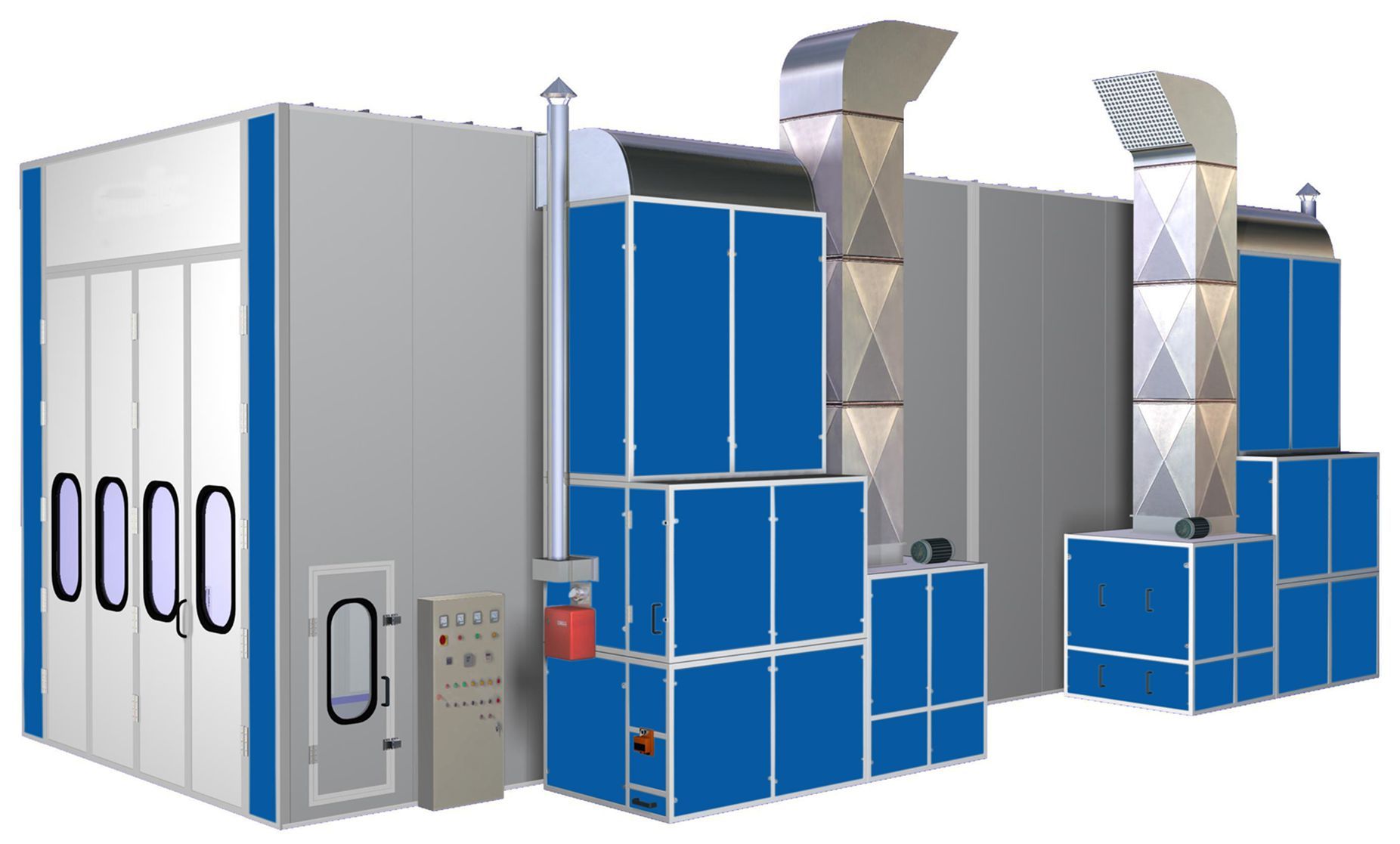

Hot Sale Fan Blade Paint Booth

Name: Hot Sale Fan Blade Paint Booth
Brand: ibuyautoparts.com
SKU: 692369665
Availability: InStock
Rating: 4.9 (69 reviews)

Price:	US $ 8820-32600/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Specifications
1. Spray Booth-fan blade paint booth
2. CE and ISO approved
3. 4 sets of Riello RG5S diesel burner
4. Wall panel: 75mm thickness

specifications of spray booth of 15meters, only for reference.
model of spray booth:		BZB-FB model		manufacturer	Jingzhongjing
technical parameters	(L× W× H)outside size	15156× 6956× 5800	structure parameter	thickness of wall panel mm	75
	(L× W× H)inside size	15000× 5000× 5000		thickness of steel sheet mm	0.5
	Access door width(mm)	4000		stuffing	EPS Panel
	Access door hight(mm)	4500		grid	30*4flat iron
	air speed when empty(m/s)	≥ 0.25		shelf of the booth	square steel pipe+angle iron
	noise dB	≤ 85		mesh	square steel pipe
	total power kw	52		cabinet	square steel pipe+galvanized steel plate
	max work temprature	80 centi degree	illuminance parameter	lamps(pcs)	ceiling lamps72
spec. of burner	burner	2 sets of RG5S Riello Burner		lamps(pcs)	bottom lamps 40
	max heat Calories/h	260000*2		power/pc W	36
	fuel consumption L/h	(13-26)*2		lamps	220V/50HZ
	heat-exchanger	stainless steel		illuminance Lux	≥ 800

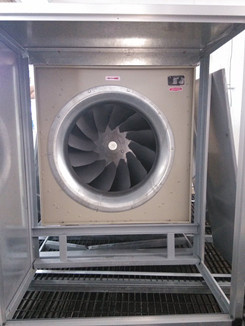

spec. of inlet fan	model of inlet fan	YDW-5.6S	outlet air parameters	outlet pipe(mm)	900× 900
	estimated air Volume m3/h	17530		chimney	galvanized steel plate
	power/set(KW)	7.5		hight of chimney	standard 12m plus two elbows
	Quatity	4	electric appliance	control box model	PLC control board
spec. of outlet fan	model of outlet fan	4-82-6.3E	electric appliance	components of control box	main parts are importd.
	estimated air Volume(m 3 /h)	34000	others	color	grey/sky blue/orange(optional)
	power/set(KW)	15	others	work plate lifter	optional
	quatity	2
remarks
made by: Guangdong Jingzhongjing Industrial Painting Equipment Co., LTD.				Aprill. 30th, 2011

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
