High Standard Alignment Scissor Lift

Name: High Standard Alignment Scissor Lift
Brand: ibuyautoparts.com
SKU: 700795872
Availability: InStock
Rating: 4.5 (36 reviews)

Price:	Negotiableset
Trade Terms:	FOB
Min Order:	1set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

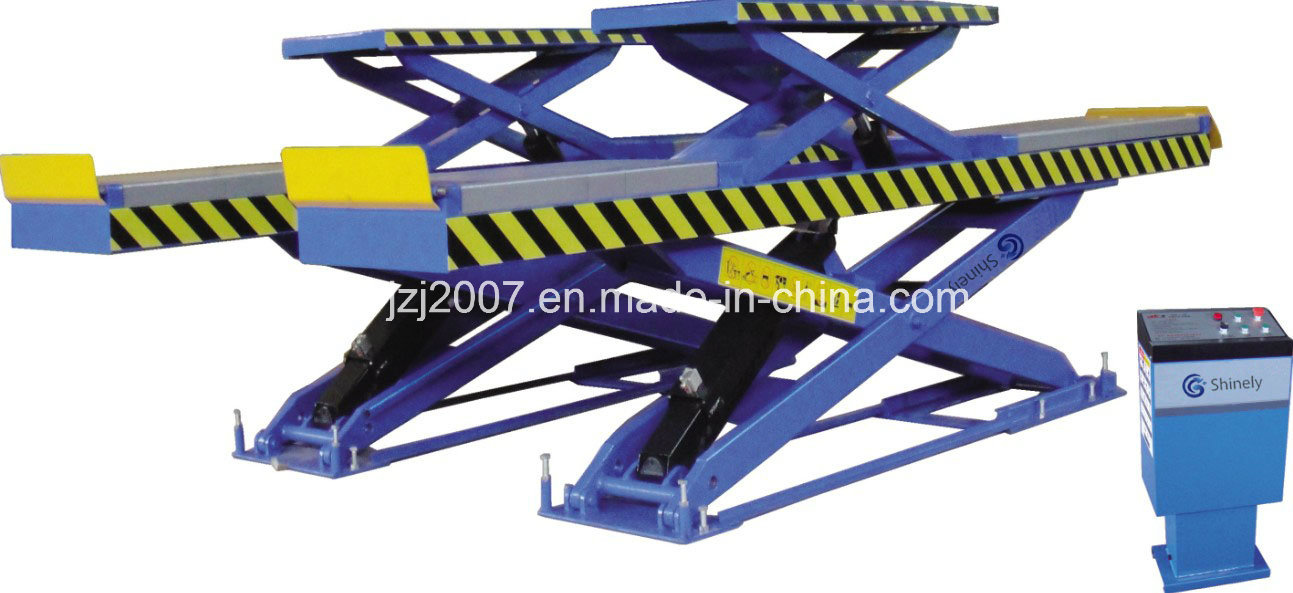

GQJ350D Alignment scissor lift
Features:
In-ground installation

Ideal choice for alignment and chassis checking and vehicle maintenance use

Adjustable turntable position adapts to more types of vehicle

Its central jack, with a maximum of 500mm lifting height, is extensible for longer vehicles

Aluminum motor prevents overheated

The mechanical safety lock automatically engaged when rising

Pneumatic release system decreases noise emitted during service work
Technical data

Lifting capacity	7714lbs/3500kg
Lifting height	79"/2000mm
Secondary lifting height	20"/500mm
Min Height	13"/330mm
Overall length	165"/4200mm
Platform width	24"/620mm
Width between two platforms	32"/800mm
Air source pressure	5-6kg/Cm2
Lifting time for large scissor	30seconds
Lifting time for jack	20seconds
Motor voltage	220V or 380V
Frequency	50Hz or 60Hz
Phase	1ph or 3ph
Net weight	3760lbs/1706kg

Prod Model:	GQJ350D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Volatge:	as Require
Lifting Capacity:	3.5T
Certification:	CE
Design:	Scissor
Type:	Scissor Lift
Brand:	Bzb
