Automotive Spray Paint Booth CE High Quality with Good Price

Name: Automotive Spray Paint Booth CE High Quality with Good Price
Brand: ibuyautoparts.com
SKU: 631042235
Availability: InStock
Rating: 4.6 (93 reviews)

Price:	US $ 3500-7650/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

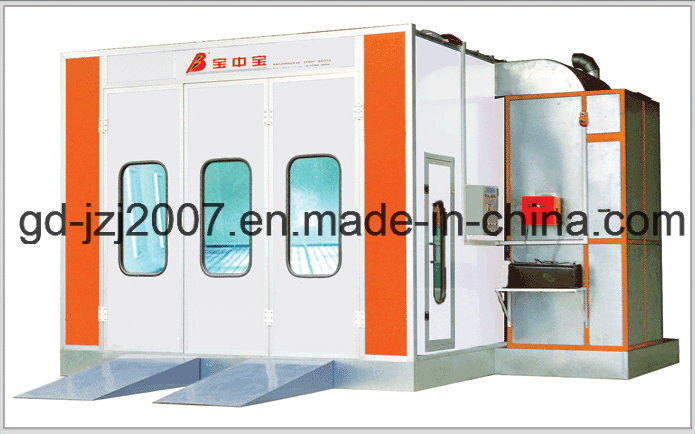

Our spray booth BZB-8200 has goodd ventilation and filtering system, it is also very economical and of good quality.

Outside Size: (mm)	7000χ 5560χ 3430	Front Door: (mm)	3000(w)χ 2700(h)
Inside Size: (mm)	6900χ 4000χ 2800	Total Power: (km)	10

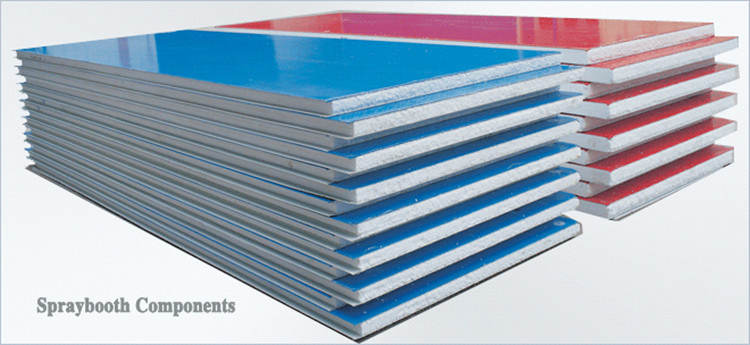

Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Compound Construction, Anti-flame and Heat-Insulation Galvanized Steel Roof Panel.
	Basement:	Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction, Two Ramps,
Air Circulation System	Inlet Fan		Capacity: 12000m³ /h	Power: 4kw/set	Quantity: 2set
	Air Volume: 24000m³ /h; Air Speed: 0.35m /s
Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μ m. Ceiling Filter Capture Granules Bigger than 5 μ m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP ≤ 1.4mg/m³
Heating System	Burner		Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h, The Heat Exchange Rate 85%.
	Heat Energy Converters		Stainless Steel, Argon Arc Welding.
	Max Temp: 80° C, Heating Time: 5-7min, Fuel Consumption: 4 -6kg /vehicle
Lighting System	Ceiling Light: 24 pcs 36w Philips Lamp; 800 Lux
Electric Controlling System	Light Switch, Spray & Baking Switch, Emergency Stop, Breakdown Alarm

Some other parts of spray booth:

Prod Model:	BZB-8200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Function:	Painting and Baking
Certification:	CE
Airflow Direction:	Cross-flow Type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	BZB

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
