High Quality Truck Paint Booth for Best Price

BZB Bus paint booth Quotation
Specification
1) Outside dimension: 18156*6956*5800(L*W*H);

2) Inside dimension: 18000*5000*5000mm(L*W*H);

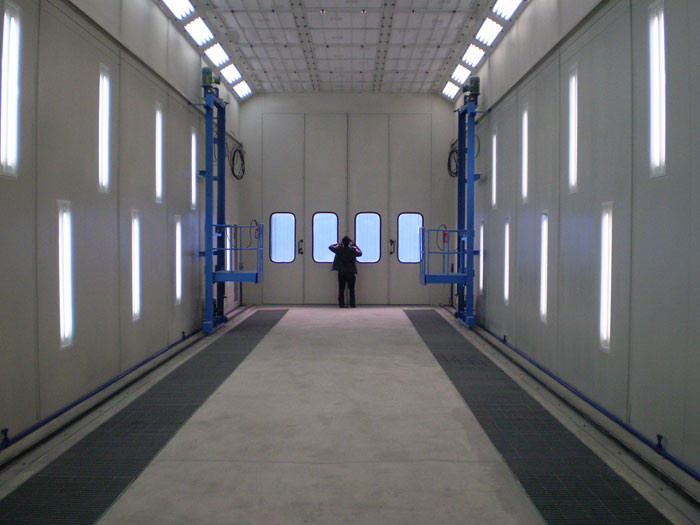

3) Basement: Two rows of pits in the ground for exhaust air, dimension of each pits: 13850*760mm(L*W), above with galvanized grilles made by twisted steel and flat bar

4) Main door: Folding door, 4-fold(4 leaf), 4000*4500mm(W*H)

5)Escape door: 3 units, 800*2000mm(L*H)

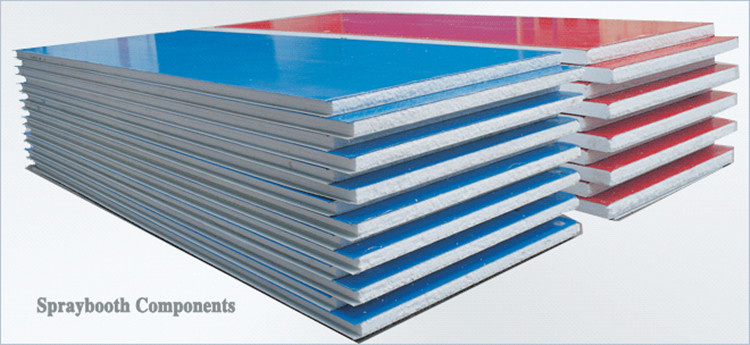

6) Room Body: Side panel: 75 mm, and insulation is EPS panel, 0.5mm double skinned sheet; Roof panel: 50mm thick EPS heat preservation panel, 0.476mm color skinned sheet; Profiled bar beams in the roof to strength the room body.

7) Lighting: Ceiling Lights: 18Groups*4PCS=108PCS *36W, Philip brand, with electronic ballasts; Side Lights: 22Groupsx2PCS=66PCS x36W; Philip brand, with electronic ballasts, vertically set, up and down interleaving installation;

8) Glass: All glass is toughened glass;

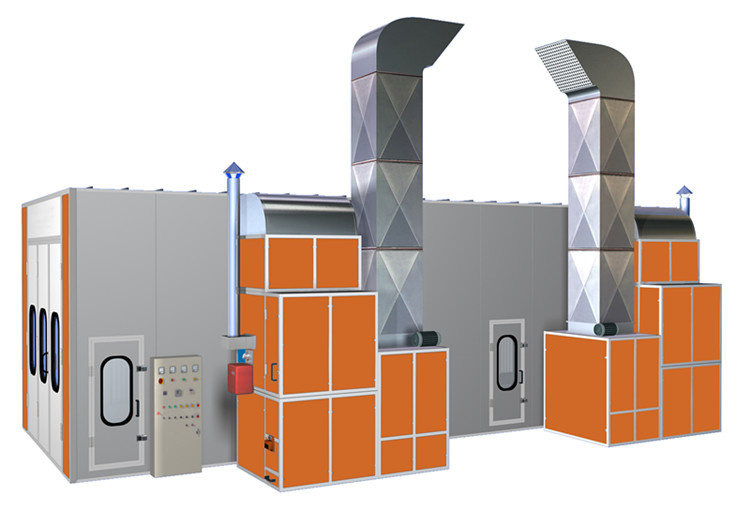

9) Generator: Side upper intake air, back upper extract air; Quadrate steel frame, outside is coated steel, inside is galvanized steel, filled with heat preservation material in the middle.

10) Intake and exhaust air system: Intake fan: 6*5.5kw double-intake centrifugal fan for intake air, model: YDW5.6S, 5.5KW, air capacity: 17530m3/h for each fan
2. Extract fan: 3*11KW double-intake certrifugal fan for exhaust air, model: 4-8.2-6.3E, air capacity: 34000m3/h; Equiped manual dampers for exhaust air.

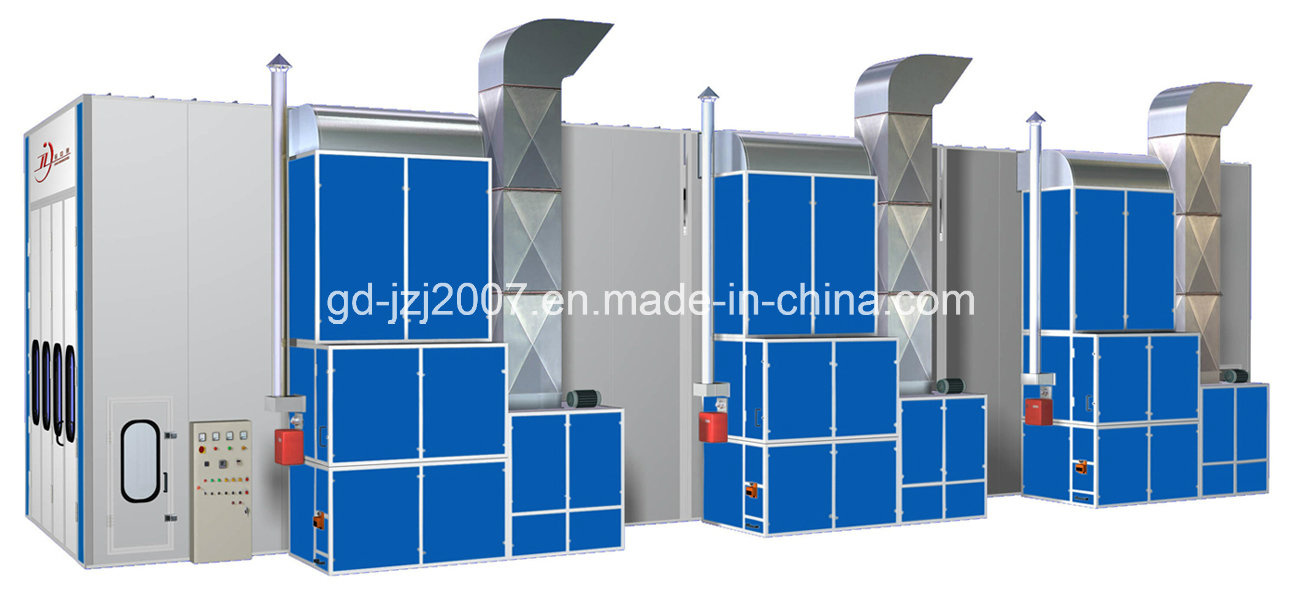

11) Heating system: 3 units RIELLO RG5S Oil burner(two stage), heating capacity is 260000Kcal/h/per unit, stainless steel heating exchanger, 2 PCS electric damper from spraying to baking cycle, 20N actuator;

12) Filtering system: Pre-filter, high efficiency filter (ceiling filter), exhaust fiberglass filter( floor filter), active carbon filter;

13) Control box: Spraying, risen-temperature spraying, baking temperature, power supply switch, time setting, lighting switch, hour meter, pressure gauge, emergency stop, failure alarm, temperature control meter.
