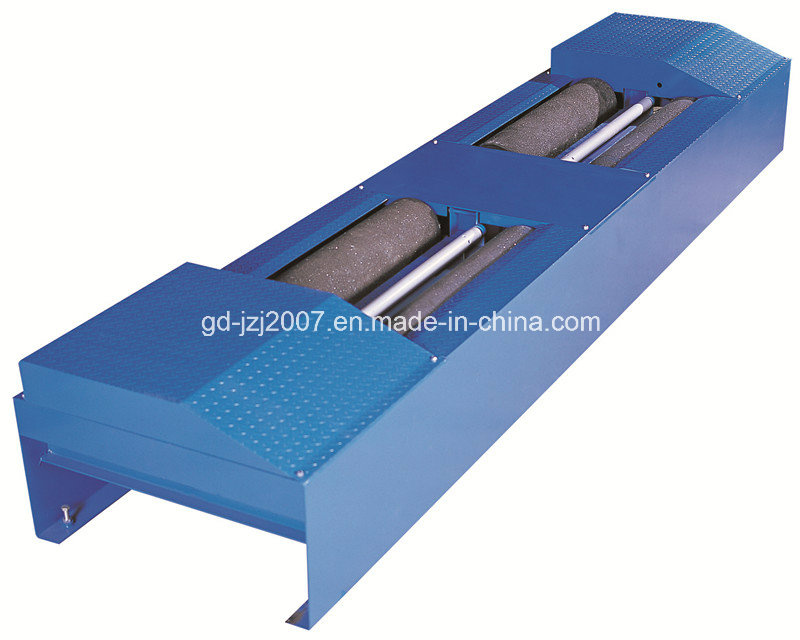

High Quality Automotive Brake Tester

Brake Tester XK ZD-3T
XKZD-3T Equipped with rollers with large diameters, higher test speed, higher test precision and stable performance, the rollers are covered with high quality surface sand, this model is able to test the max. brake forces, block forces and process errors of left/right wheels, it meets the latest National standard and is being used widely in all types of vehicle test workshops.

Item	Unit	Data
Max. Allowance Load Axle Weight	kg	3000
Test Range for Brake Forces	daN	2×(0~900)
Wheel Distance (Inner Width/Outer Width)	mm	700/2400
Test Speed	km/h	2.5±10%
Roller Diameter x Length	mm	Ø245×730
Motor Power	kw	2×3
Power Supply	V	AC380±10%

1) Twisting force case is made with German technology, it is with high performance and high precision reverse driving force.
2) Motor decelerator is installed in the middle of the platform. It has the structures of integrative platform design. The decelerator works stably, test precision is high.
3) With controller for the 3^rd roller, the buffer prevents the tire abrasion, feedback device for speed signal.
4) European mode, the roller diameter is ø300.
5) Advanced adhesive sand technology, the adhesion modulus is above 0.82 in case of both dry and wet, the longevity is over 200000 times.
6) The sensor is with high precision, certified by ISO9002.
7) Test precision is high, repetition performance is good, brake force error is <1.5%(National Standard ≤±5%)
Platform with high strength.
