Great Price Painting Curing Spray Booth with Ce Certification

Name: Great Price Painting Curing Spray Booth with Ce Certification
Brand: ibuyautoparts.com
SKU: 682380025
Availability: InStock
Rating: 4.9 (72 reviews)

Price:	US $ 3500-7650/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

BZB Spray booth is a national paint booth supplier specializing in automotive spray booth, including furniture, wood finishing spray booth.

Our personnel have over ten years experience in the paint booth.

What set us apart from our competitors are our superior craftsmanship, vast experience, fantastic customer service and affordable pricing.

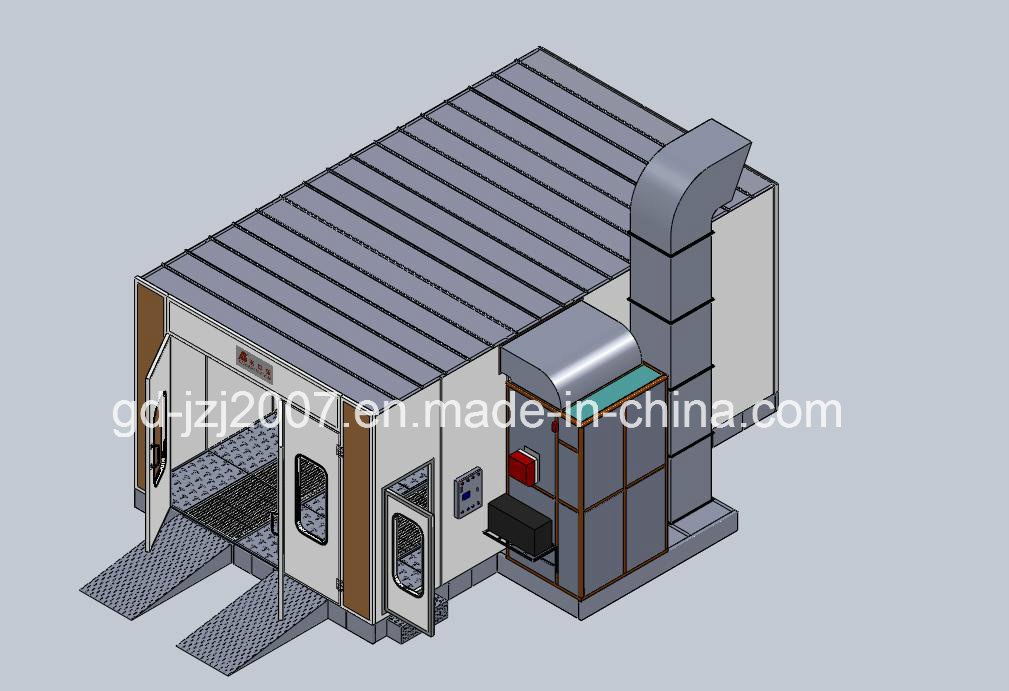

BZB-8200 MODEL paint curing booth
External size(mm)		7000× 5560× 3430
Internal size(mm)		6900× 4000× 2800
Front door		3000(W)× 2700(H)
Total power		10kw

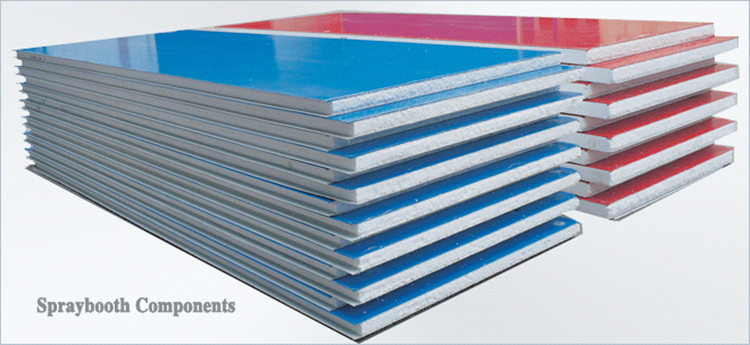

Cabin System	1. Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Compound Construction, Anti-flame and Heat-Insulation, Handiwork Door, Galvanized Steel Roof Panel
	2. Basement:	Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction, Two Ramps made of embossed plate, each 600mm wide.
Air Circulation System	Inlet Fan	Capacity: 12000.3 /h
		Power: 4kw/set
		Quantity: 2sets
	Air Volume: 24000.3 /h; Air Speed: 0.35m/h
Air Purification system	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μ m. Ceiling Filter Capture Granules Bigger than 5μ m. The floor filter is fiberglass filter. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP≤ 1.4mg/m3
Heating System	1. Burner	Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h.
	2. Heat Energy Converters	Stainless Steel, Argon Arc Welding. The Heat Exchange Rare 85%
	Max Temp: 80 centi degre, Heating Time: 4-6min(20-60centi degree), Fuel Consumption: 4-6kg/vehicle, 10N Damp Motor
Lighting System	Ceiling Light: 32 pcs 36w Philips Lamp; 800Lux
Electronic Controlling System	Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental system	optional environmental cabin

Prod Model:	BZB-8200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
