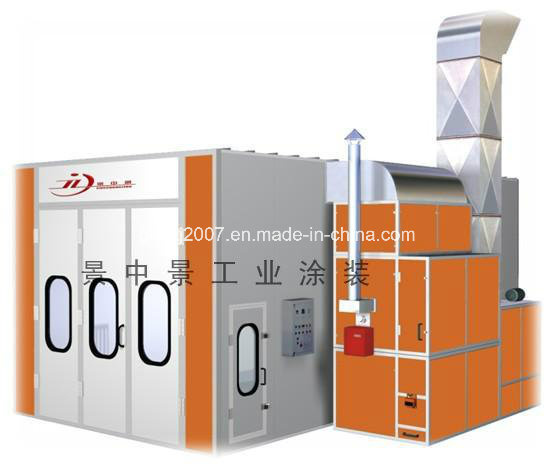

Good Quality Customized Industrial Paint Booth Car Spray Booth

Name: Good Quality Customized Industrial Paint Booth Car Spray Booth
Brand: ibuyautoparts.com
SKU: 698898255
Availability: InStock
Rating: 4.8 (94 reviews)

Price:	US $ 5500-19780/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

BUS SPRAY BOOTH:
SPECIAL DESIGN for high quality required clients;
Ensuring nice ventilation effects and reach a high level of safety requirement;
Design and manufacturing customized paint booth for all types of vehicles.

Consistent with international shipping packaging, loaded in containers.

Spray booth configuration table
Outside size(L× W× H)		9140× 6200× 4800(mm)
Inside size(L× W× H)		9000× 4500× 4000(mm)
Cabin System	EPS colorful steel skin heat insulated panel, 70mm thick; the thick of colorful steel is 0.476mm; Ceiling panel: 50mm thick EPS panel. shape steel frme. The size of front door(W× H): 3500mm× 3500mm.
	full grid, adjustable height, galvanized steel sheet construction, two rows of grilles, three rows of indented plate. three embossed steel ramps
Circulation system	Inlet fan: two sets double-intake centrifugal fan. Model: YDW-5.6M; capacity: 20000 m3/h/per set; pressure: 825Pa; velocity: 900r/min; power: 7.5kw/per set; quantity: 2sets
	Outlet fan: one set big blade motor-outside fan, Model: 4-82-6.3E; capacity: 35128m3/h; pressure: 816Pa; power: 11KW; quantity: 1set
	The circulation cabin are made of square steel tubes and steel plate. the exhaust outlet with a adjustable valve. exhaust duct are made of galvanized steel plate and flange
	air speed: 0.4 m/s; air recycling times: 343 time/h
Purification system	dual filtering structure, the primary can capture granules larger than 10μ m, ceiling filters capture granules larger than 4μ m. Its filtering rate reaches 98%. air pressure gauge, TSP≤ 1.2mg/m3
Heating system	Italy Riello RG5S oil burner, 260000Kcal/h, heating exchanger, stainless steel, argon arc welding.
	20N damper motor, automatically adjust from spraying to baking paint
	Max temp; 80centi degree; heating times: 8~12min(20~60centi degree); fuel consumption: 12~25Kg/h
Lighting system	ceiling light: 40 pcs 36W philips lamp. Bottom light; 24 pcs 36W philips lamp. ≥ 800 Lux
Control system	PLC Controlling, Soft Touching Button, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental system	multi-layer fiberglass filter, active-carbin.
Total Power	29.5KW

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
