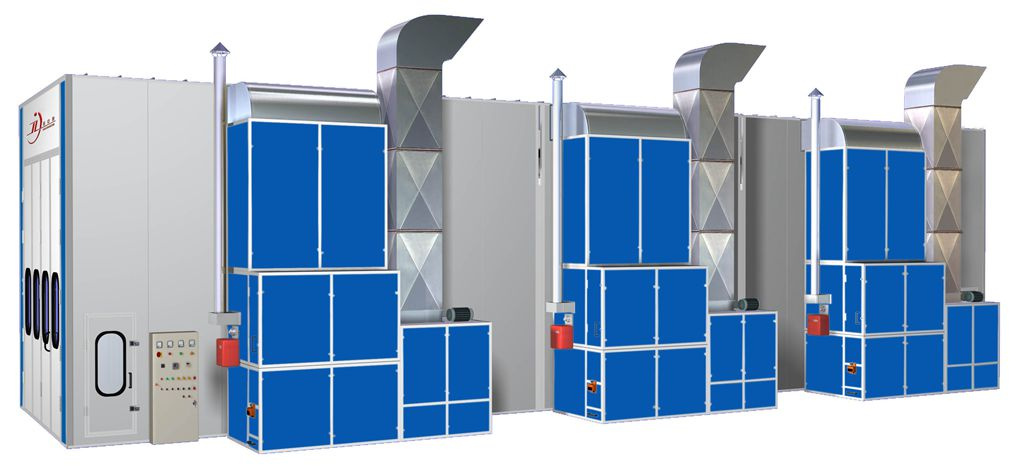

Good Quality Bus Paint Oven Large Spray Booth

Name: Good Quality Bus Paint Oven Large Spray Booth
Brand: ibuyautoparts.com
SKU: 709165025
Availability: InStock
Rating: 4.4 (45 reviews)

Price:	US $ 8820-32600/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Specifications Bus paint oven(LY-12-45):
1. Inside dimension: 12000*4500*3500mm
2. One year guarantee for spray booth
3. Competitive price

Specification:



Inside dimension	1200045003500mm(LWH)
Outside dimension	1215060964100mm(LWH)
Pit	without basement,2 rows of pits in the ground for exhaust air, dimension of each pit is 10000750mm(LW)
Main door	3 folds,33003400mm(WH), colour:white
Personal door	2 fold, 6002000mm(WH), insulation is polystyrene, colour: white
Room body	thickness:75mm, width:1150mm, tongue and groove structure, made by 0.426mm colour steel with polystyrene inside, colour:white
Lighting	ceiling lights:16 units3pcs=48pcs36w; side lights:10units4pcs=40pcs36w, vertically set
Generator setting	intake air from side upper direction, exhaust air from back upper direction, quadrate steel frame, outside is white coated steel, inside is galvanized steel
Intake and exhaust air system	4*4kw double intake centrifugal fans for intake air, model YDW 4.5L, air capacity is 12500m3/h for each fan.

	2*7.5kw double intake centrifugal fan for exhaust air, model TAE-500H, belt-drive,air capacity is 20000m3/h for each fan
Heating system	2 pcs RIELLO G20 oil burners, heating productivity is 400000Kcal/h, 2 stainless steel heat exchanger, 2 electric damper from spraying to baking cycle. Highest working temperature 80 degree
Filtering system	pre-filter, high efficiency filter, floor filter, M-shape activated carbon filter, extract fibreglass filter replaced by level side
Control panel	spraying, heat spraying, baking, time setting, lighting switch, failure indicator, temperature controller, power supply switch, emergency stop, hour meter, temperature limit controller for spray booth
Power supply	optional
Free air speed	≥0.25m/s
Illuminance	≥450LUX
Total power	34KW

Prod Model:	BZB-FB-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colors:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
