| Prod Model: |
BZB-FB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White,Red,Orange,Blue....... |
| Voltage: |
as Require |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Bzb |
Product Description

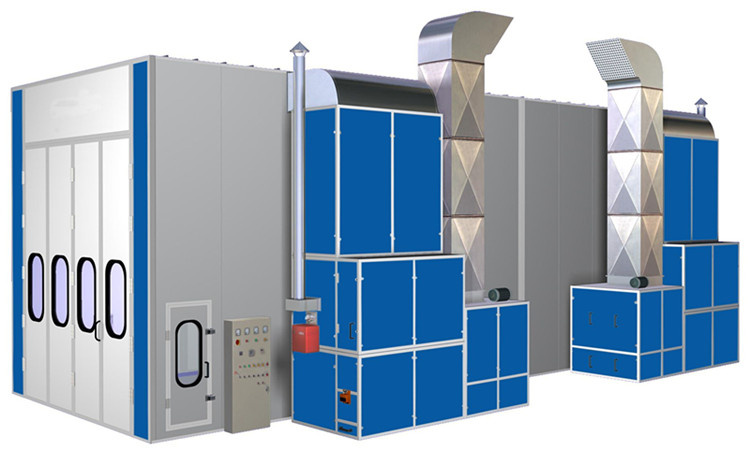

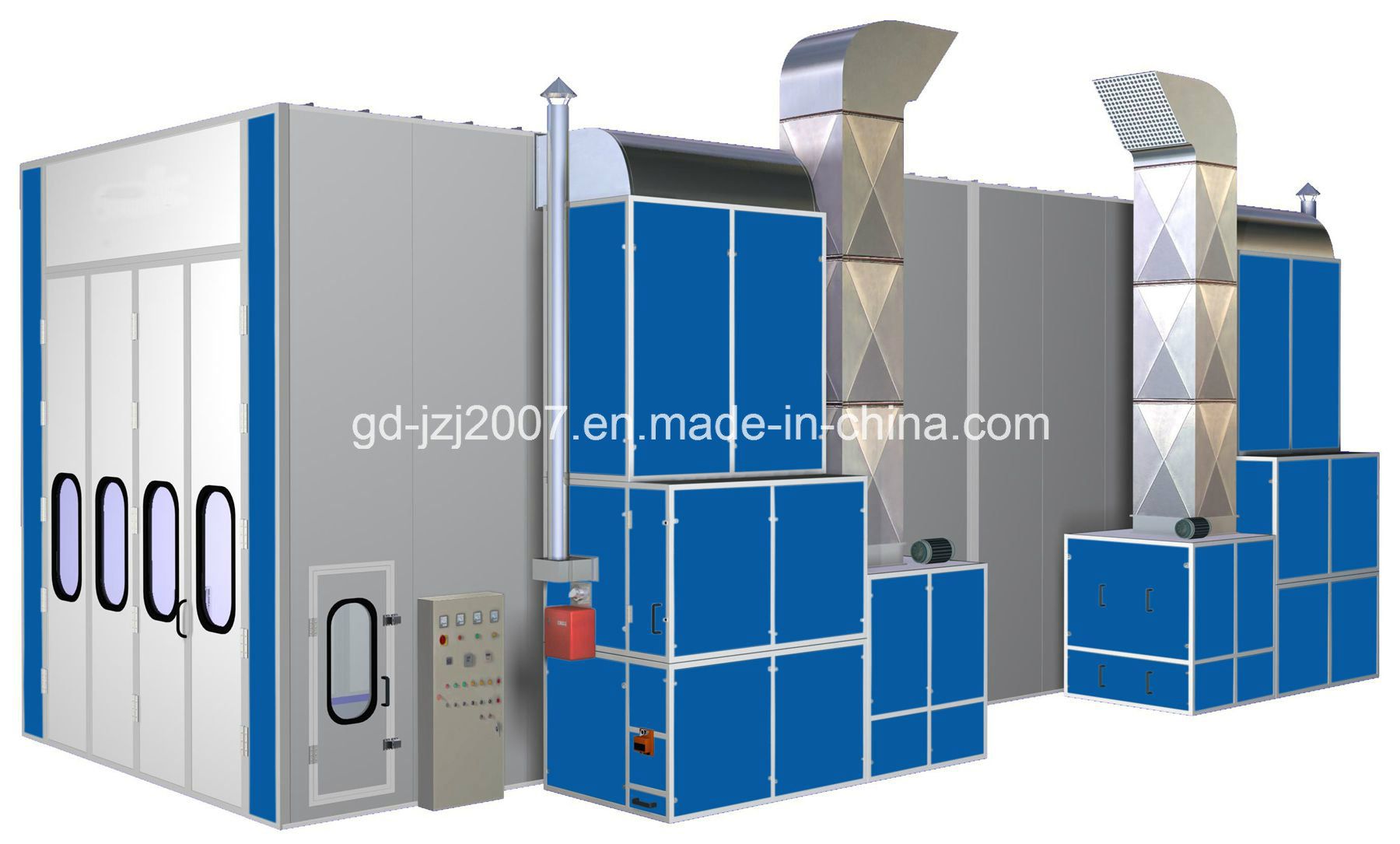

This kind of big paint booth is fit for buses and trucks or any other vehicles you want. If you are interested in and want more information about it, please contact us. Also, we can design the booth according to your request.
| External Size (mm) | 15150x6750x5800 |
| Internal Size (mm) | 15000x5000x5000 |
| Cabin System | 1.Wallboard | EPS (expanded polystyrene)colorful steel boards,the side wallboard 75mm thick, the roof panel 50mm thick, one-time compound-formed, anti-flame and heat-containing. |
|
|
| 2.The outside frames are decorated by galvanized steel sheets; the front door frames are decorated by aluminum-alloy components |
|
| 3.Basement | Framework of zinc-plated steel plate, zinc-plated square steel pipe assemble, The floor consist of flat steel grids. |
|
| Air Intake and Exhaust System | 1.Tow sets of air intake and exhaust systems; The air intake ventilator: Centrifugal insulated ventilator, using of Siemans YDW technology |
|
| Inhaling Ventilator | Model: YDW -5.6S | Exhaust Ventilator | Model: 4-82-6.3E |
| Blower capacity: 15000m 3 /h | Blower capacity: 27587m 3 /h |
| Pressure: 810Pa | Pressure: 1079Pa |
| Rolling speed: 900rpm | Rolling speed: 1400rpm |
| Power: 5.5kw | Power: 11kw |
| Quantity: 4 sets | Quantity: 2sets |
| 2.The circulation system covers two sets of automatic valves, matching Swiss genuine 18 newton actuator. |
| 3.The generator cabinet is made of formed steel framework |
| Air Purification System | Adopt dual filtering structure, the rough structure, can capture granules larger than 15 μm. It is fixed in the joint of automatic valve cabinet and burning cabinet, matching a movable door for being replaced conveniently. The fine structure features multilayer structure so that it block away granules bigger than 5μm. It is set as interior-hook block flat style at the bottom of the static pressure room. The whole purification system has capacity of large volume of dust, small air block and long durability. Its filtering rate reaches 98% |
|
|
|
|
|
|
|
| Heating System | 1.Burner | It takes Italy Baite brand,BT26 model light diesel burner which generates 260 thousand Kilocalories heat energy each hour;the consumption of oil is 18~25kg/h |
|
|
| 2.Heat Energy Converters | Welded by stainless steel by argon arc welding. Its structure is rational, safe and reliable, and its heat exchange area is large, heat utilization rate is high. The heat exchange rate reaches 85% |
|
|
| Light System | The light boxes present a angle of 45 . against the wallboard. The system consists of 36W Philips lights and electron ballasts; Selected: The wall lights cover 36W Philips lights and electron ballasts. The illumination in the room is above 800 Lux |
|
|
| Electric controlling system | Made up of the selected electronic apparatuses as all operational and controlling components, which are of supreme quality. |
|
| Environmental Conversation System | It adopt mutilple mixing fog filter device to ensure qualified exhaust according to the relevant state standards Selected: the active-carbon capture device |
|

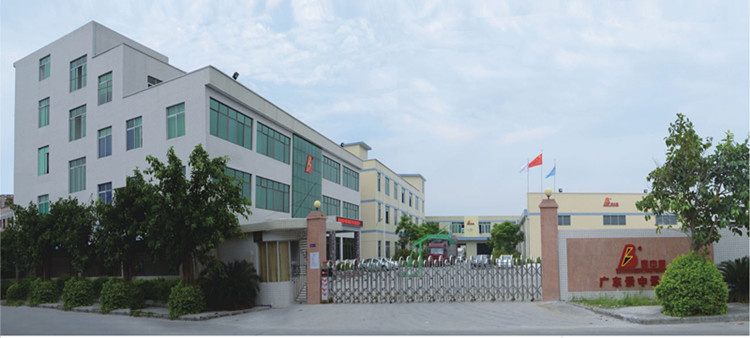

Factory:

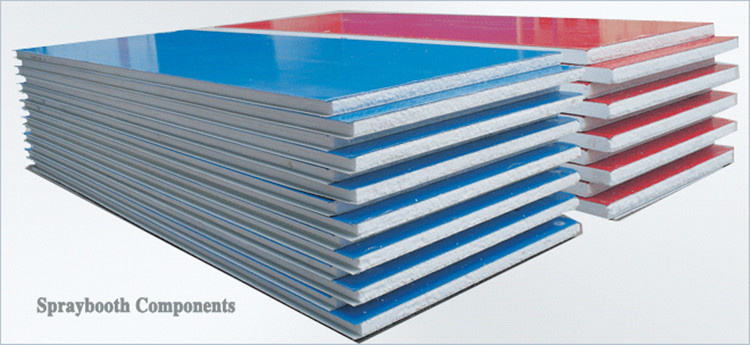

Colorful EPS panel:
Certifications:
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
