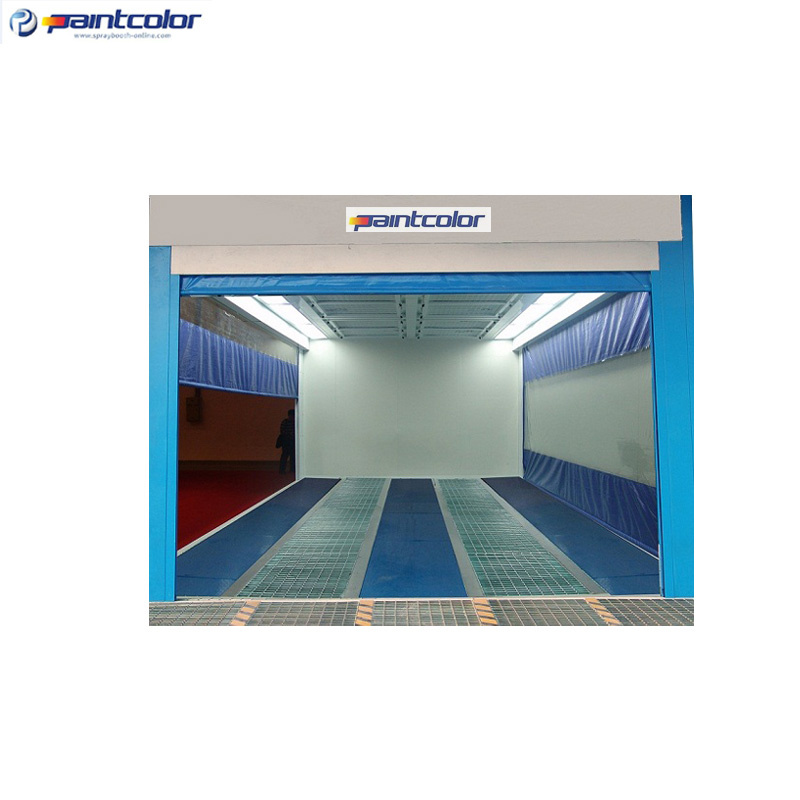

Model: PC-800B
1. Function: It can provide car surface grinding operation with clean health work space, a complete set of equipment with functions of ventilation, air purification, waste gas treatment and so on; Adapt to the fast repair paint.
2. Composition: mainly by the body system, lighting system, exhaust system, air purification system, exhaust gas treatment system and control system;
3. Requirement for workshop: without special requirements, as long as the field enough to install; according to the workshop structure, choose to posts or condole top installation;
4. Use PVC curtain: 1. In order to save cost. 2. In order to improve the polish efficiency, curtain can fold for vehicle anywhere. 3. In order to enhance the light inside the room, middle curtain is transparent can direct daylighting;
SPECIFICATON:
Outside dimension: L7650*W4106*H3430mm
Inside dimension: L6400*W4000*H2650mm
Plenum dimension: L6400*W4000*H450mm
Basement: 280mm basement;all grills;made of galvanize-rolled sheets
Ramp: 2pcs,dimension L1750×W600(mm)
Illumination system: ceiling light:36W*4*8units=32pcs
Glass: tempered glass
Air ventilation system: 1. 5.5kw one set inner motor centrifugal fan with air volume 15400m3/h
2. 4kw one set inner motor centrifugal fan with air volume 15400m3/h
3. electric damper to control the air volume
Cabin system: 1. air intake plenum is made of cold-rolled sheets
2. ceiling boards are made of galvanized steel sheets
3. electric rolling curtains around the sides and in the front
4. 50mm EPS panels at the back wall
Generator system: rear exhaust;square tube frame;power coated
Heat system: without
Filtration system: primary filter;ceiling filter;glass fiber filter
Control system: multi-protection of over current, excess load, short circuit, default phase, with the fan switch, emergency stop button and sanding switch
Installation way: sling hoist or square tube support
Voltage frequency: 380V/3P or 220V/1P, 50Hz
Total power: 9.5KW
