1. CE, TUV, SGS certificate approval
2. Motor, inverter and main electrical components are original Siemens
3. 70mm Rock wool wall panel with better heating preservation and fireproofing
4. Heating energy recycling system matched

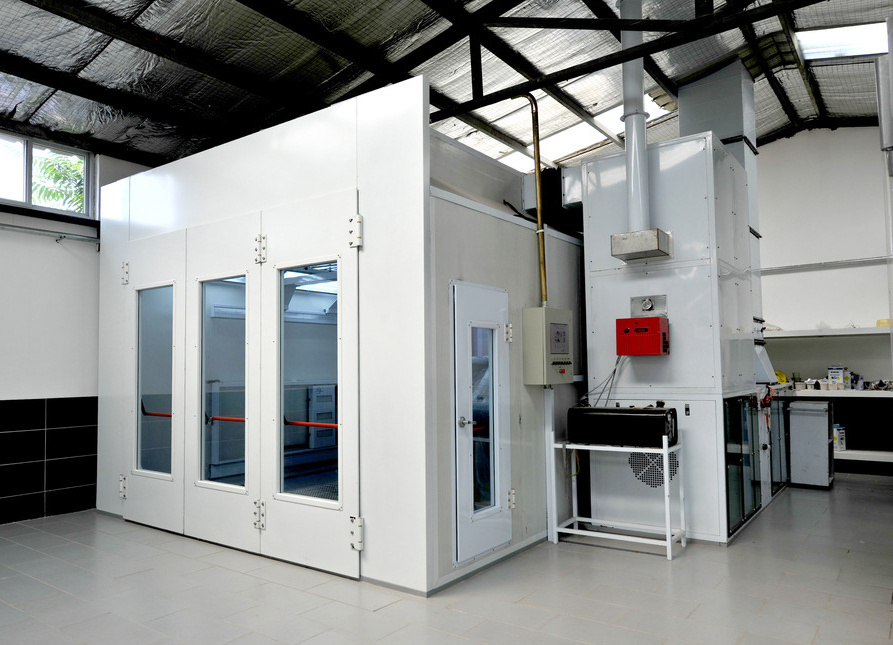

High-end Spray booth PC-EU-3H
Automotive spray booth/painting room/car oven/paint booth/car paint
5. Professional spray booth manufacturer
6. Competitive price with best quality
7. Timely sell service and lifelong after service work
8. Prompt delivery and effective loading
| Outside size (L x W x H) | 7000 x 5356 x 3430 mm |
| Inside size (L x W x H) | 6900 x 4000 x 2650 mm |
| Total power | 17kw |
| Room body | Wallboard | Fireproof insulation rock wool panel, thickness: 70mm, High quality double color sheet 0.6mm construction |
| Roof panel | Fireproof insulation rock wool panel, thickness: 50mm, High quality double color sheet 0.6mm construction |
| Static pressure room | 500mm height |
| Entrance door | 1set, 3-fold with size: 3000x2650 mm (W x H), observation safety glass window |
| Operator's door | 1set, 800x2000mm (W x H), observation safety glass window, the door closed automatically |
| Generator(aggregat) | Quadrate steel frame, powder coating steel |
| Basement | Foundation | Solid steel structure platform, full twist grids |
| Surface area of foundation | 27 M²(full galvanized grids) |
| Metal basement | 330mm height with the better ventilation effect |
| Drive-in ramps | 3pcs big drive-in ramps, with size: 900x2300mm(W x L), diamond plate structure. |
| Lighting system | Ceiling lighting | 8units, each 4 x 36 W, total 1152w , Philips Lamp, IP54 grade. |
| Side lighting | 8units, each 2 x 36 W, total 576w , Philips Lamp, IP54 grade. |
| Illuminance | ≥900 LUX |
| Filtration system | Pre-filter | Filtration class G3, dust holding capacity 500g/m3 |
| Ceiling filter | Filtration class F5, dust holding capacity 520g/m3 |
| Bottom filter | Fibreglass paint-stop filter, dust holding capacity 3200-3600g/m3 |
| Exhaust filter | Active carbon bag filter |
| Ventilation system | Inlet fan (Direct drive) | Big impeller turbo fan, 7.5KW-6P, Original Germany Siemens motor |
| Outlet fan (Direct drive) | Big impeller turbo fan, 7.5KW-6P, Original Germany Siemens motor |
| Paint to bake exchange system | Pressure adjustment control cylinder driven damper exchange |
| Total fan capacity | 25.000m³/h |
| Air flow speed | 0.23m/s in empty booth, 0.25-0.35m/s in loaded booth |
| Air duct system | Inlet air duct | 1pcs manual damper, 4m straight high with 1pcs 135° elbow |
| Outlet air duct | 1pcs manual damper, 4m straight high with 1pcs flop damper |
| Duct material | Galvanized sheet with ribbing |
| Heating system | Heating exchanger material | SUS304 high efficient heat-resistant stainless steel, argon arc welding |
| Heating exchanger capacity | 300KW(260.000Kcal/H) |
| Burner model | Italy REILLO one-range diesel burner RG5S(260.000kcal/H) |
| Heating time | 3-5 minutes( from 20°C to 60°C) under baking status, the max baking temperature is 80°C |
| Smoke tube | Stainless steel, 4m straight high with 1pcs 45° elbow |
| Control system | Control system | Standard Y/Δ step-down start control system |
| Pressure testing | The pressure gauge indicate the pressure inside cabin |
| Function | Painting, warm painting, baking, emergency stop switch, alarm indication, failure indication, over-temperature alarm indication, baking delay stop protection, fault resistance switch |
|
Guangzhou Paintcolor Mechanical Equipment Co., Ltd. Started in 1999 and was established in 2005. It's an enterprises engaged in the field of surface treatment technology and focused on painting and coating equipment research, development, production and sales. The company is located in China's most developed industrial areas Guangzhou City, Guangdong Province. It takes 20mins to Guangzhou Baiyun International Airport. The new company Foshan Paintcolor Trade Co., Ltd was established in 2017. It's an independent sale center; Elaborate product promotion for better customer experience and service support.
Our main products includes paint booth, car spray booth, industrial paint booth, powder spray booth, auto shower testing booth, sheet metal machines, reciprocating machine, cyclone powder recovery system, powder gun, and powder coating line. Products have SGS and CE certificate.
The company has consistently adhered to the excellent staff, advanced technology and sophisticated equipment, and strict implementation of quality management system ISO900I. With "accurate, reliable, professional" the spirit of the production and service faith, the company has grown in strength and won the customers trust in the past ten years. Currently our products are sold throughout the country 34 provinces, autonomous regions and municipalities, and exported to the United States, Russia, Germany, Ghana, Indonesia and other countries.
We actively participate in industry exchanges and outreach activities. In the long process of development, we have established long-term good relations of cooperation with many large domestic manufacturers, based on our perfect product quality, good performance, and leading technology.
We have confidence to face the future challenge as we do 'customer first, service first'. If you are finding the cooperator-reducing costs, improving quality and persistent service, 'Paintcolor' is one of the best choose you can't miss.
