Automotive Painting Detecting Booth (PC-IS833)
| Price: |
US $ 7000-15000/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T |

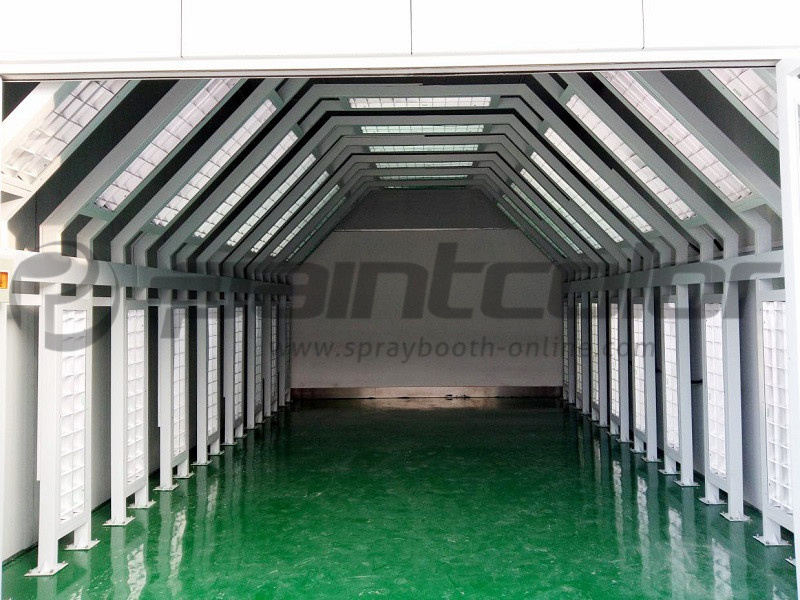

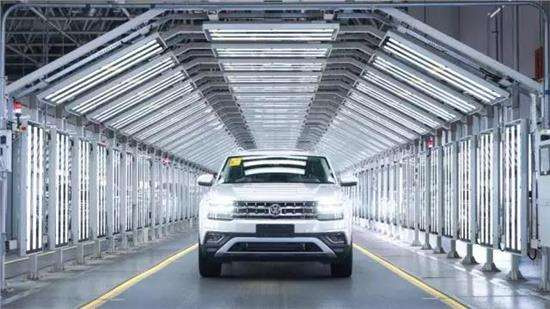

It's mainly used for inspection of defects on the car's surface, which can reduce the glare of the luminaires through the prism. At the same time, it can be obvious spectral transition, make the chromatic aberrations, scratches, tiny holes, orange peel, etc. be found easily. PAINTING INSPECTION BOOTH (PC-IS833)| The outside size | 9300 x 6400 x 4700mm (L x W x H) |
| The entrance size | 6000 x 4500mm (W x H) |
| The structure | - Steel frame structure, equipped with steel reinforcing steel and steel section beams.
- Powder finish.
|
| Inspection light box |

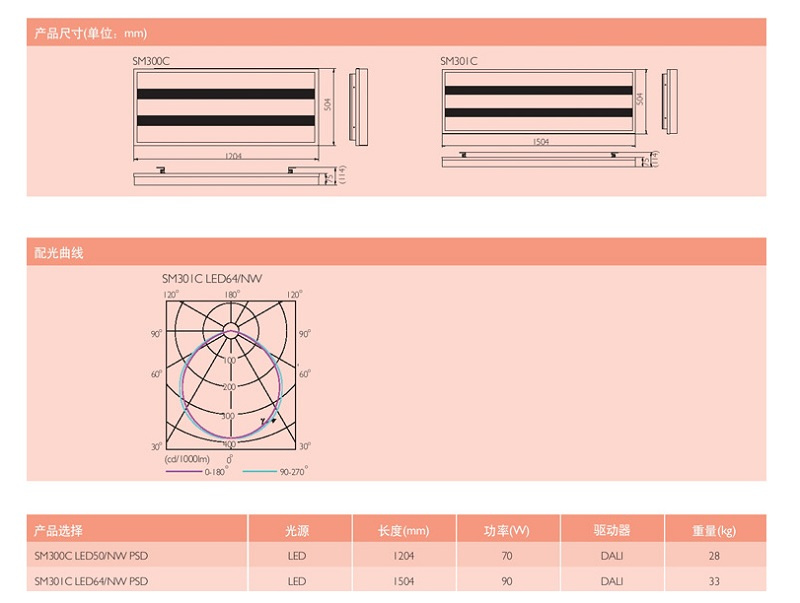

| Name | Prism light box |
| Function | - It's mainly used for inspection of defects on the car's surface, which can reduce the glare of the luminaires through the prism. At the same time, it can be obvious spectral transition, make the chromatic aberrations, scratches, tiny holes, orange peel, etc. be found easily.
- Strip grating light boxes will form the article reflected in car body. If there are any protrusions, such as lack of angle will cause reflection of the change.
- There are brightness controllers equipped on the light box, which can be adapted to the various color on the surface of the car.
|
| Manufacture | - The light box is made of cold-rolled steel sheet metal stamping and welding, equipped with the wiring hole or power outlet, the inside of the box is equipped with the reflective panel, the reflection form is the upper reflection, the lower reflection and the horizontal reflection.
- The main components are the Philips.
- The light box is equipped with the cooling hole and with special installation accessories. Convenient installation, easy maintenance and replacement.
|
| Working voltage | AC200-240V, frequency 50Hz |

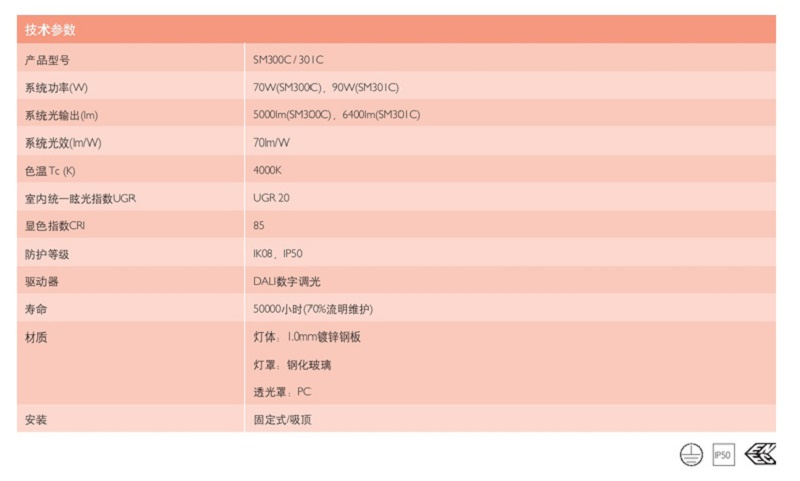

| Rated luminous flux | - 18w ≥ 1800lm,
- the light effect ≥ 100lm/W,
- the light beam angle ≥ 1200,
- The color temperature: sunlight color 5000-6500K
- The color index CRI ≥ 75
- The power factor ≥ 0.95
|
| Number of lights | 96sets x 3pcs = 288pcs, 58W lamp tube |
| Illuminance | ≥ 1400Lux |
Electric control box
| - Button control, lighting switch, intelligent IC power constant current drive
- Open circuit, shot circuit protection, overvoltage, undervoltage protection
- CE certification.
|
| The total power | 18kw |
| Prod Model: |
PC-IS833 |
| The Light Effect: |
≥ 1000m/W |
| The Light Beam Angle: |
≥ 1200 |
| The Color Temperature: |
Sunlight Color 5000-6500K |
| Illuminance: |
≥ 1400 Lux |
| Working Voltage: |
AC200-240V, Frequency 50Hz |
| The Total Power: |
18kw |
| Movable: |
Yes |
| Custom Size: |
Yes |
| Certification: |
SGS |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Automotive Painting Detect |
