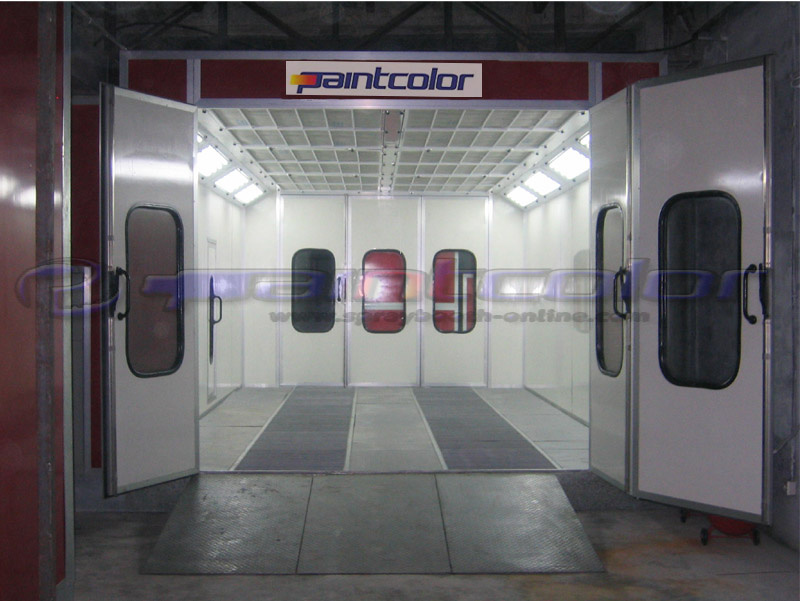

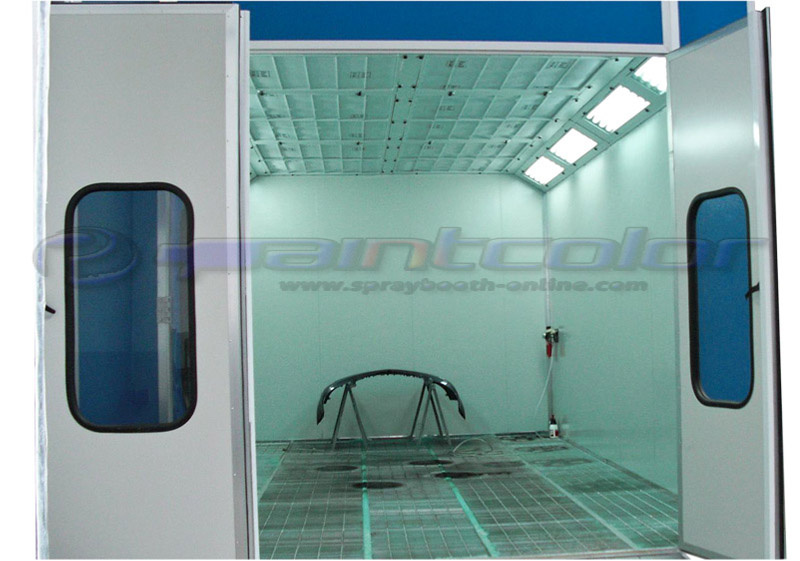

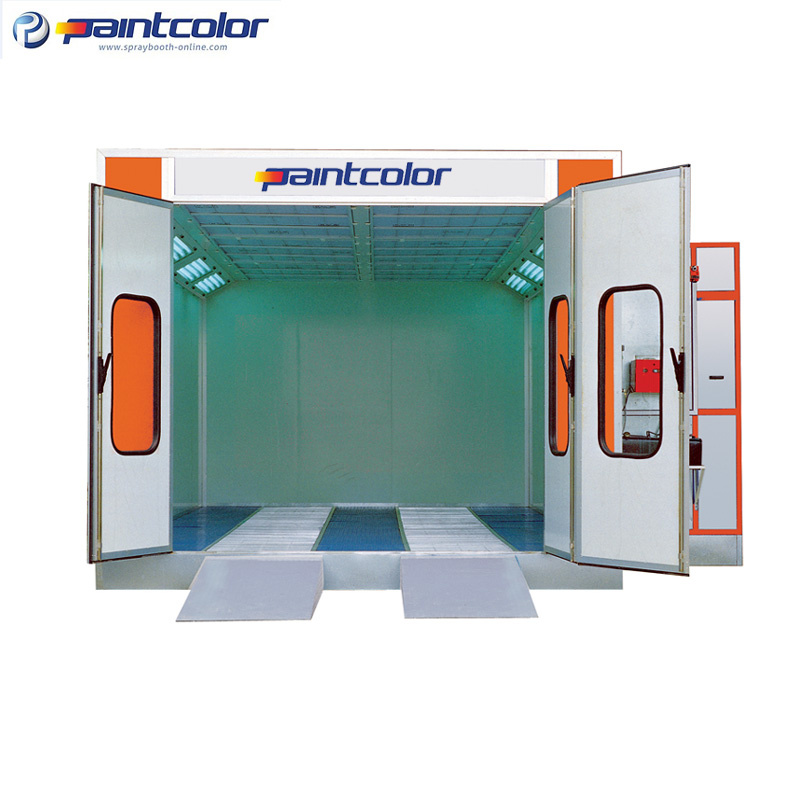

Down Draft Spray Booth (PC06-200)
| Price: |
US $ 5000-7000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Money Gram,Western Union |
Model No: PC06-200Automotive spray booth/painting room/car oven/paint booth/car paintEconomical auto paint booth with stable performance
1. Outside Dimension(L×W×H)mm:7000×5360×3430
2. Inside Dimension(L×W×H)mm:6900×4000×2650
3. Door Dimension(W×H)mm:3000×2600
4. Blast Volume: 24000 m3/h/set
5. Loaded Airflow Velocity m/s:0.25
6. Air Replacement Frequency time/h:280
7. Maximum Working Temperature:80ºC
8. Heating Time(20ºC—80ºC)/min:5-6
9. Luminance: 800(Lux)
10. Noise: ≤85dB
11. TSP:≤1.4
12. Total Power:9kw
| Outside size | 7000× 5360 × 3430mm ( L× W× H ) |
| inside size | 6900 × 4000 × 2650mm ( L× W× H ) |
| Main door | 3000× 2600 mm ( W× H ), folding door, 3 folds, made by EPS panel with oval-shaped glass window. |
| Escape door | 1 unit, 650× 1800mm ( W× H ). |
| Wall Panels | Thickness: 50mm, tongue and groove structure, 50mm thick EPS insulation inside. |
| Roof Plates | Galvanized steel |
| Lighting System | Ceiling Lights: 8Units × 4Pcs=32Pcs × 36W, Philips lamps, powered coated light box |
| Illumination: above 800LUX |
| Basement | Galvanized steel assemble, 280mm high, quadrate steel support, 2 rows of grilles made by flat bar and round steel, 3 rows of indented plates. |
| Ramps: 600× 1800mm/pc, external setting, 2pcs |

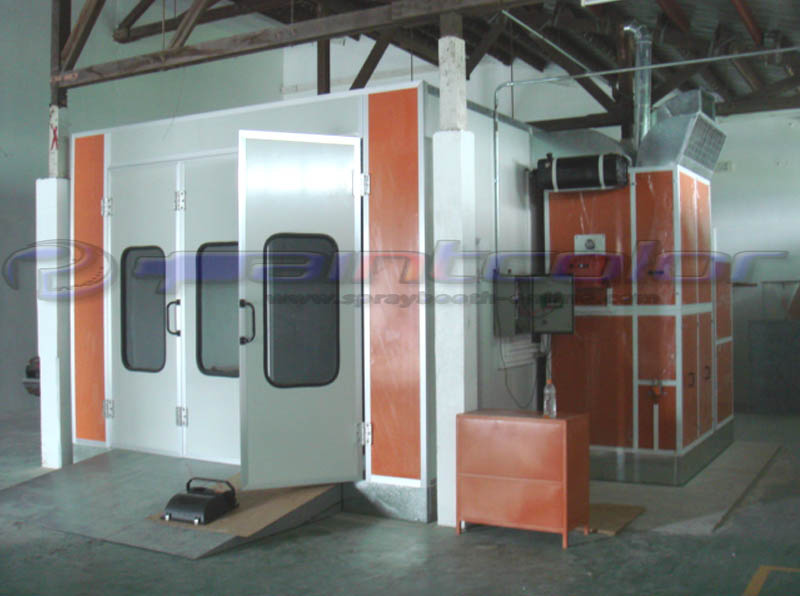

| Generator setting | Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; no powder coating, galvanized steel inside, filled with heat preservation material in the middle. |
| Intake and Exhaust air system | 2× 4 KW double-intake centrifugal fans for intake air, total air capacity: 24000m 3 /h |
| exhaust fan for optional |
| Heating system | RIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 200000kcal/h. |
| Filtering system | Pre-filter, ceiling filter, fibreglass filter, exhaust fitler |
| Control system | Spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter |
| Note | gas burner for optional |
| Prod Model: |
PC06-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V/3p, 220V/1p, and Special Voltages |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Color: |
White or Blue |
| Air Intake: |
2X4kw Double-Intake Centrifugal Fan |
| Heating: |
G20 Diesel Burner/ GS20 Gas Burner |
| Wall Panel: |
50mm EPS Panel |
| Paint Mist Treatment: |
Dry-type |
| Heating Mode: |
Diesel |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Automotive Spray Booth |
| Airflow Direction: |
Full Downdraft Airflow Way |
