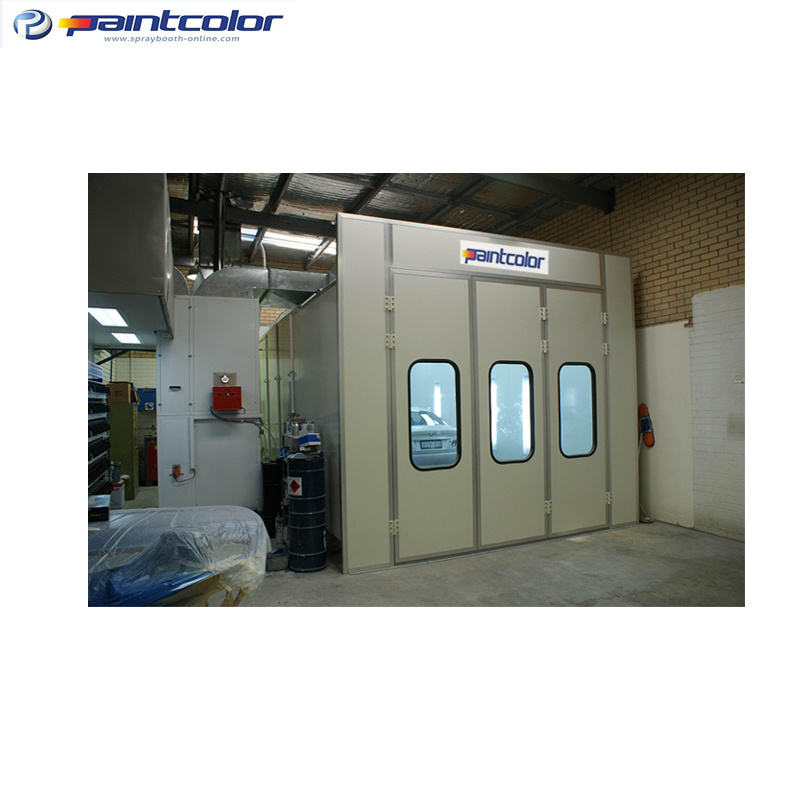

Oceania Standard Popular Car Spray Booth (PC-AU-1A)
Price: |
US $ 8000-12000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
T/T,Money Gram,Western Union |
1. Australia area popular model with explosion-proof motors.2. Safety design with lamp box opened from outside.3. 0.6mm steel plate for heating preservation and fireproofing.Model No: PC-AU-1AAutomotive spray booth/painting room/car oven/paint booth/car paint4. CE certificate approval5. Professional spray booth manufacturer6. Competitive price with best quality7. Timely sell service and lifelong after service work8. Prompt delivery and effective loadingOutside size (L x W x H) | 7000 x 5356 x 3430 mm |
Inside size (L x W x H) | 6900 x 4000 x 2650 mm |
Total power | 17kw |
Room body | Wallboard | EPS panel, thickness: 50mm, High quality double color sheet 0.6mm construction |
Roof panel | 0.8mm Galvanized sheet |
Static pressure room | 500mm height |
Entrance door | 1set, 3-fold with size: 3000x2650 mm (W x H), observation safety glass window, one leaf door is double opened |
Operator's door | 1set, 800x1800mm (W x H), observation safety glass window, the door closed automatically |
All bounding material | Aluminum alloy |
Generator(aggregat) | Quadrate steel frame, powder coating steel |
Basement | Foundation | Solid steel structure platform with grids and indented plates |
Surface area of foundation | 10.6M²(twist grids) |
Metal basement | 1.2δ Galvanized base steel, height: 280mm |
Drive-in ramps | 3pcs drive-in ramps, with size: 800x1750mm(W x L), diamond plate structure. |
Lighting system | Open way | Outside open |
Structure | All sealed |
Ceiling lighting | 8units, each 4 x 36W, total 1152w , Philips Lamp, IP54 grade. |
Side lighting (vertical) | 8units, each 2 x 36W, total 576w , Philips Lamp, IP54 grade. |
Glass | Tempered glass |
Surface treatment | Powder coating |
Illuminance | ≥900 LUX |
Filtration system | Pre-filter | Filtration class G3, dust holding capacity 500g/m3 |
Ceiling filter | Filtration class F5, dust holding capacity 520g/m3 |
Bottom filter | Fibreglass paint-stop filter, dust holding capacity 3200-3600g/m3 |
Exhaust filter | Active carbon bag filter |
Ventilation system | Inlet fan (belt drive) | Big impeller turbo fan, 7.5KW, explosion-proof motor (EX) |
Outlet fan (belt drive) | Big impeller turbo fan, 7.5KW, explosion-proof motor (EX) |
Paint to bake exchange system | Pressure adjustment control cylinder driven damper exchange |
Total fan capacity | 25.000m³/h |
Air flow speed | 0.23m/s in empty booth, 0.25-0.35m/s in loaded booth |
Air duct system | Inlet air duct | 1pcs air inlet mouth |
Outlet air duct | 1pcs manual damper, 4m straight high with 1pcs flop damper |
Duct size | 800x800x1000mm |
Duct material | Galvanized sheet with ribbing |
Heating system | Heating exchanger material | SUS304 high efficient heat-resistant stainless steel, argon arc welding |
Heating exchanger capacity | 230KW(200.000Kcal/H) |
Burner model | Italy REILLO one-range diesel burner G20 |
Heating time | 5-7 minutes( from 20°C to 60°C) under baking status, the max baking temperature is 80°C |
Smoke tube | Stainless steel, Φ180mm, 4m straight high with 1pcs 45° elbow |
Control system | Electric components | Schneider |
Control system | Standard Y/Δ step-down start control system |
Pressure testing | The pressure gauge indicate the pressure inside cabin |
Function | Painting, warm painting, baking, emergency stop switch, alarm indication, failure indication, over-temperature alarm indication, baking delay stop protection, fault resistance switch |
|
Prod Model: |
PC-AU-1A |
Markets: |
Eastern Europe,Oceania,Eastern Asia,Western Europe |
Voltage: |
415V, 3p, 50Hz |
Warranty Time: |
2 Years |
Service Time: |
Lifelong Maintenance |
Color: |
White, Blue, Grey, Red, Orange |
Air Intake: |
1X7.5kw Turbo Fan with Belt Drive |
Air Exhaust: |
1X7.5kw Turbo Fan with Belt Drive |
Heating: |
G20 Diesel Burner/ GS20 Gas Burner |
Wall Panel: |
50mm EPS with 0.6mm Thickness Steel Cover |
Loading Container: |
3sets Full in 40 Container |
Electrical Component: |
Schneider |
Certification: |
CE |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Type: |
Automotive Spray Booth |
Brand: |
Paintcolor |
Airflow Direction: |
Full Downdraft Airflow Way |
