Customized High Quality Spray Paint Booth in China

Name: Customized High Quality Spray Paint Booth in China
Brand: ibuyautoparts.com
SKU: 735241315
Availability: InStock
Rating: 4.6 (36 reviews)

Price:	US $ 3500-19780/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

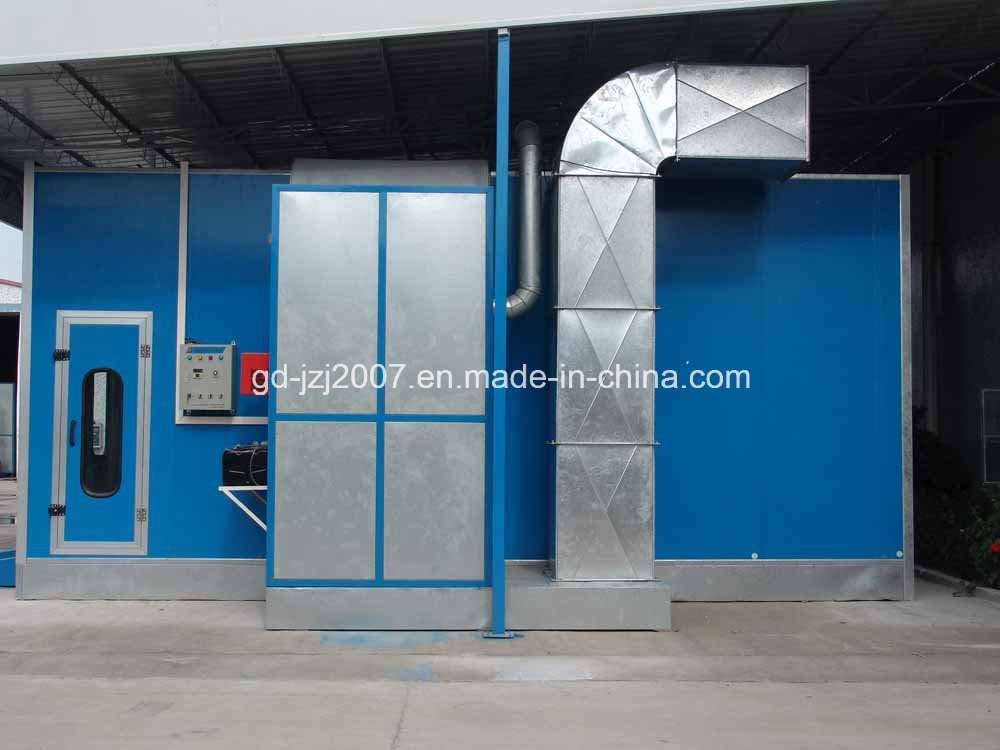

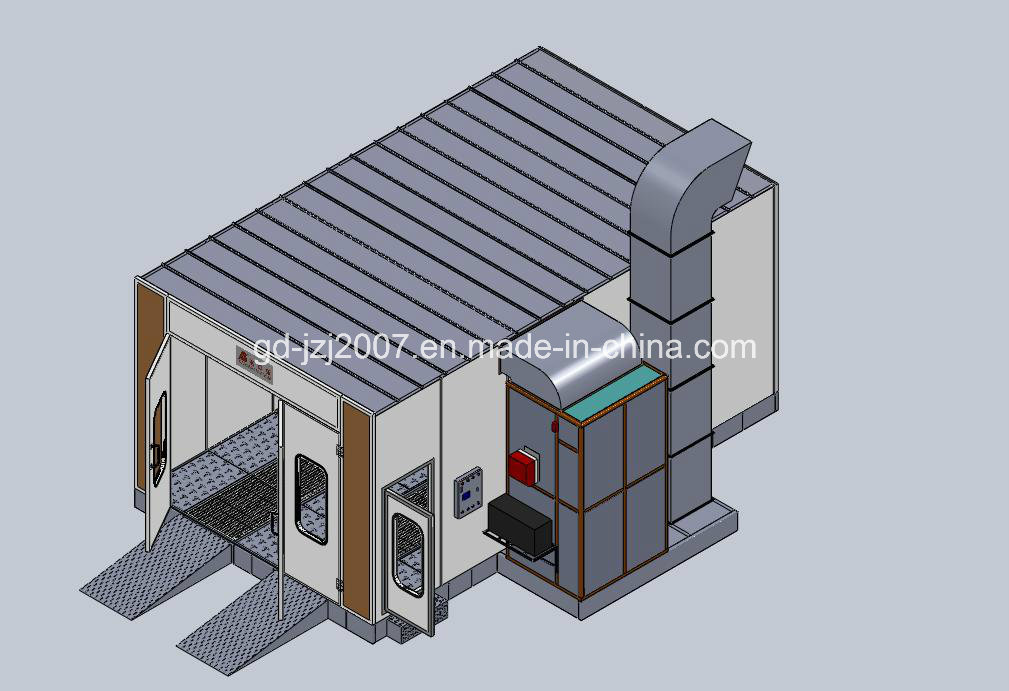

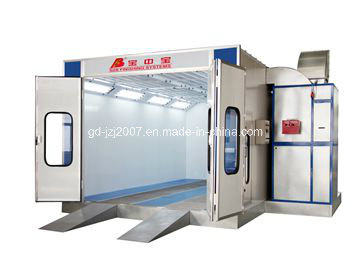

Paint spray chamber: Producing specially designed Painting and Drying spray booths suitable for your painting work of all types of vehicles; BZB brand spray booth is with a concept of a customer-focused attitude

Cabin System	1. Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 70mm Thick, Tongue & Groove Style Compound Construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation
	4. Basement:	Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps.
Air Circulation System	Inlet Turbine Fan		Capacity: 23450m 3 /h	Outlet Turbine Fan	Capacity: 30000m 3 /h
			Power: 9kw		Power: 7.5kw
			Quantity: 1set		Quantity: 1set
			54 pcs Ceiling Nozzles with 3 Centrifugal Fans for Drying Water Paint
	Air Volume: 37000m 3 /h; Air Speed: 0.5m/s
Air Purification system	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μ m. Ceiling Filter Capture Granules Bigger than 5μ m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP≤ 1.2mg/m 3
Heating System	1. Burner		Italy Riello Brand, RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor
	2. Heat Energy Converters		Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%
	Max Temp: 80. C, Heating Time: 4-5min(20-60. C), Fuel Consumption: 4-6kg/vehicle
Lighting System	Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 32 pcs 20w Philips Lamp, 1100 Lux
Electric Controlling System	PLC Controlling, Soft Touching Botton, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental Conversation System		Multi-Layer Fiberglasss Filter

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
