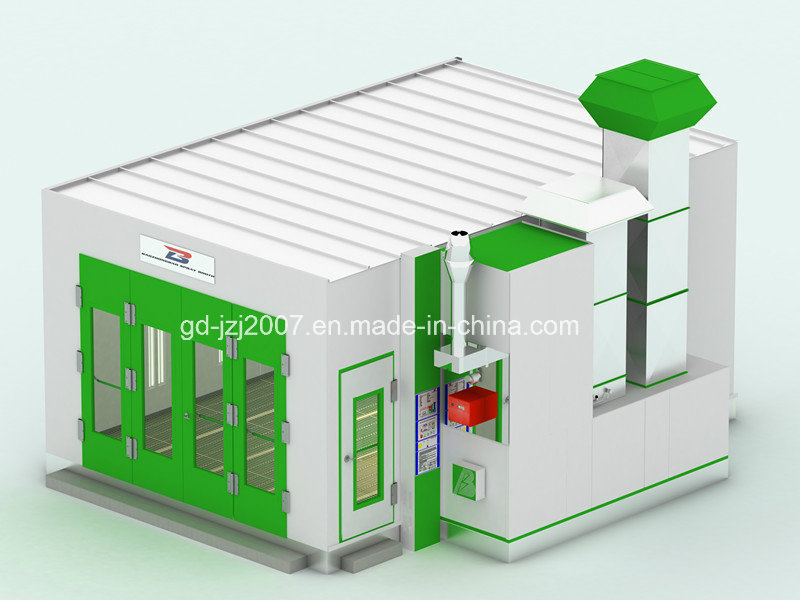

Customized High Quality Hot Sale Car Spray Paint Booth

Outside Size: (mm) 7000x5500x3450 Front Door: (mm) 3000(w)x2600(h)
Inside Size: (mm) 6900x4000x2650 Total Power: (km) 17.7

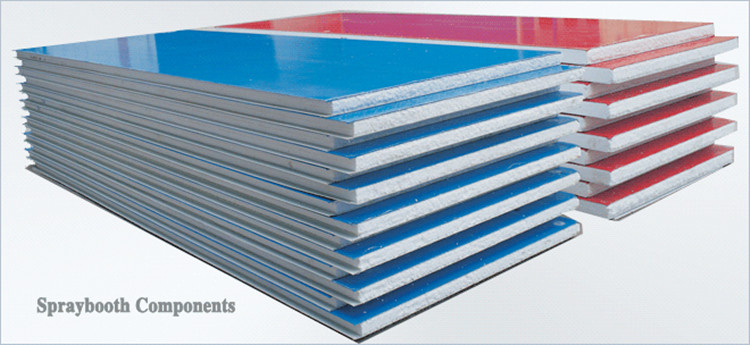

Cabin System Wallboard EPS (epispastics polystyrene)Colorful Steel Skin Boards, 70mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation

Basement Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps.

Air Circulation System Inhaling Ventilator Model: YDW 4.5L Exhaust Ventilator Model: YDW 5.6M
Blower Capacity: 14000m3/h Blower Capacity: 21000m3/h
Pressure: 800Pa Pressure: 800Pa
Rolling Speed: 940rpm Rolling Speed: 900rpm
Power: 4kw Power: 7.5kw
Quantity: 2 sets Quantity: 1set
Air Volume: 28000m3/h; Air Speed: 0.4m/s
Air Purification System Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Gauge, TSP≤1.4mg/m3

Heating System Burner Italy Riello Brand, RG 5s Diesel Burner, 200000Kcal/h, 20N Damp Motor
Heat Energy Converter Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%

Max Temp: 80. C, Heating Time: 4-5min(20-60), Fuel Consumption: 4-5kg/vehicle

Light System Ceiling Light: 32 PCS 36w Philips Lamp; Bottom Light: 16 PCS 36w Philips Lamp, 1000 Lux
Electric Controlling System Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm

Environmental System Multi-Layer Fiberglasss Filter

Some parts of customed spray booth:
