China Supplier Hot Sell Auto Painting Spray Booth/Painting Room with Filter

Name: China Supplier Hot Sell Auto Painting Spray Booth/Painting Room with Filter
Brand: ibuyautoparts.com
SKU: 732912732
Availability: InStock
Rating: 4.4 (125 reviews)

Price:	US $ 8820-11350/Set
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

BZB brand paint room:We are the most professional spray booth manufacturer in China. we have been manufacturing spray booth for 12 years.

Model: BZB-T8000
Delivery Time: 10 days after order is placed.
Packing terms: Paper Scrip&Bubble plastic paper
Terms of payment: 30% T/T in advance, another 70% T/T before the delivery from
the factory

BZB-T8000 SPRAY BOOTH
Outside Size:(mm)	7000x5360x3430	Front Door:(mm)	3000(w)x2700(h)
Inside Size:(mm)	6900x4000x2800	Total Power:(kw)	17

Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame ,Anti-flame and Heat-Insulation


	Basement		Galvanized steel sheet and square steel pipe assembling Grid & embossed steel plate, Embossed Steel Ramps.

Air Circulation System	Inhaling Ventilator		Model: DDF 610	Exhaust Ventilator	Model: DDF 610
			Blower Capacity: 25000m3/h		Blower Capacity:25000m3/h
			Pressure: 650Pa		Pressure: 650Pa
			Rolling Speed: 1750rpm		Rolling Speed: 1750rpm
			Power: 7.5kw		Power: 7.5kw
			Quantity: 1 sets		Quantity: 1set
	Air Volume: 25000m3/h; Air Speed: 0.35m/s
Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 4μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Gauge, TSP≤1.4mg/m3


Heating System	Burner	ItalyRiello Brand,RG20 Diesel Burner, 180000Kcal/h, 20N Damp Motor
	Heat Energy Converter	SUS304 Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%


	Max Temp:80 centi degree,Heating Time: 4-5min(20-60centi degree), Fuel Consumption: 4-5kg/vehicle

Light System	Ceiling Light: 32 pcs 36w Philips Lamp; Side Light: 16 pcs 36w Philips Lamp, 1000 Lux, the light glass is clear and tempered throughout
Electric Controlling System	Micro Computer Programme Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, failure alarm, timer

Environmental System	Multi-Layer Fiber glasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards

Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

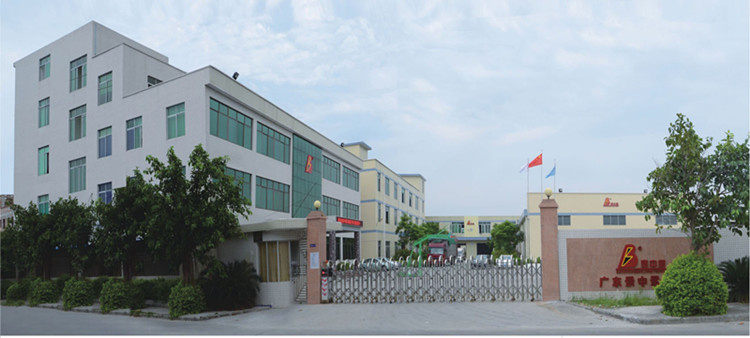

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
