China Big Furniture Paint Spray Booth for Sale

Name: China Big Furniture Paint Spray Booth for Sale
Brand: ibuyautoparts.com
SKU: 732982342
Availability: InStock
Rating: 4.7 (95 reviews)

Price:	Negotiableset
Min Order:	1set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

We are the most professional spray booth manufacturer in China. We have been manufacturing spray booth for 10 years.

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd., was established in 1999.
As one of most professional auto maintenance equipments manufacturers in China, Our factory
Manufactures spray booths for cars, buses, truck and other vehicles, preparation stations, car lifts
And supplies body repair systems, wheel aligners
And other relevant garage equipment to customers all over the world.

specifications of spraying& baking booth of 15meters as inside size

model		BZB-FB model		manufacturer	Jingzhongjing

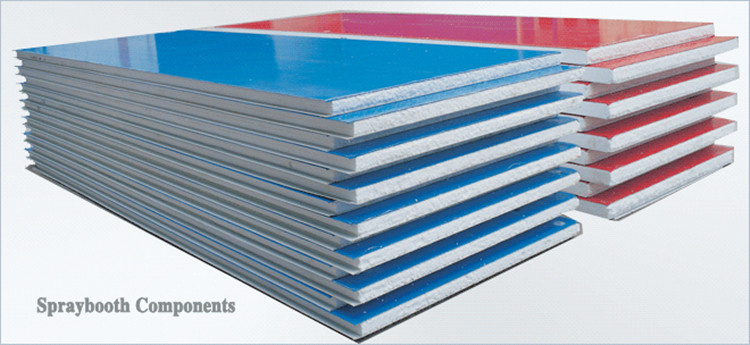

technical parameters	outside size(L× W× H)	15156× 6956× 5800	structure parameter	thickness of wall panel(mm)	75
	inside size(L× W× H)	15000× 5000× 5000		thickness of steel sheet(mm)	0.476
	Access door width(mm)	4000		stuffing	EPS
	Access door height(mm)	4500		grid	30*4flat iron
	air speed when empty(m/s)	≥ 0.25		shelf of the booth	square steel pipe+angle iron
	noise(dB)	≤ 85		supporting mesh	square steel pipe
	total power(kw)	52		cabinet	square steel pipe+galvanized steel plate
	max work temprature	80	illuminance parameter	lamps(pcs)	ceiling lamps72
spec. of burner	burner	2 sets of RG5S Riello Burner		lamps(pcs)	bottom lamps 40
	max heat(Calories/h)	260000*2		power/pc(W)	36
	fuel consumption(kg/h/set)	(13-26)*2		lamps brand	Philips
	heat-exchanger	stainless steel		illuminance(Lux)	≥ 800
	quatity	2	outlet air parameters	outlet pipe(mm)	900× 900
spec. of inlet fan	model of inlet fan	YDW-5.6S		chimney	galvanized steel plate
	estimated air Volume(m3/h)	17530		height of chimney	standard 12m plus two elbows
	power/set(KW)	5.5	electric appliance	components of control box	main parts are importd and CE passed.
	Quatity	4	color	grey/sky blue/orange(optional)
spec. of outlet fan	model of outlet fan	4-82-6.3E	filtering way	dry filtering: fiberglass filter plus active carbon filtering;
	estimated air Volume(m 3 /h)	34000	filtering way
	power/setKW	11	Three-D lifting plate	lifting Height	800-4500mm
	quatity	2		Horizontal moving distance	1000-1200mm
electricity	380V/50HZ/3phase			Longitudinal travel	15000mm
				power	3KW
				quatity	2sets
notes

Prod Model:	BZB-FB
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

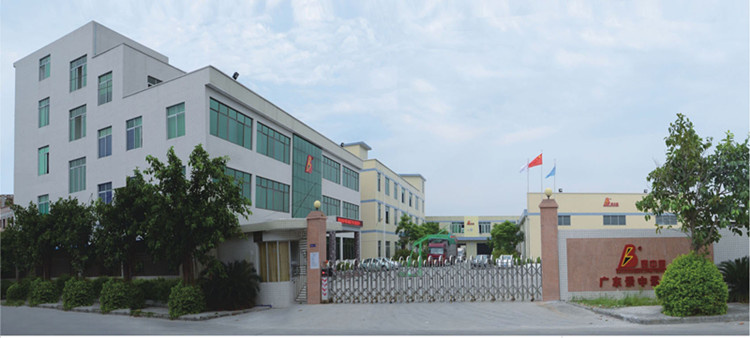

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
