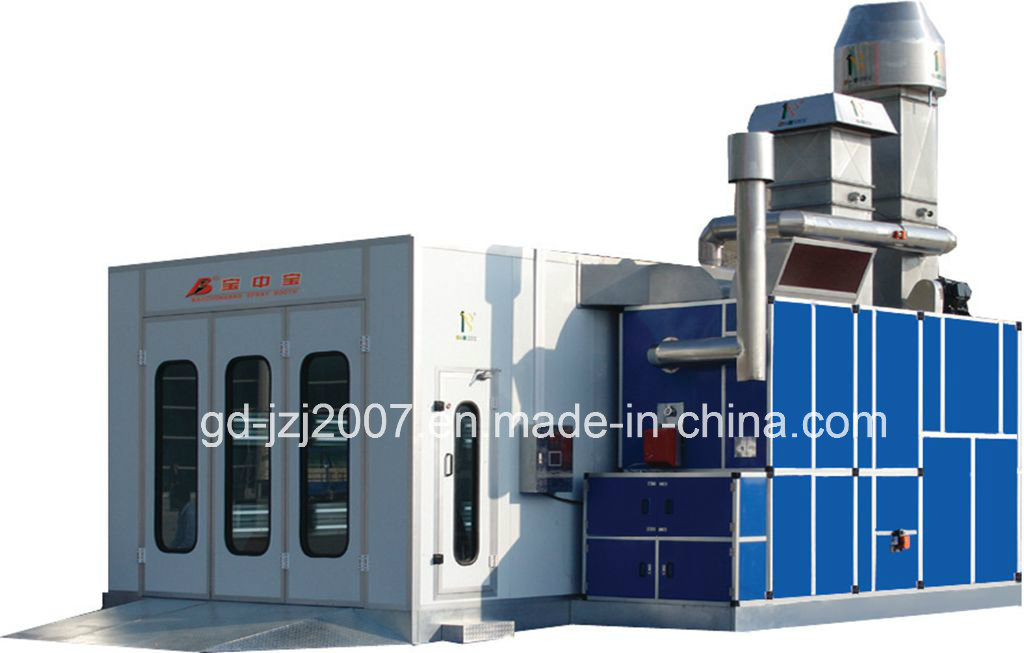

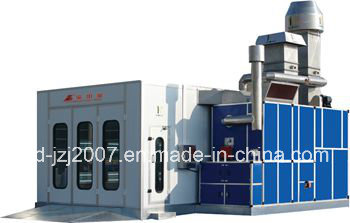

CE Spray Painting Booth High Quality Good Price
| Price: |
US $ 12150-19780/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
Guangdong Jingzhongjing Industrial Painting Equipments Co., ltd is a professional auto maintenance equipment manufacturer since 1999. Our main products include spray booth for cars and buses, baking booth, prep station, car litter, painting line, shower testing booth, powder painting line, etc.
| Outside Size:(mm) | 7040x5990x3450 | Front Door:(mm) | 3000(w)x2600(h) | | Inside Size:(mm) | 6900x4000x2650 | Total Power:(km) | 25 |
| Cabin System | 1.Wallboard | EPS (epispastics polystyrene) Colorful Steel Skin Heat Insulated Panel, Wall Boards: 70mm Thick, Ceiling Panel: 50mm Thick. Life Span:20 years | | | 2.Basement | Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps. | | | | 3.Enclosure | Sturdy body structure, especially the side door with a pressure lock which will automatically open when the pressure inside is over the limit | | | Air Circulation System | Inlet Turbine Fan | Model:YDW4.5L | Outlet Turbine Fan | Model:4-82-6.3E | | | Capacity: 14000m3/h | Capacity: 30000m 3 /h | | | | Power: 4kw | Power: 15kw | | | Pressure:800Pa | Pressure:1236Pa | | | Quantity: 2sets | Quantity: 1set | | | The circulation system covers a set of automatic valve and two sets of manual valve. Manual adjustment valves are placed in inhaling and exhaust flue to control airflow volume and adjust pressure. A stainless steel trapezoid hood and a stainless cone hood are placed on the top of blow flue and exhaust flue separately. | | | 40 pcs Ceiling Nozzles with 2 Centrifugal(power 1.5kw/set) fans drying water paint | | | Air Purification system | Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 15 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. It's Filtering Rate Reaches 98%. | | | Heating System | 1.Burner | ItalyRiello Brand,RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor | | | 2.Heat Energy Converters | Stainless Steel, Argon Arc Welding, Heat Exchange Rate 85% | | | | Max Temp:80,Heating Time: 4-6min(20-60 . C), Fuel Consumption: 6-8kg/vehicle | | | Lighting System | Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 32 pcs 20w Philips Lamp, 800 Lux | | | Electric Controlling System | PLC Controlling, Soft Touching Button, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm | | | Environmental Conversation System | No-pump water curtain paint for mist filtering device hat can reduce more than 98% of the fog without the trouble of replacing drying-method filter by fully mixing fog, water and air, and ensures a qualified exhaust according to the relevant state standards | |
|
Certification:
| Prod Model: |
BZB-8700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White,Red,Orange,Blue....... |
| Voltage: |
as Require |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Bzb |
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
