Ce Certification Car Drying Spray Booth High Quality

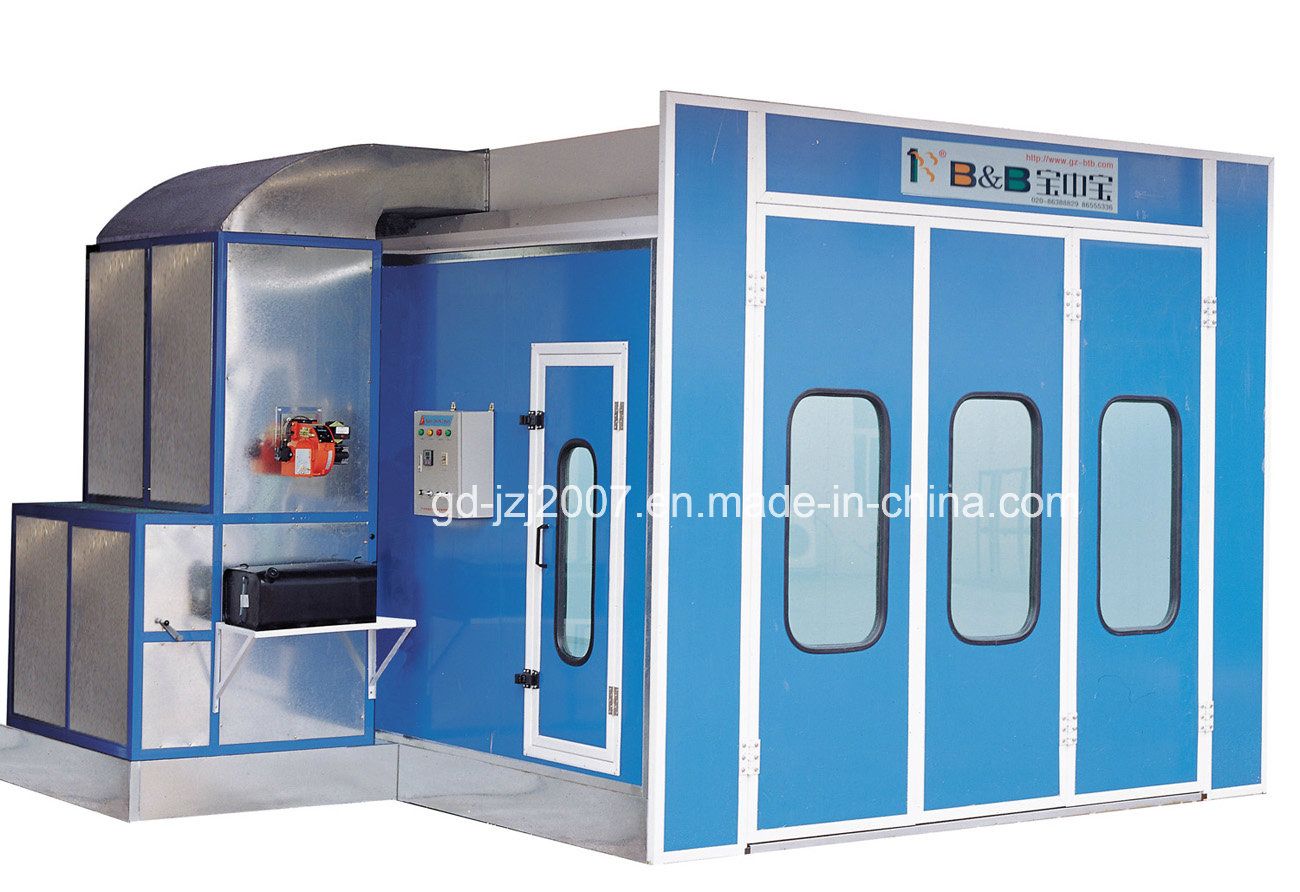

BZB-8100 Spray booth

Outside dimension: 7000× 5550× 3450mm(L× W× H);
Inside dimension: 6900× 4000× 2800mm(L× W× H);
Front door dimension: 3000× 2700mm(W× H);
Working door dimension: 800× 2000mm(W× H);

Cabin system:

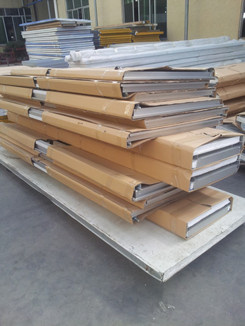

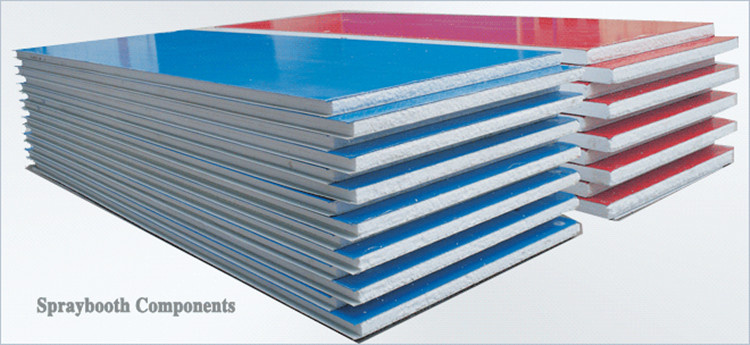

1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.426 thick colored steel sheet.
Roof panel: Galvanized sheet;
2) Basement: Two lines of steel grids, three rows of steel diamond plates; With two pieces of steel ramps; The height of the basement is 280mm;

Air circulation system:
Inhaling Ventilator Model: YDW-4.5AL1, Blower Capacity: 22000m3/h , Pressure: 800PA , Rolling Speed: 900rpm, Power: 5.5kw, Quantity: 1 sets
One set automatic damper, 10N actuator, outlet fan for option

Generator: Slid upward side intake air; Rare upward side exhaust; Quadrate steel frame;

Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter;

Heat system: RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; Oil consumption 4~6L/set; The heating time is 5~7 minutes;

Lighting system: ≥ 800Lux
Ceiling Lights: 8Groupsx3PCS=32PCS x36W
Glass: All glass is clear tempered glass.

Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;

Total power: 7.5KW
