CE Car Paint Room High Quality Competitive Price

Name: CE Car Paint Room High Quality Competitive Price
Brand: ibuyautoparts.com
SKU: 707407705
Availability: InStock
Rating: 4.7 (139 reviews)

Price:	US $ 8820-12150/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

Specifications

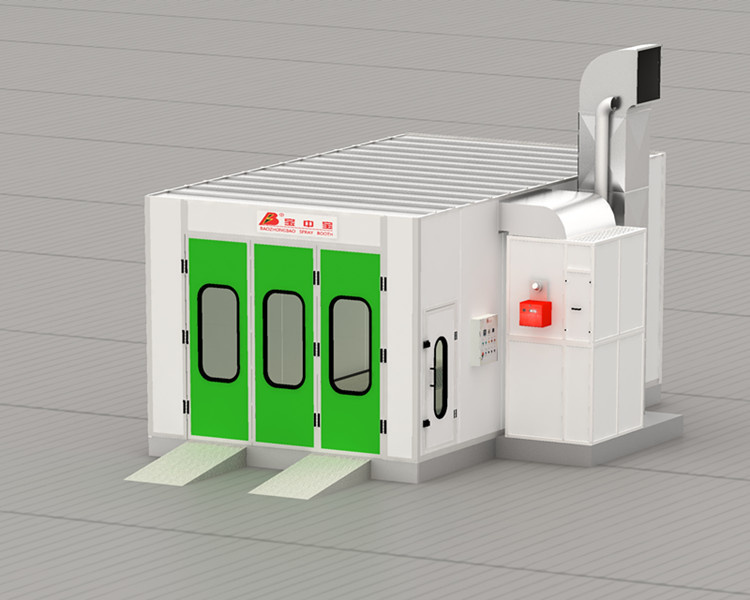

Car paint room:
Inside Dimension: 6900*3900*2700mm(L*W*H)
Outside Dimension: 7000*5350*3400mm(L*W*H)

Car paint room
DESCRIPTION:
1) Inside Dimension: 6900× 3900× 2700mm(L× W× H)
2) Outside Dimension: 7000× 5350× 3400mm(L× W× H)
3) Main Door: 3-folds, 3000× 2650mm(W× H)
4) Personal Door: 1-fold, 650× 1800mm(W× H)
5) Wall Panels: 50mm thick EPS heat preservation wall panels, galvanized steel roof plates.
6) Basement and Floor: Galvanized steel assemble, 300mm
High, 2 rows of grilles and 3 rows of indented plates, 2 ramps, 520× 2000mm(W× L).
7) Lighting: Ceiling lights: 8units× 3PCS=24PCS× 36W; Side lights: Optional.
8) Generator setting type: Side upper inlet air, quadrate steel frame, coated steel.
9) Intake air system: 2× 4KW double-intake centrifugal fans, air capacity is 24000m3/h.
10) Exhaust air system: Optional.
11) Heating system: Riello G20 diesel oil burner, heating productivity is 180000kcal/h, stainless steel heat exchanger, working temperature is 80° C, electric damper from spraying to baking cycle.
12) Filtering system: Prefilter, high efficiency filter (ceiling filter), floor filter (fiberglass filter).
13) Control system: Lighting switch, spraying, heat spraying, baking, time setting, temperature controller, failure indicator, temperature limit controller.
14) Total power: 9KW

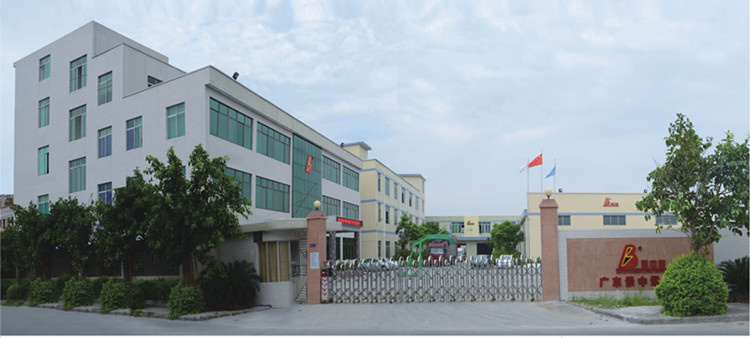

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
