Name: Car Spray Booth with Ce, Manufacturer, Garage Equipment
Brand: ibuyautoparts.com
SKU: 736149625
Availability: InStock
Rating: 4.6 (62 reviews)

Price:	US $ 8820-32600/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

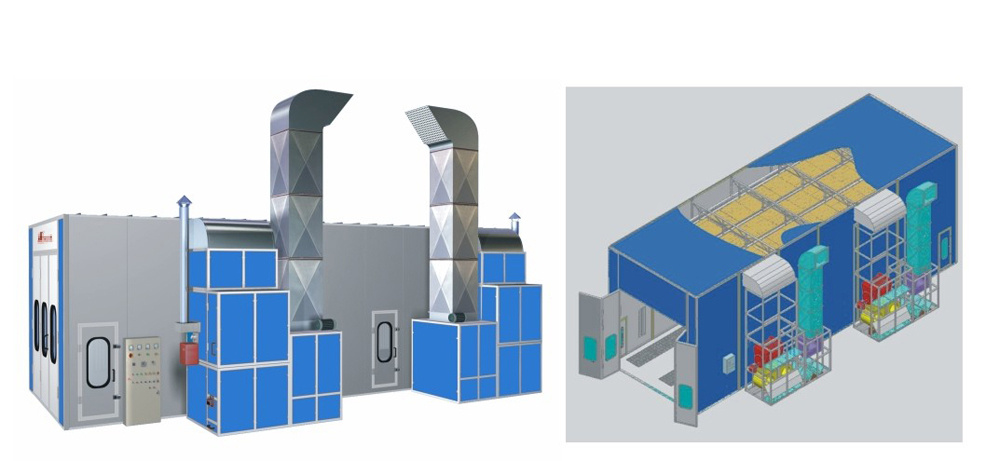

Paint spray chamber: Producing specially designed Painting and Drying spray booths suitable for your painting work of all types of vehicles; BZB brand spray booth is with a concept of a customer-focused attitude
Specification
- Outside Dimension (mm): 15156×6656×5800(L×W×H)
- Inside Dimension(mm): 15000×5000×5000(L×W×H)
- Front Door Dimension (mm): 4000(W)*4500(H)
- Escaped Door(mm): 2000x800( two pcs)
- Total power: 63 W.

-Cabin System
1) Wall panel: 75mm thickness EPS colorful steel skin board. Steel sheet thickness: 0.5mm, heat- insulation
2) Roof board: 50mm thickness rock wool panels
3) Basement: Dig pits basement as manufacturers drawing, the basement foundation be prepared by customer.
4) Front Door: 4 folded glass door.
5) Glass: all glass of the spray booth are safety glass

-Air Circulation System:
1) Air Inlet Fan: 2x7.5kw centrifugal fan, air capacity: 18400m³/h /, QTY: 2 sets,
             Two units air inlet system.
2) Air Outlet Fan: 1x15kw centrifugal fan, air capacity: 33398 m³/h, QTY: 1 set
             Two units air exhausted system.
3) Both the air inlet air and exhausted air controlled by the electrical damper.
4) Exhausted ducting: each air make-up system with 6m air outlet ducting and one elbow.

-Purification System:
Dual filtering structure, the primary filter can capture granules larger than 10 μm. ceiling filter can capture granules bigger than 4μm. the whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. Air pressure balance gauge, TSP≤1.4mg/m³
- Heating System: Two sets Italy Riello RG5S Diesel burner, 260000Kcal/h, 20N damper motor.
                max temp:80, heating time: 15-20min(20-60), fuel consumption:6-8kg/vehicle

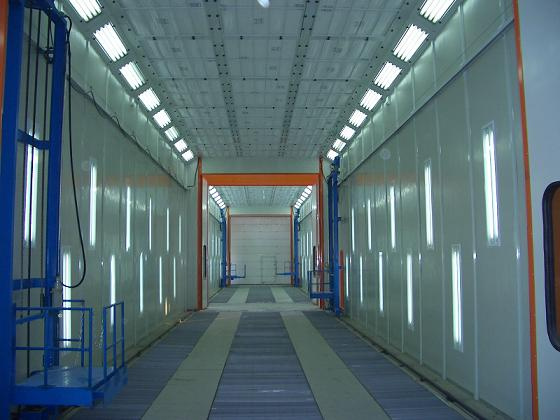

- Lighting System: 80pcs 36w Philips lamp; bottom light: 44pcs 36w Philips lamp. 800Lux.
-Controlling System: Micro-computer programmed controlling, spray & baking switch, light switch, emergency stop, breakdown alarm, pressure gauge, timer etc.
-Environmental System: Multi-layers fiberglass filter, and active carbon.

Prod Model:	BZB-FB-15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colors:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
