Big Bus Spray Booth Paint Booth with Competitive Price

Name: Big Bus Spray Booth Paint Booth with Competitive Price
Brand: ibuyautoparts.com
SKU: 734951925
Availability: InStock
Rating: 4.4 (110 reviews)

Price:	US $ 8820-49500/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-FB-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colors:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

Specifications

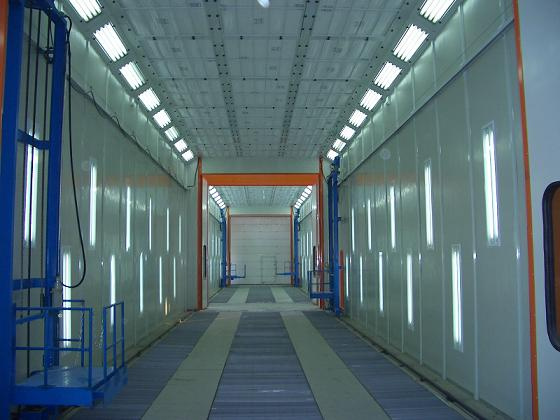

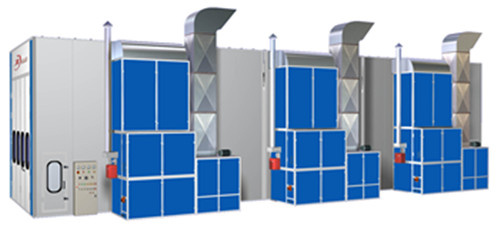

1. Spray Booth-Truck bus spray booth

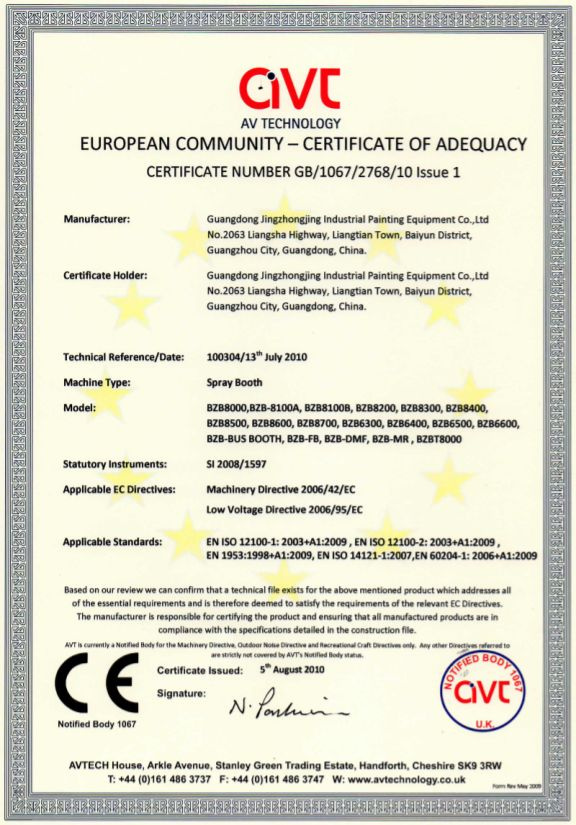

2. CE and ISO approved
3. 4 sets of Riello RG5S diesel burner
4. Wall panel: 75mm thickness
1) Outside dimension: 20156*8006*6300mm(L*W*H);
2) Inside dimension: 20000*6000*5500mm(L*W*H);
3) Basement: concrete floor with 3 pits, one pit size is 18015*785mm (L*W);
4) Front main door: 4-fold( 4 leaf), 4800*5000 mm (W*H);
Personal door:700*2000 mm (W*H);2pcs
5) Wall Panels: thickness is 75mm, and insulation is EPS panel;0.476mmdouble skinned sheet;
Roof plate:galvanized sheet;
6) Lighting: Ceiling Lights: 26Groups*4Pcs=104Pcs *36W;Side Lights: 28Groupsx2Pcs=56Pcs x36W; Philip tube;
7) Glass: all glass is toughened glass;
8) Generator: back upper intake air, back upper extract air, quadrate steel frame, coated steel;
9) One set intake and exhaust air system, totally 3 sets:
Intake fans: YDW centrifugal fan, per capacity: 22300m³/h, motor: 9kw, totally 6 intake fans,
The total intake air volume is 133800m3/h;
Exhaust fan: 4-82-7.1E centrifugal fan, per capacity: 40130m³/h, motor: 15kw, totally 3 exhaust fans,
The total exhaust air volume is 120000m3/h;
Air exhaust unit pipe: 900mm*900mm*1000mm, 6m straight from the cabin with 2 manual dampers and 2 elbows;
The total air exhaust pipe is 12m straight, 4 manual dampers and 4 elbows;
10) One set heating system,totally 3 sets: RIELLO RG5S diesel burner (one stage), heating capacity is 260000Kcal/h, electric damper from spraying to baking cycle, 20N actuator;
11) Filtering system: Pre-filter, high efficiency filter (ceiling filter), floor filter, bag filter, active carbon filter;
12) Control boxtotally 1 set: spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, hour meter, pressure gauge, emergency stop, failure alarm, temperature control meter;
Control box details:
A. triangle drive, the fan works step by step; all lines contacts with the floor wire;
B. CE electrical components
The Voltage Require: 380V, 3PH, 50Hz
The Total Power: 108KW

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
