2018 Popular Auto Maintenance Industrial Paint Booth/ Auto Spray Booth

Name: 2018 Popular Auto Maintenance Industrial Paint Booth/ Auto Spray Booth
Brand: ibuyautoparts.com
SKU: 718533085
Availability: InStock
Rating: 4.5 (57 reviews)

Price:	US $ 8820-32600/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-FB-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

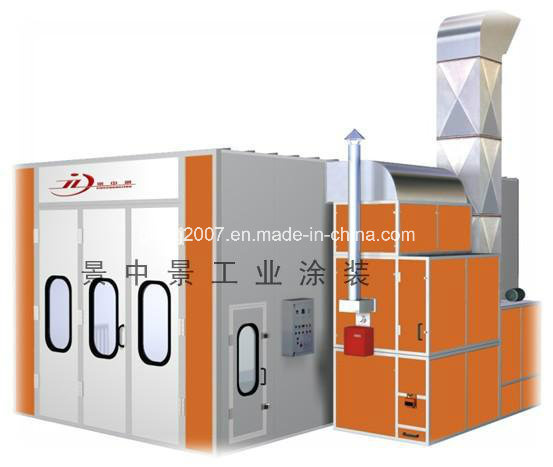

Industrial paint booth, nice quality.
With 12000*4500*3500mm(L*W*H) as inside size.

industrial Spray booth
Outside size(L×W×H)		9140×6200×4800(mm)
Inside size(L×W×H)		9000×4500×4000(mm)
Cabin System	70mm thick EPS panel;colorful steel sheet is 0.476mm thick;Ceiling panel:50mm thick EPS panel front door(W×H):3500mm×3500mm.
Circulation system	Inlet fan:two sets centrifugal fan. Model:YDW-5.6M;power:7.5kw/per set; quantity:2sets
	Outlet fan: Model:4-82-6.3E;capacity:35128m3/h;pressure:816Pa:power:11KW:quantity;1set
	air speed:0.4 m/s;air recycling times:343 time/h
Purification system	dual filtering structure,the primary can capture granules larger than 10μm,ceiling filters capture granules larger than 4μm.filtering rate 98%.
Heating system	Italy Riello RG5S oil burner,260000Kcal/h,,stainless steel heating exchanger.
	Max temp,80 centi degree:heating times:8~12min(20~60centi degree);fuel consumption:12~25Kg/h

Lighting system	ceiling light:40 pcs 36W philips lamp.Bottom light:24 pcs 36W philips lamp.
Control system	PLC Controlling, Soft Touching Button, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental system	multi-layer fiberglass filter,active-carbin.
Total Power	29.5KW

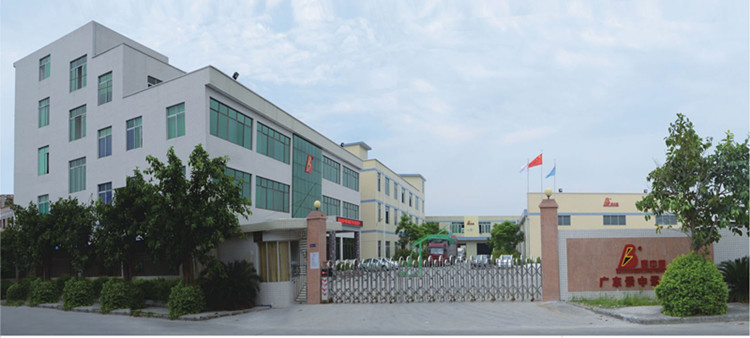

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
