| Prod Model: |
V8-3288 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Monitor: |
8 Inch TFT LCD Monitor |
| Camera Head: |
Diameter 50mm |
| Camera Head Material: |
Aluminum Alloy |
| Camera Lens: |
Sapphire Glass |
| Field Of View: |
90 Degree |
| Camera Lighting: |
18PCS High Intensity White LED |
| Cable Length: |
60m |
| Cable Mterial: |
Fiberglass Push Rod Cable |
| Battery: |
12V 6600mA Rechargeable Li-ion Battery |
| Carrying Case Material: |
ABS |
| Certification: |
RoHS |
Product Description

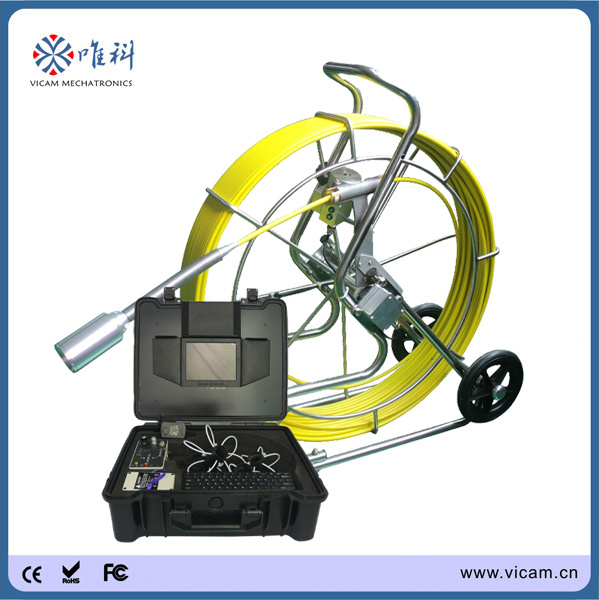

Waterproof ip68 underground inspection camera V8-3288
Waterprof pipe inspection camera quick view
1 8 inch TFT LCD monitor
2 Φ 50mm X 88mm for pipe Φ 55mm to 600mm
3 waterproof IP68 pipe inspection camera
4 DVR contol box lead easy record and replay video, sound, photo,
5 With charger, 3 camera head skids, earphone, 8G sd card and keyboard
6 60meters fiberglass push rod cable with meter counter
Waterproof pipe inspection camera specific information
Pipe inspection camera head
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Aluminum camera housing, IP68 waterproof
* Camera lens window material sapphire glass
* 600 TVL 1/3" Color CCD Self-levelling Camera
* Field of view 90°
* 18pcs LED lights, lighting adjustable
Pipe inspection camera monitor
* 8 inch TFT LCD monitor
* Brightness: 400cd/m2
* 4: 3 display model
* Resolution: 800*600
Pipe inspection camera DVR control box
* DVR control buttons
* SD card (max 64G) jack
* LED brightness adjusting knob
* A / V & photo selection available
* On/off microphone control button
Pipe inspection camera battery pack
* 6600mA Li-ion battery
* AC110V-240V 1.5A power charger
* Charging time 5 hours, working time 6 hours
Pipe inspection camera cable reel
* Fibreglass push rod cable with meter counter
* Cable diameter Φ 9mm
* Cable length from 60m to 120m optional
* Stainless steel handle cable reel
* Reel size: L70xW28xH84 cm
Carrying case
* ABS carrying case size: 520X435X200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Pipe inspection camera features and benefits
* Self-leveling waterproof camera can easily check all pipeline problem inside
* A removable SD Card records images and video for later review and easy transfer to a PC for reporting or sharing via email
* 6600 mAh Li-on battery support the unit working more than 5 hours
* New Design DVR control box easy to record and replay video, photo, and sound. USB jack for keyboard support to typewrite real time any information you need
Advantage of sewer pipe inspection camera
1 CE FC RoHS UL SGS supported
2 We as a leading manufacturer specialize in pipe inspection systems & cameras.
3 Rich experience of 8 years to design, produce and export.
4 France CYBERIA SAS, and Shenzhen Institutes of Advanced Technology support.
5 Professional engineers guarantee the reliable products.
6 Strong production line provide best price, good quality and fast delivery.
7 Inquiry will be replied within 24 hours
8 2 years warranty
Paking
Aluminum carrying case and Carton box
Aluminum carrying case size; 450*330*170mm
1 set/ CTN
Carton box size: 520*450*205mm
Delivery
Withing 2 to 10 working days according to the order
Shipping
DHL express
All products will be tested & inspected before delivery
Tracking No. Will be sent after delivery
| Brand | VICAM |
| Model | V8-3288 |
| Type | Analog camera |
| Sensor | 1/3 inchs color CCD |
| Spectial features | Waterproof / Weatherproof |
| Camera head size | diameter50mm |
| Field of view | 90 degree |
| Packing | Aluminu carrying case and carton box |
| Aluminum carrying box size | 520*435*200mm |
| 1pcs/ctn carton box size | 520*205*450mm |
| 2pcs/ctn carton box size | 538*438*480m |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
