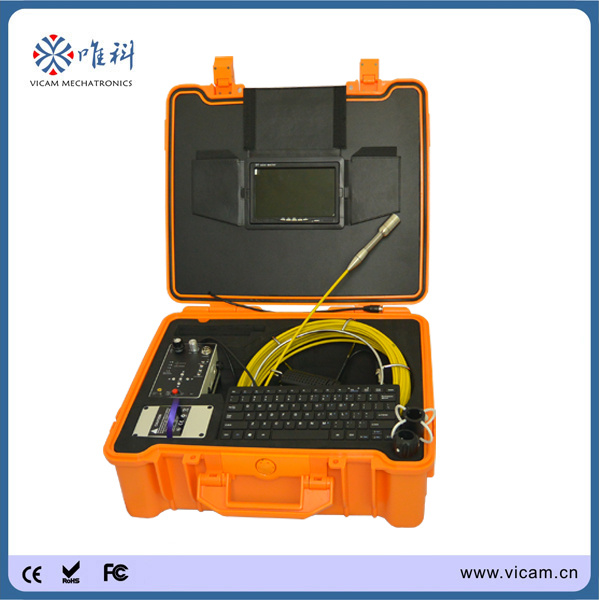

Sewer Drain Camera Inspection in 23mm Diameter

Vicam DVR & Keyboard Drain cameras for storm sewer and pipe inspection (V8-3188DK)

Drain camera Head

* Camera head size Φ 23 x 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera lens window material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Waterproof IP68
* Field of view 120°
* Camera lighting 12 white LEDS

Drain camera Monitor

*8 inch TFT LCD color monitor
* Power supply DC 12V
* OSD language: English
* mirror image
* Sunshade included

Drain camera DVR Control Box

* DVR power supply 12V DVR work current 200mA
* Storage medium SD card jack (8G SD card included)
* Rechargeable Li-ion Battery power supply (18650 x 6 pcs 4400 mAH)
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

Cable Reel
* Stainless steel Cable Reel size Φ 320 x 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)

Carrying case
* ABS engineering carrying case size: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Delivery time 1 week

VICAM

VICAM, a professional manufacurer located in Shenzhen China, focus in researching, developing and marketing industrial video inspection system, specially in pipe inspection industry.

For over 8 years development, we have the large-scale production lines for various series inspection camera systems, such as portable pipe camera, heavy-duty pipe camera, mini pipe camera and telescope pipe camera etc.

Now, we still continue to do our best to meet customers' demands, and offer the best service & reasonable prices.
