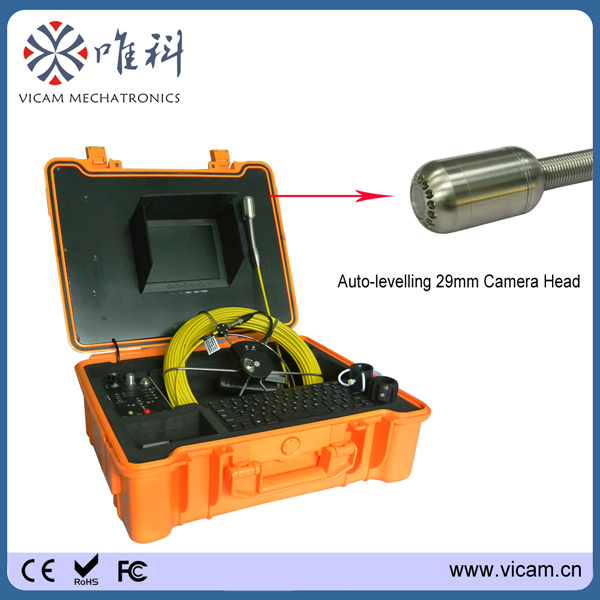

Underwater water for pipe sewer dain inspection camera
with meter counter device V8-1288KCFeatures:Sewer Inspection Camera system, 8" LCD Monitor, DVR, Meter Counter
Φ 29mm Self levelling Detachable Waterproof Camera Head with Scratch Resistant Sapphire Len
Φ 5.2mm Flexible Fiberglass Push Rod, Standard Length: 20M (Other Length optional, like: 30M/40M)
Waterproof Durable Easy-Handheld Safety Suitcase with built-in 8" TFT LCD screen ( 10" TFT LCD Screen optional )
Built-in DVR, Video & Audio Recording and Snapshot via SD card
Remote Control & Panel Manual Switch Dual Mode Operation
With Camera Skid
With built-in OSD Digital Meter Counter, accuracy to 0.1M
Φ 29mm Camera Head with built-in 512hz Transmitter Sonde(Optional)
Camera Head
* Camera head size Φ 29 x 53mm for pipe Φ 35 to 200mm
* 700TVL 1/4'' CMOS self-levelling camera
* Camera head casing material stainless steel
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120° , IP68 waterproof
* 15 pcs high intensity white LED
Monitor*8 inch TFT LCD monitor
* 4: 3 display model
* Brightness: 400cd/m2
DVR Control Box
* DVR control buttons
* SD card (max 64G) jack, keyboard jack
* LED brightness adjusting knob
* A / V & photo selection available
* On/off microphone control button
* Battery level indicator lights
Battery pack & Charger
* 6600mA li-ion battery
* AC110V-240V 1.5A power charger
* Charging time 5 hours, working time 6 hours
Cable Reel* Fibreglass push rod cable
* Cable diameter Φ 5.2mm
* Cable length from 20m to 50 optional
* Reel size Φ 320 x 110mm
Carrying case*ABS carrying case: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
About Vicam MechatronicsVicam Mechatronics Co. Ltd is located in Shangxue Industrial Park in Shenzhen, south China, specializing in the design, manufacture and assembly of video inspection systems. We have introduced international advanced technology, and designed and produced various video inspection cameras. Most of our products sell well in Europe, the US, Australia, the Middle East, South Africa and South America.In the process of development, we have got very important technical support from Cyberia SAS and Shenzhen Institutes of Advanced Technology.
Can be Used in Complex Applications and Hazardous AreasOur main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments.
Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and services to all our customers.
Contact Us TodayFor more information about our products and services, welcome to visit our Global Sources showroom
(Booth No:2Q33 April 11th to 14th,2015 )/our website
www.vicam.cn and then contact one of our representatives.
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
