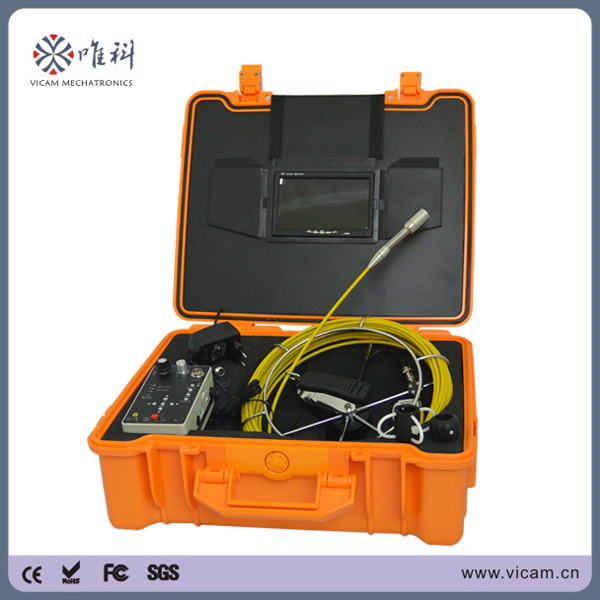

Waterproof Pipe Inspection Camera with ABS Case

Waterproof pipe inspection camera with ABS case

Camera Head

* Camera head size Φ 23 X 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDs

Monitor

* 7 inch TFT LCD monitor
* Power supply DC 12V

DVR Control Box


* DVR power supply 12V
* DVR work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 X 6 PCS)
* Charging time 5 hours, working time 6 hours

Cable Reel

* Stainless steel Cable Reel size Φ 320 X 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)

Carrying case

* ABS Carrying case size: 520 X 435 X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Company information

Backed by Cyberia SAS and Shenzhen Institutes of Advanced Technology
Vicam Mechatronics Co. Ltd is located in Shangxue Industrial Park in Shenzhen, south China, specializing in the design, manufacture and assembly of video inspection systems. We have introduced international advanced technology, and designed and produced various video inspection cameras. Most of our products sell well in Europe, the US, Australia, the Middle East, South Africa and South America. In the process of development, we have got very important technical support from Cyberia SAS and Shenzhen Institutes of Advanced Technology.

Can be Used in Complex Applications and Hazardous Areas
Our main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments.

Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and good services to all our customers.

Contact Us Today
For more information about our products and services, visit our Made-in-China Online showroom and then contact me.

Our Service:
1. Your any inquiries will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. Distributoership are offered for your unique design and some our current models.
4. Best Quality & Best Service with competitive price.
5. All regular products can give 2 years warranty.

Our Company:

1. We are China leading and professional pipe inspection camera Manufacturer.
2. Our product quality policy is that each shipment with 2 years guarantee and 7 days unconditional returns.
3. Positive team with full experiences in product specification and producing.

Application:
1.    WATER SUPPLY
2.    WASTE WATER
3.    ELECTRICAL AIR CONDITIONER
4.    CABLE DUCTING
5.    DUCTED VACCUM SYSTEMS
6.    PLUMBING
7.    IN BUILDING

Thanks for scanning our product, your inquiry or feedback will be highly appreciated.
Looking forward to supporting you!
If you want to know more detail information about us, welcome to visit our company website:
http://wwwvicam.cn/

Stainless steel cmos camera head data
camera size			Φ23mm×118mm (camera head 23 X 45mm)
camera housing material			stainless steel #304L
camera window			sapphire glass
connecting type			golden pins slip-ring connection
sensor			1/4"  color CMOS
field of view			120°
resolution			PAL:720H×576V  NTSC: 720H×480V;
horizontal definition			420TVL
S/N rate			>48dB(AOC on)
electronic shutter			1s_1/10000s
sensitivity			0.1Lux
video output			1.0 Vp-p / 75Ω
lighting			12 high intensity white LED,  brightness adjustable
waterproof			yes, class IP68
working voltage			DC 12V
working current			51mA Max (LED Max: 100mA)
operating temperature			-10ºC~60ºC
