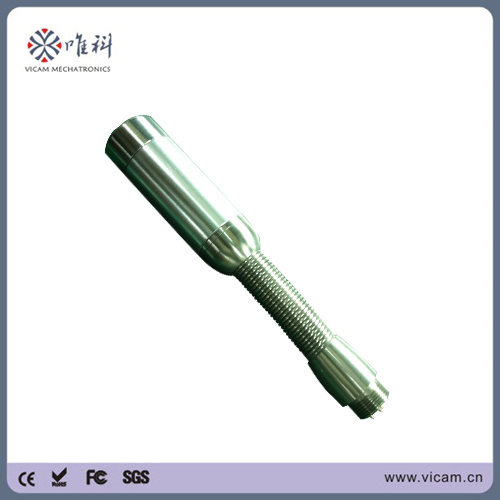

Waterproof CMOS Camera Head (VS-1813)

Name: Waterproof CMOS Camera Head (VS-1813)
Brand: ibuyautoparts.com
SKU: 716111385
Availability: InStock
Rating: 4.8 (111 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	VS-1813
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	RoHS

Product Description

Waterproof CCD Camera Head

1, connecting type golden pins slip-ring connection
2, horizontal definition 600TVL

CMOS Camera data
1	camera size Φ23mm×65mm
2	camera housing material stainless steel and aluminum
3	camera window sapphire glass
4	connecting type golden pins slip-ring connection
5	sensor 1/3-Inch CCD
6	field of view 90°
7	resolution PAL:752H×582V NTSC: 768H×494V;
8	horizontal definition 600TVL
10	S/N rate >48dB(AOC on)
11	electronic shutter 1s_1/10000s
12	sensitivity 0.1Lux
15	video output 1.0 Vp-p / 75Ω
16	lighting 12 high intensity white LED, brightness adjustable
18	waterproof yes, class IP68
19	working voltage DC 12V
20	working current 63mA Max
21	operating temperature -10ºC~60ºC

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
