Video Inspection Camera with Counter Device (V10-3188KC)

Video Inspection Camera with Counter Device (V10-3188KC)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 2/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: V10-3188KC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof: IP68
Camera Diameter: 23X45mm
LED Lighting: 12 Pieces
Monitor Size: 10 Inch HD LED Monitor
Certification: RoHS

Product Description

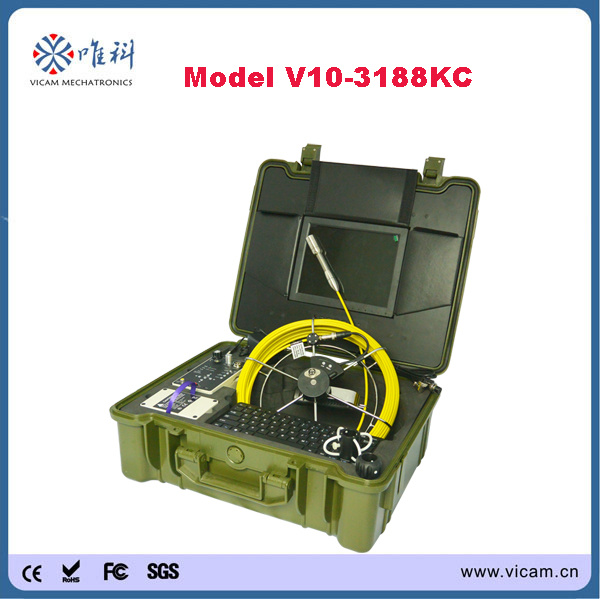

10" HD LED Monitor Video Inspection Camera with Counter Device

Camera Head
* Camera head size Φ 23 X 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera window material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDs


Monitor
*10 inch HD LED monitor
* Power supply DC 12V


DVR Control Box

* DVR power supply 12V DC work current 200mA
* Storage medium SD card ( 8G SD card included )
* Rechargeable Li-ion Battery pack power supply (18650 X 9 PCS 6600 mAh)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)


Cable Reel with Meter Counter
* New design Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size Φ 320mm× 110 (h)
* 20m Φ 5.2 mm fiberglass rod push cable ( 30m/40m optional)


Unit control carrying case
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

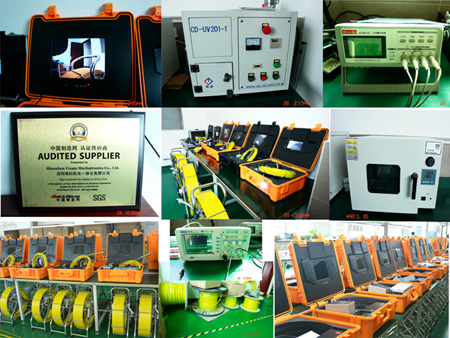

Company Information

Backed by Cyberia SAS and Shenzhen Institutes of Advanced Technology
Vicam Mechatronics Co. Ltd is located in Shangxue Industrial Park in Shenzhen, south China, specializing in the design, manufacture and assembly of video inspection systems. We have introduced international advanced technology, and designed and produced various video inspection cameras. Most of our products sell well in Europe, the US, Australia, the Middle East, South Africa and South America. In the process of development, we have got very important technical support from Cyberia SAS and Shenzhen Institutes of Advanced Technology.

Can be Used in Complex Applications and Hazardous Areas
Our main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments.

Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and good services to all our customers.

Contact Us Today
For more information about our products and services, visit our Made-in-China Online showroom and then contact me.

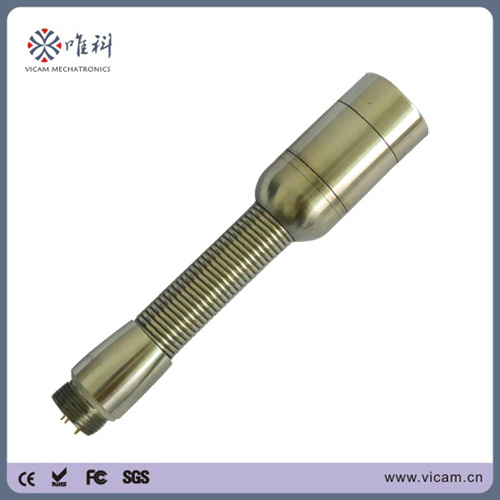

                                Stainless steel cmos camera head data
camera size Φ23mm×118mm (camera head 23 X 45mm)
camera housing material stainless steel #304L
camera window sapphire glass
connecting type golden pins slip-ring connection
sensor  1/4"  color CMOS
field of view 120°
resolution PAL:720H×576V  NTSC: 720H×480V;
horizontal definition 420TVL
S/N rate  >48dB(AOC on)
electronic shutter  1s_1/10000s
sensitivity        0.1Lux
video output 1.0 Vp-p / 75Ω
lighting 12 high intensity white LED,  brightness adjustable
waterproof yes, class IP68
working voltage DC 12V
working current 51mA Max (LED Max: 100mA)
operating temperature  -10ºC~60ºC
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
