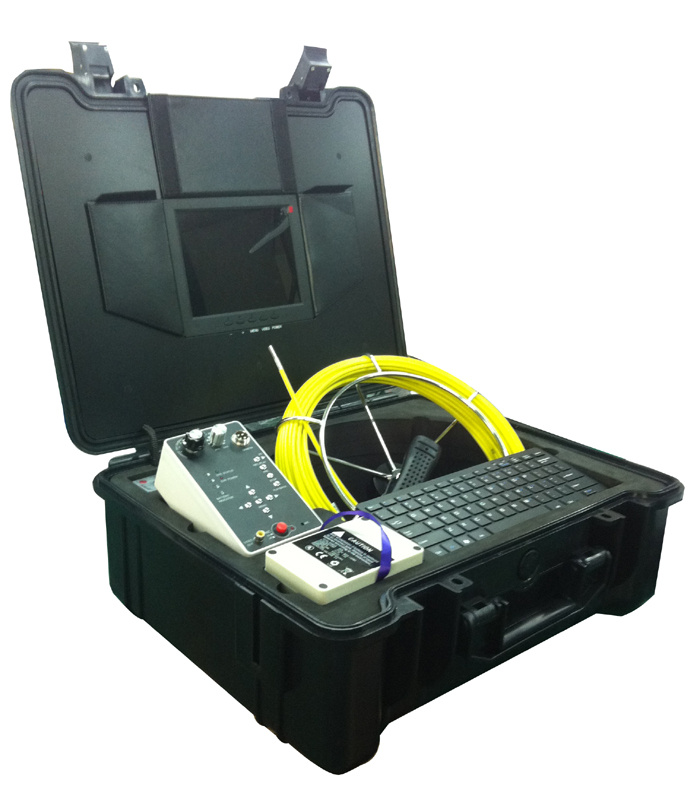

Video Inspection Camera System with Super Mini Camera Head

Name: Video Inspection Camera System with Super Mini Camera Head
Brand: ibuyautoparts.com
SKU: 721884785
Availability: InStock
Rating: 4.6 (99 reviews)

Price:	US $ 478.00-498.00/Piece
Trade Terms:	FOB
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Video Inspection Camera System with super mini camera head

Camera Head

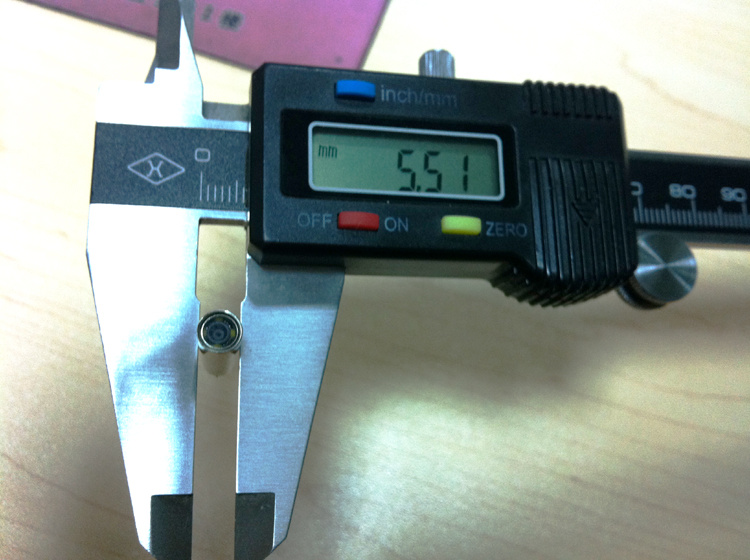

* Camera head size Φ5.5 x 33mm for pipe Φ6 to 100mm
* Camera head housing material Copper nickel plating
* Color camera with toughened glass lens window
* Sensor size 1/12 inch
* Total Pixels PAL 720(H) X625(V) NTSC 720(H) X525(V)
* Field of view 60°
* Camera lighting 4 white LEDS

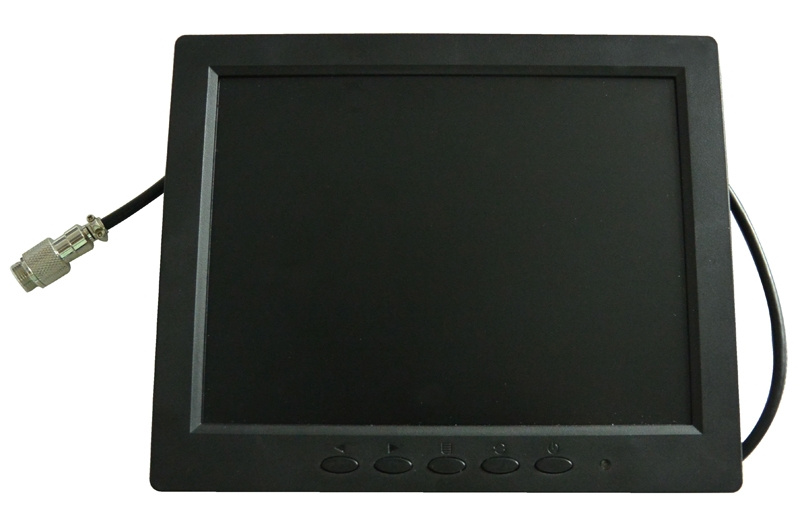

Monitor

*8 inch TFT LCD color monitor
* Power supply DC 12V
* OSD language: English
* mirror image
* Sunshade included

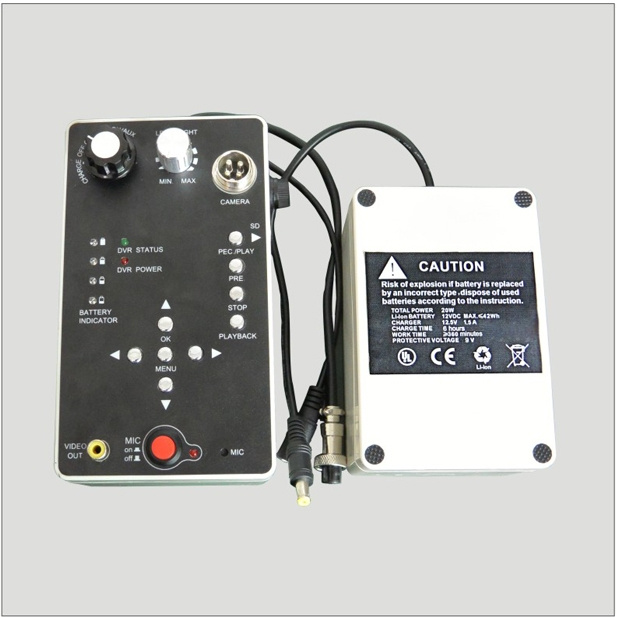

DVR Control Box

* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card)
* Li-ion Battery power supply (18650 x 9 pcs 6600 mAh)
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)
Cable Reel
* Stainless steel Cable Reel size Φ 320 x 110mm
* 20m Φ5.2mm fiberglass rod push cable (30m, 40m optional)
Carrying case
* ABS engineering carrying case size: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Prod Model:	V8-715DK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	FCC SGS
Update Method:	by Hard Disk

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
