Vicam Wholesale Pipe Inspection Camera for Sale

Name: Vicam Wholesale Pipe Inspection Camera for Sale
Brand: ibuyautoparts.com
SKU: 726454805
Availability: InStock
Rating: 4.5 (102 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

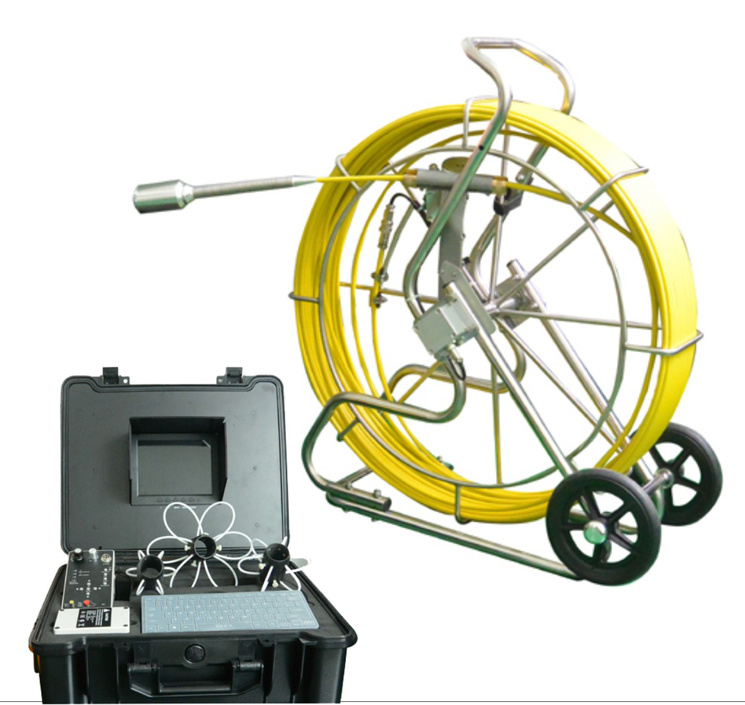

Vicam wholesale pipe inspection camera for sale

Camera Head
*1/3" Color CCD 600 TV lines
* Camera size Φ 40mm X 100mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass
* 3 size Camera skids for different pipe diameter use(105mm, 145mm, 225mm)

Monitor
*8 inch TFT LCD monitor
* Power supply DC 12V

DVR Control Box
* DVR power supply 12V
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 x 9 pcs 6600 mAH)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

Cable Reel with Meter Counter
* Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size 550 X 660 X 320 mm
* 60m Φ 9 mm fiberglass rod push cable ( 60m optional)
* The weight of the cable reel 12.5kg

Unit control carrying case
* ABS Carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Prod Model:	V8-3288
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof CCTV Inspection Camera:	Fixed Focus Lens Camera
Monitor:	8 Inch TFT LCD Screem
Camera Head:	Diameter 50mm * 88mm for Pipe 55mm to 600mm
Camera Lens Material:	Sapphire
Field Of View:	90 Degree
Cable 1:	120m Fiberglass Cable with Meter Counter
DVR:	12V DVR Work Current 200mA
Storage Medium:	SD Card
Battery:	6600 Ma Rechargeable Li-ion Battery
ABS Carrying Case:	L520W435 200mm
Certification:	UL, FCC

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
