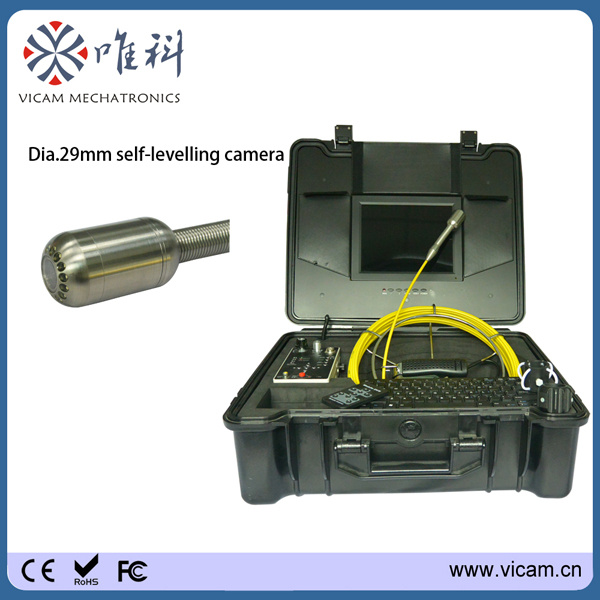

Vicam 29mm Self-Levelling Pipe Video Camera V10-1288dk

Name: Vicam 29mm Self-Levelling Pipe Video Camera V10-1288dk
Brand: ibuyautoparts.com
SKU: 727267595
Availability: InStock
Rating: 5 (32 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	V10-1288DK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screen Size:	10inch Color Screen
Camera Diameter:	29mm Self-Levelling
Camera Lights:	15PCS LED
Camera Material:	Stainless Steel
Battery Capacity:	6600mA
Storage Meida:	8g SD Card
Keyboard Function:	Yes
Certification:	RoHS

Product Description

icam 29mm self-levelling Pipe Video Camera V10-1288DK

Camera Head
* Camera size Φ 29mm X53mmfor pipe Φ 34mm to 300mm
* Camera head casing material stainless steel
* Camera lens window material sapphire glass
* 1/4" Color CmosSelf-levelling Camera 700TV lines
* Field of view 120°
* Camera lighting 15 pcs high intensity white LED

Monitor

*10"HD LED Screen
* Power supply DC 12V
* Resolution:1024*768

DVR Control Box
* DVR control buttons
* SD card (max 64G) jack,keyboard jack
* LED brightness adjusting knob
* A / V & photo selection available
* On/off microphone control button
* Battery level indicator lights

Battery pack & Charger
* 660mA Li-ion Battery pack power supply
* AC110-240V to DC12V charger
* Charging time 5 hours, working time 6 hours

Cable Reel
* Stainless steel Cable Reel size Φ 320 x 110mm
*20m Φ5.2mm fiberglass rod push cable (30m, 40m optional)

Carrying case
* ABS Engineering Carrying case: 520mmX 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Features and Benefits
* Self-levelling Waterproof camera with 2different camera skids can easily check all pipeline problem inside
* 10" HD LED monitor gives you a good quality image
* 6600mAH Li-ion battery supports the unit working more than 5 hours
* New Design DVR control box easy to record and replay video, photo, and sound, USB jack for keyboard support to typewrite real time any information you need

Packing List for pipe inspection camera system V10-1288DK

PART NO.	DESCRIPTION
1	Dia. 29mm CAMERA HEAD
2	CAMERA SKID1
3	CAMERA SKID2
4	SCREW DRIVE
5	CABLE REEL (20m)
6	TFT COLOR MONITOR (10 inch)
7	MONITOR SUNSHADE
8	DVR CONTROL BOX
9	LI-ION BATTE RY PACK (6600ma)
10	keyboard
11	CHARGER
12	1.5M LINK CABLE
13	remote controller
14	CARRYING CASE
15	user manuaL

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
