Vacuum Tester (ZJ45)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1set |
Pay Type: |
L/C,T/T |
Prod Model: |
ZJ45 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Machine Name: |
Vacuum Tester Zj45 |
After-Sales Service Provided: |
Engineers Service Machinery Overseas |
Warranty Period: |
One Year After Delivery |
Voltage: |
as Your Request |
CNC Or Not: |
Normal |
Color: |
as Your Request |
Product Description

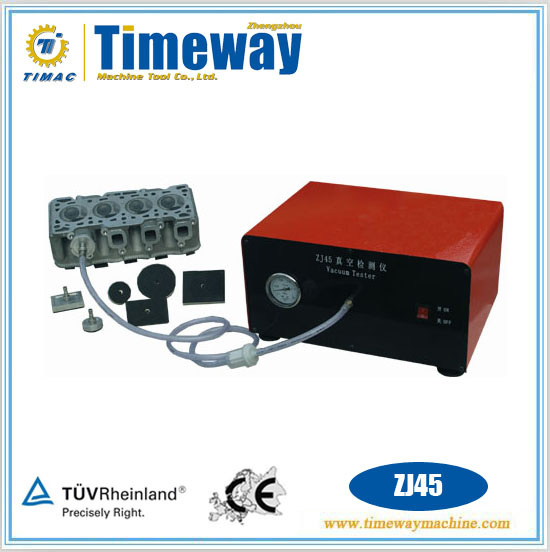

Vacuum Tester ZJ45
Features:ZJ45 Vacuum tester is a portable device for measuring the vacuum which is mainly used to test the seal level of engine valve and valve seat before or after rebuilding the cylinder head. It can be also applied to test other vacuum purpose.
The air tightness of cone face of engine valve and valve seat directly influence on the normal working of engine. Now ZJ45 can be used to measure and test, if the vacuum level is below 600 mbar, the valve and valve seat need to be repaired. When repairing, the valve grinder can be used to reface the cone of valve, also boring the valve seat with valve seat boring machine. To judge the valve and valve seat if reach the standard, you also can use this device to test after repair.
The unit is equipped with a vacuum pump. The quick-couplings makes it easy to connect and disconnect the adapters.
Operation:
Choose the suitable cupule according to the size of air inlet of cylinder head. Insert the pipe of cupule into the plug of vacuum tester tightly. Open switch, put the cupule tightly on the inlet, now, the meter will show the readout. If the value is over 600 mbar (0.6Kg), it means the good seal.
Parameter :Specification | ZJ45 |
Power supply | 220V/1PH;110V/PH |
Power | 100W |
Output | 50Hz-36L/Min,60Hz-45L/Min |
Vacuum level | 900mbar |

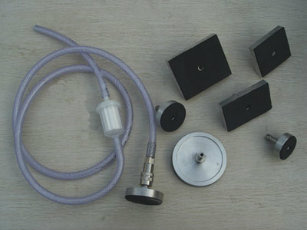

Standard Accessories:
