Cylinder Head and Block Surface Grinding Milling Machine Yg-1400
| Price: |
US $ 15000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union |

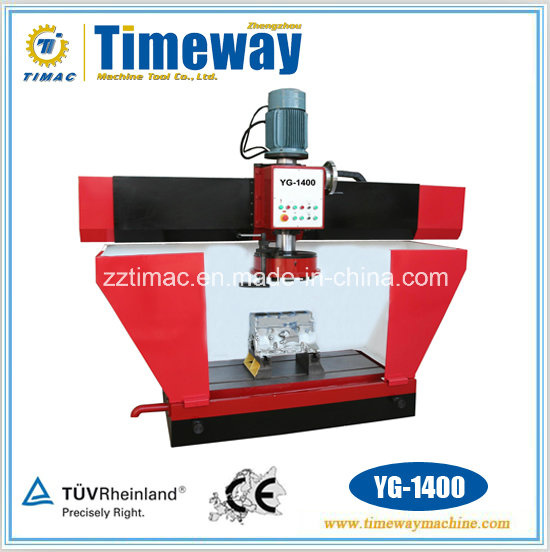

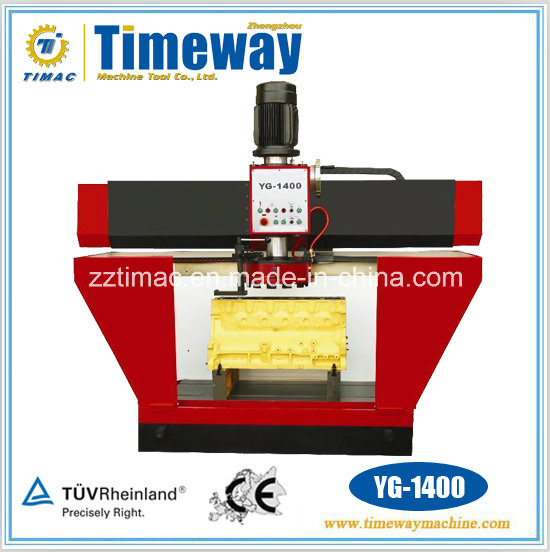

Cylinder Head & Block Surface Grinding Milling Machine (YG-1400)
Features:
The cylinder head and block surface machine, model YG-1400 is a medium size wet grinding machine which with its sturdy and well proportioned design offers a lot of advantages within small and medium size engine reconditioning as well as industrial grinding. The fact that the stability of the machine is constant regardless of the height of the item to be ground assures optimum stock removal and grinding result.
· Spindle motor and traverse motor are inverter motor (stepless speed) with easy operation and anti-vibration (resonance can be avoided);
· Motor with low vibration level;
· Feeding screw and traverse screw are ball types, with low damping, stable and durable;
· The slider guideway is designed with plastic-coated guide rails, providing good vibration absorption, strong wear resistance and high precision;
· Spindle sleeve is chrome plated and ground, with a bright and rust-proof surface;
· Integrated electric control modules, no - spark contacts, with safe and reliability;
· Spindle feeding is provided with braking device to avoid vibration, and permit a steady feeding;
· Separated circuits of water and electric, with safe and reliability, as well as chain sleeve for protection;
· Sheet metal with plastic coating, beautiful and durable surface;
· By using a magnetic chuck, available as extra equipment, the range of applications of the machine as an industrial grinding machine is widely extended.Technical Parameters:| Model | YG-1400 |
| Working table size | 1400x600 mm |
| Max. grinding length | 1400 mm |
| Max. grinding width | 400 mm |
| Max. height of work piece | 850 mm |
| Grinding wheel size | φ410 mm |
| Number of segments | 12 pcs |
| Vertical movement of wheelhead | 150 mm |
| Feed of wheelhead per graduation | 0.01 mm |
| Wheelhead traverse speeds | 0~3000 mm/min |
| Grinding wheel motor | 4 kw, frequency conversion control |
| 50 Hz, 960 rpm; 20~70Hz, 400~1340 rpm |
| Grinding wheel traverse | 0.75 kw |
| Coolant pump motor | 0.4 kw |
| Capacity of coolant tank | 140 L |
| Overall dimension(LxWxH) | 2670x1200x2450 mm |
| Packing dimension(LxWxH) | 2850x1300x2200 mm |
| N.W./G.W. | 3200/3600 kg |
| Prod Model: |
YG-1400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Rebuilding Machine: |
Cylinder Head & Block Surface Grinding Machine |
| Table Size: |
1400X600mm |
| Movement: |
Grinding Head Moving Type |
| Grinding Wheel Motor: |
4kw |
