| Prod Model: |
T8360, T8365 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brake Drum Boring Machine: |
Brake Drum Boring Machine |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Warranty Period: |
One Year After Delivery |
| CNC Or Not: |
Normal |
| Color: |
as Your Request |
| Voltage: |
as Your Request |
| Weight: |
650/750kg |
| Certification: |
CE |
| Type: |
Brake Drum Boring Machine |
Product Description

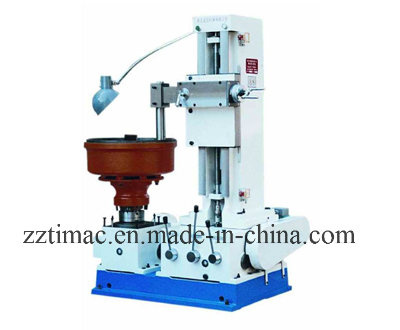

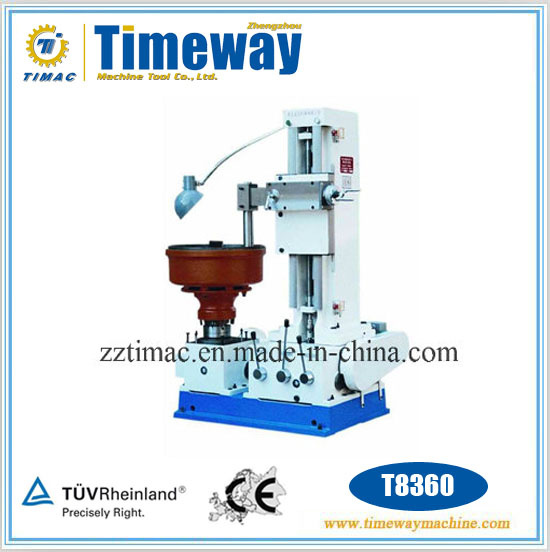

BRAKE DRUM BORING MACHINE
PART 1---Product DescriptionFeatures* The machine is suitable for processing the brake drum, brake shoe and brake plate of various domestic and foreign cars and sedans.
* Have the advantages of beautiful shape, rational structure, easy operating, good rigidity, high cutting speed, safe, reliability and multipurpose.
* The T8365A is better suitable for repairing/boring the brake drum and brake piece of large-or-medium-sized vehicle .
* In the accessories of T8365A , there are universal hub-heads, coupling plates and locating plates to assist the brake drum in position leaning on the retaining ledge, and the brake drum also can be bored depending on the hub-head in the brake drum.
| Model | Unit | T8358A | T8360A/T8360B | T8365A |
| Range of processing diameter | mm | 220-580 | 180-600 | 350-650 |
| Rotating speed of workpiece | r/min | 37, 50 | 27, 45, 70 | 30,45 |
| Working travel of slideboard | mm | 320 | 450 | 450 |
| Feed range | mm/r | 0.4- 0.07 (4 steps) | 0.4- 0.07 (4 steps) | 0.4- 0.07 (4 steps) |
| Motor | kw | 1.1 | 1.1 | 0.85/1.1 |
| Overall dimensions (LxWxH) | mm | 1000×820×1380 | 940×850×1415 | 930×600×1410 |
| Packing dimensions (LxWxH) | mm | 1050×900×1520 | 1150×950×1580 | 1200×1050×1650 |
| Weight | kg | 650/750 | 800/900 | 900/1000 |
PART 2 ---Our Service1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Part 3---Company Information "TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.
Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing
history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.
Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related
accessories&tools, etc.
ZHENGZHOU TIMEWAY MACHINE TOOL Co., Ltd. is a professional machine tool supplier.
Our factory is the joint-stock enterprise, has 50 years of machine tool development, and manufacturing history, is the largest machine tool manufacturer in central China, is the "National Torch Plan Key High-tech Enterprise", "China Industry Leading Enterprise", "China Machinery Industry 500 ", China's machine tool industry" well-brand Top Ten Enterprises ".
The factory occupies more than 500 acres, built a foundry, machining, heat treatment, assembly, painting, logistics and other domestic advanced production lines, with vertical machining centers, horizontal machining center, five-sided machining centers, large boring and milling machine, large German rail grinder, Zeiss coordinate measuring instrument, gear detector and laser interferometer and other advanced equipment, instruments and a total of more than 600 sets.
Our product mainly cover conventional lathe, CNC lathe, CNC oil country lathe, vertical lathe, milling machine, CNC machining center, drilling machines, grinding machines, shaping/slotting machines, sawing machines and related accessories & tools, etc.
With many years' experience in machine production and export, as well as skilled staff members, we believe we can supply more and more quality machines to clients from different countries and regions, and can make more and more friends globally.
Our exclusive mission: Supply clients with quality machines, competitive prices and reliable services!
Our top motto: Satisfy clients, satisfy ourselves!
