Test Bench for Automobile Generator & Starter

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Frame-type
Certification:	ISO
Condition:	New

Product Description

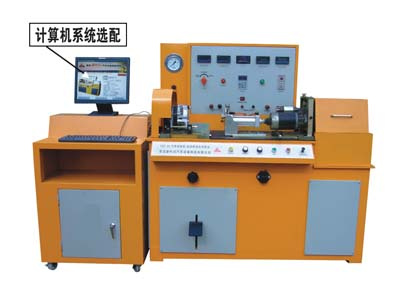

Integration Test Bench of Automobile Generator & Starter
1. Function Introduction
This test bench using variable frequency speed regulation and digital display is special electrical equipment used for testing large power automobile generator and starter and possesses high control sensitivity and strong controllability. Display instrument uses digital display mode, reads data directly and is electronic load module type, domestic first. This test bench is especially applicable for testing large vehicles generator and starter used for Bus Company and oil field etc. It is also matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models generators and starters.
2. Technical Parameter
* Input working voltage 380V AC 50HZ( three-phase four-wire)DC12V\24V or 48V
*Motor power: 7.5KW Frequency converter power: 7.5KW(three-phase AC)
*Speed adjustable range of generator: No load 0-12000r/min load 0-10000r/min
*Load mode: Electronic module type DA (0~200A) *Working current of starter: 0-2000A*Torque of starter: 0~200 N. M
*Air pressure setting: 0~1MPa (random adjustment)3. Applicable Scope
*Generator and starter of various large load carrying vehicles, passenger car and bus;
* Maximum test power of generator: 5.5KW
*Maximum test power of starter: 15KW
